Regal Rexnord RB3204 Century Fan and Blower Motor 2 HP 1800 RPM

Product Description

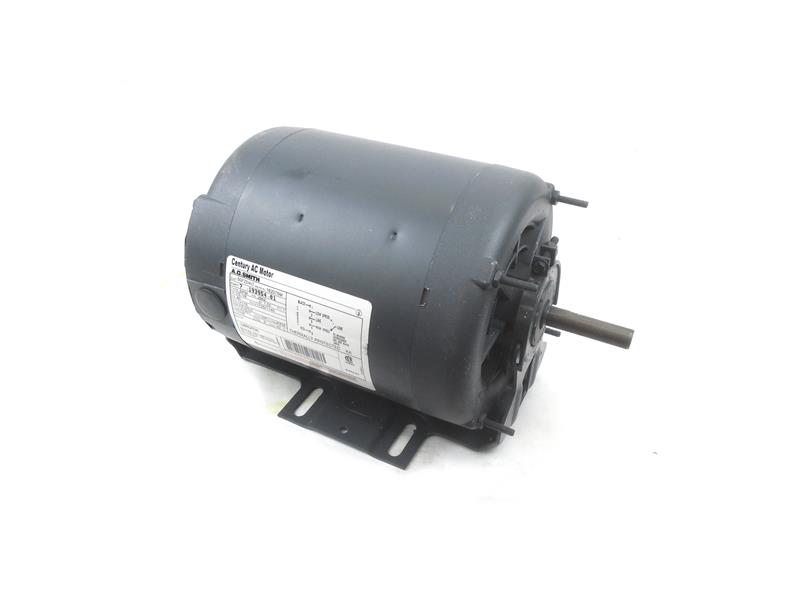

The Regal Rexnord RB3204 is a Century Fan and Blower Motor rated at 2 HP. This motor is designed for three-phase power usage and operates efficiently at 60 Hz. It runs at voltages of 208-230/460 with a speed of 1800 RPM. The motor features a sturdy 56H frame and is suitable for continuous duty applications.

• Keyed shaft for secure connections
• Designed for resilient base mounting
• Compatible with various industrial uses

Product Highlights

This motor is built for reliability and long-term service in demanding environments.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: RB3204

Technical Specifications

• Phase: 3
• Output HP: 2 HP
• Output KW: 1.5 kW
• Voltage: 208-230/460 V
• Speed: 1725 RPM
• Service Factor: 1.15
• Frame: 56H
• Enclosure: Open Enclosed
• Thermal Protection: No Protection
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 6.8/3.4 A
• Duty: Continuous
• Insulation Class: B
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Three Phase
• Starting Method: Across The Line
• Poles: 4
• Rotation: Reversible
• Mounting: Resilient Base
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 12.34 inches
• Frame Length: 7.19 inches
• Shaft Diameter: 0.625 inches
• Shaft Extension: 2 inches
• Packaged Length: 16.00 inches
• Packaged Width: 9.00 inches
• Packaged Height: 8.00 inches
