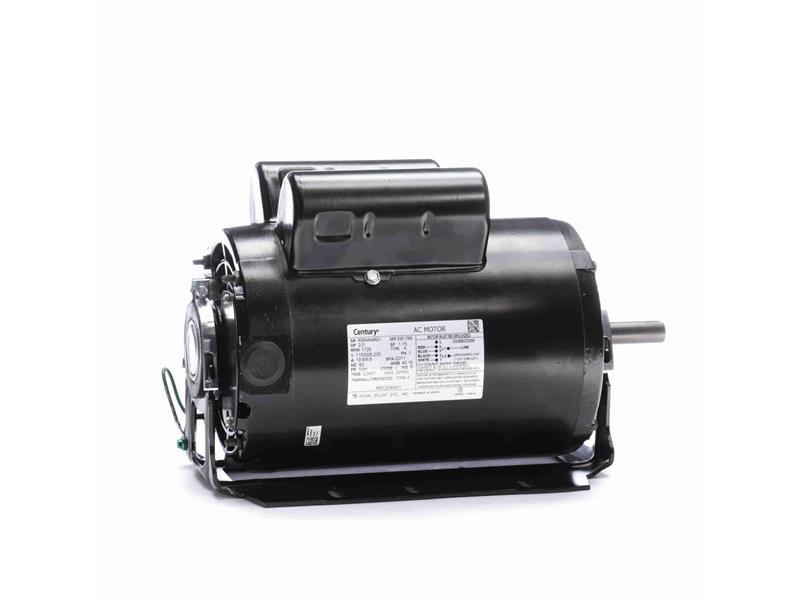

Regal Rexnord RB1204A Electric Motor 2 HP

Product Description

The Regal Rexnord RB1204A is a single-phase electric motor with a power output of two horsepower. This motor operates at a speed of one thousand seven hundred twenty-five RPM and is designed for continuous duty applications. It features an open enclosure with automatic thermal protection and uses ball bearings on the drive end for smooth performance.

• Operates at one thousand seven hundred twenty-five RPM
• Includes automatic thermal protection
• CSA certified for safety and compliance

Product Highlights

This electric motor is ideal for various applications where reliable and consistent performance is required.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: RB1204A

Technical Specifications

• Phase: 1
• Output Power: 2 HP (1.5 kW)
• Input Voltage: 115/208-230 V
• Speed: 1725 RPM
• Service Factor: 1.15
• Frame Size: 56H
• Enclosure Type: Open Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 24.6/12.3 A
• Duty Cycle: Continuous
• Insulation Class: B
• UL Certification: No
• CSA Certification: Yes
• Number of Speeds: 1
• Rotation: Reversible
• Mounting Type: Resil Base
• Drive End Bearing Type: Ball
• Shaft Diameter: 0.625 inches
• Shaft Extension: 5/8 KEY inches
