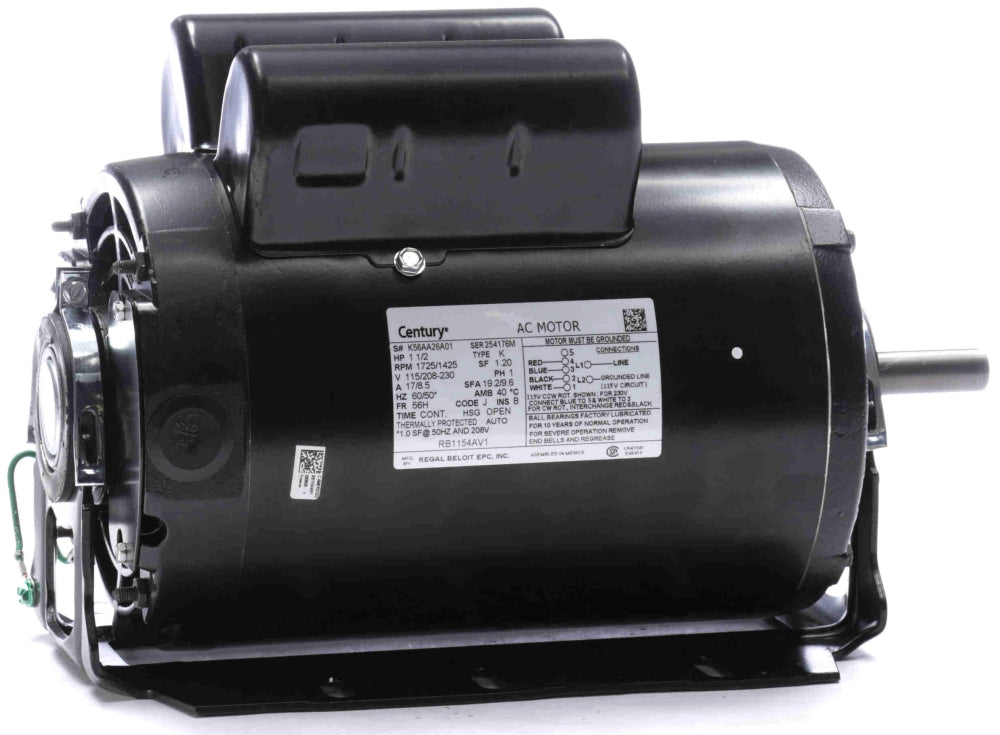

Regal Rexnord RB1154A Century Motors Fan and Blower Motor 1.5 HP

Product Description

The Regal Rexnord RB1154A is a fan and blower motor designed specifically for industrial applications. This electric motor provides a power output of one point five horsepower and operates at voltages of one hundred fifteen and two hundred eight to two hundred thirty volts. With a speed capability of up to one thousand seven hundred twenty-five RPM, it is ideal for various tasks such as HVAC systems, conveyors, and pumps. The motor features a rolled steel frame for durability and corrosion resistance, along with a compact design for seamless integration into different settings.

• 1.5 horsepower output for demanding applications
• Operates at 115/208-230 volts for flexible usage
• Includes a reversible resilient base mount

Product Highlights

This motor is built to last with robust materials and versatile features.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: RB1154A

Technical Specifications

• Power Rating: 1.5 HP
• Voltage Rating: 115/208-230 Volt AC 1-Phase
• Frequency Rating: 50/60 Hertz
• Speed Rating: 1725/1425 RPM
• Amperage (FLA): 19.2/9.6 Amp
• NEMA Frame Size: 56H
• Enclosure Type: Open Enclosed
• Thermal Protection: Automatic Overload Protection
• Mounting Type: Resilient Base
• Rotation: Reversible
• Material: Rolled Steel
• Shaft Type: Keyed
• Service Factor: 1.2
• Insulation Class: B
• Bearing Type: Ball (Drive End/Opposite Drive End)
• Number of Poles: 4
• Ambient Temperature Rating: 40 °C
• Type: Capacitor Start, Capacitor Run
