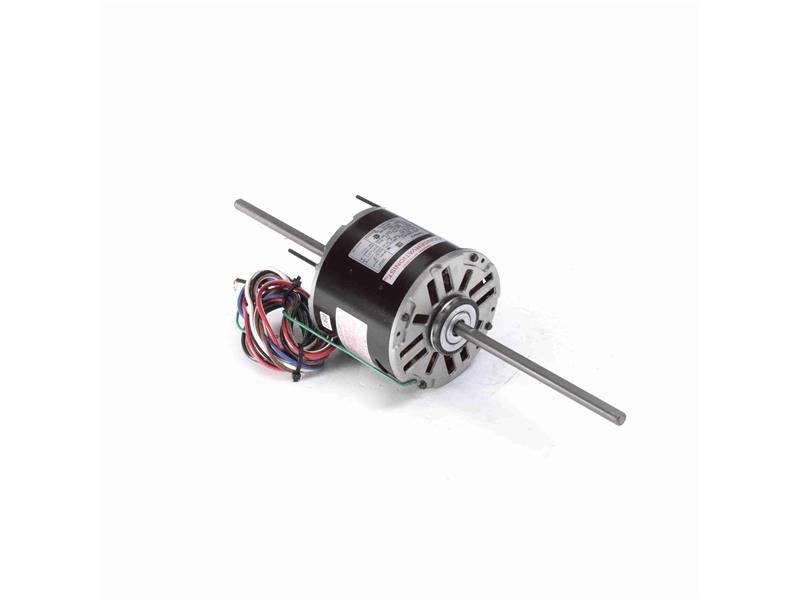

REGAL REXNORD RAL1026 Fan Coil and Air Conditioner Motor

Product Description

The REGAL REXNORD RAL1026 is a single-phase, three-speed motor. It is suitable for fan coil, room air conditioner, and blower applications. This motor, with a frame size of 48Y, offers a semi-enclosed design that includes air-over cooling and automatic thermal protection. The motor operates at one hundred fifteen volts and sixty hertz, delivering one-fourth horsepower at one thousand seventy-five RPM.

• Designed for fan coil, room air conditioner, and blower applications
• Semi-enclosed design with air-over cooling
• Operates at one hundred fifteen volts, sixty hertz

Product Highlights

The motor is UL Recognized and CSA certified, ensuring compliance with safety standards.

Product Information

Standard Information

• Country of Origin: Mexico
• UPC: 786674071873

Technical Specifications

• Phase: 1
• Output HP: 1/4 HP
• Voltage: 115 V
• Speed: 1075 RPM
• Service Factor: 1
• Frame: 48Y
• Enclosure: Semi Enclosed
• Thermal Protection: Automatic
