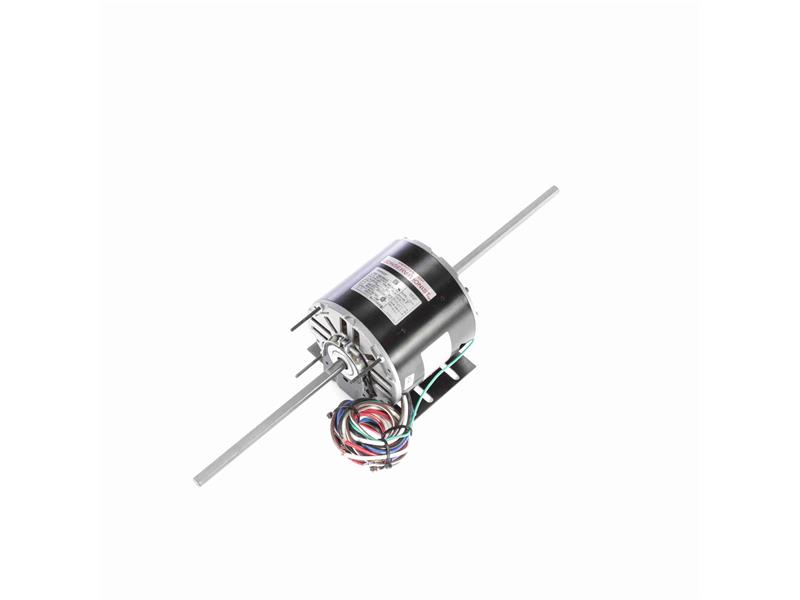

Regal Rexnord RA1056WB Fan Coil Air Conditioner Motor

Product Description

The Regal Rexnord RA1056WB is a single-phase, three-speed motor suitable for fan coil, room air conditioner, and blower applications. It operates efficiently at 208-230V and 60 Hz, providing reliable performance at a speed of 1075 RPM. This motor has a semi-enclosed design and features automatic thermal protection, ensuring durability and safety during operation.

• Rated for 1/2 HP and operates at 1075 RPM.
• Includes a 48Y frame and class B insulation for effective cooling.
• Automatic thermal protection to prevent overheating.

Product Highlights

Designed for versatility, the RA1056WB motor is perfect for various air conditioning systems, delivering dependable power and efficiency.

Product Information

Standard Information

• Country of Origin: India
• Weight: 19.00 LB

Technical Specifications

• Phase: 1
• Output HP: 1/2 HP
• Input Voltage: 208-230 V
• Speed: 1075 RPM
• Service Factor: 1.0
• Frame Size: 48Y
• Enclosure: Semi Enclosed
• Thermal Protection: Automatic
• Efficiency: 68%
• Ambient Temperature: 60 °C
• Frequency: 60 Hz
• Current: 2.7 A
• Insulation Class: B
• Number of Speeds: 3
• Mounting Type: Resilient Base
• Shaft Diameter: 0.500 in
• Overall Length: 21.74 in
• Frame Length: 4.50 in
