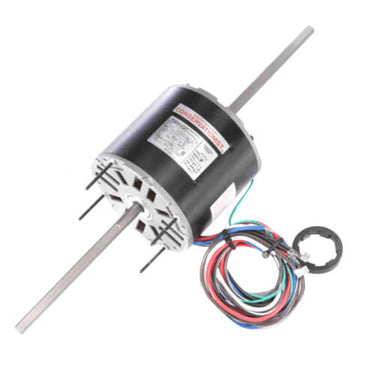

Regal Rexnord RA1056 Century Fan Coil & Air Conditioner Motor 1/2 HP 208-230 V 1075 RPM 3 Speed 48 Frame SEMI ENCL

Product Description

The Regal Rexnord RA1056 Century Fan Coil & Air Conditioner Motor is a 1/2 HP motor designed for fan coil, room air conditioner, and blower applications. This motor operates at 208-230 V, 60 Hz, and 1075 RPM with 3 speeds. It features a 48 frame, semi-enclosed design, and automatic thermal protection.

• Fan Coil - Room Air Conditioner - Blower Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)

Product Highlights

This Century motor is suitable for various air conditioning and blower applications, offering multiple speed options and reliable performance.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: RA1056
• Country of Origin: India

Technical Specifications

• Phase: 1
• Output HP: 1/2 Hp
• Output KW: 0.37 kW
• Voltage: 208-230 V
• Speed: 1075 rpm
• Service Factor: 1.0
• Frame: 48
• Enclosure: Semi Enclosed
• Thermal Protection: Automatic
• Efficiency: 67.6 %
• Ambient Temperature: 60 °C
• Frequency: 60 Hz
• Current: 2.7 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Counterclockwise Lead End
• Mounting: Resilient Ring/Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 20.00 in
• Frame Length: 4.50 in
• Shaft Diameter: 0.500 in
