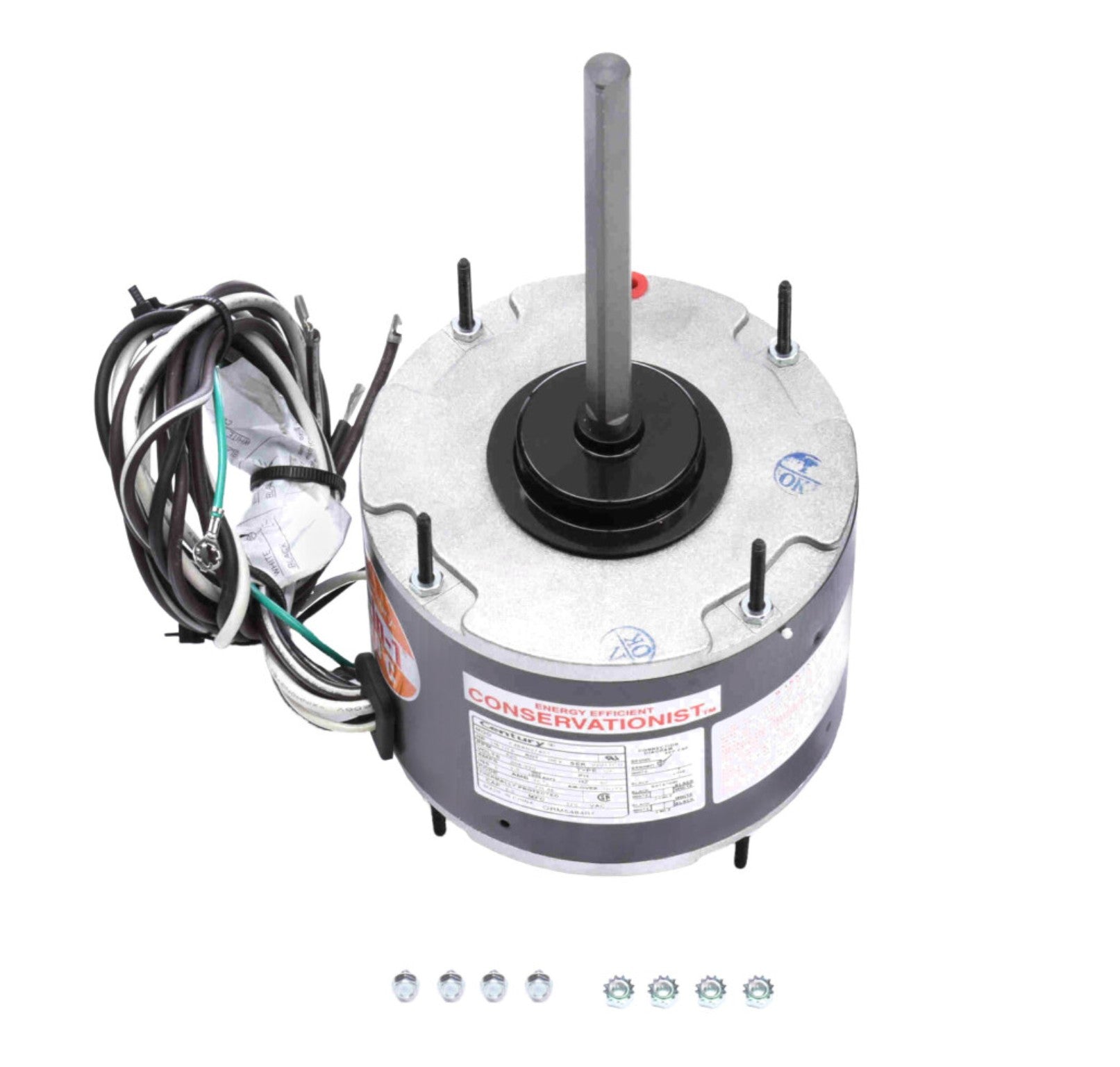

Regal Rexnord ORM5484BF Century 4-In-1 Condenser Fan Motor 1/8-1/15 HP 48 Frame

Product Description

The Regal Rexnord ORM5484BF Century 4-in-1 condenser fan motor operates efficiently within a range of applications. This motor features a five point six inch diameter and is designed with a forty-eight frame suitable for various HVAC systems. It is a permanent split capacitor motor that requires a five Mfd-370 Volts capacitor, which is not included. This model is thermally protected, ensuring safe operation under continuous use. It includes an enclosed air design with class F insulation, and can handle ambient temperatures up to seventy degrees Celsius.

• Five point six inch diameter - forty-eight frame
• Thermally protected for enhanced safety
• Class F insulation supports high ambient temperatures

Product Highlights

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: ORM5484BF

Technical Specifications

• Phase: 1
• Output HP: 1/8-1/15 Hp
• Output KW: 0.10 kW
• Voltage: 208-230 V
• Speed: 825 rpm
• Service Factor: 1
• Frame: 48
• Enclosure: Totally Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Current: 1.0 A
• Duty: Air Over
• Insulation Class: F
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 8
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Double Flat
• Overall Length: 11.62 in
• Frame Length: 3.62 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.5 in
• Packaged Length: 13.78 in
• Packaged Width: 6.42 in
• Packaged Height: 6.81 in
