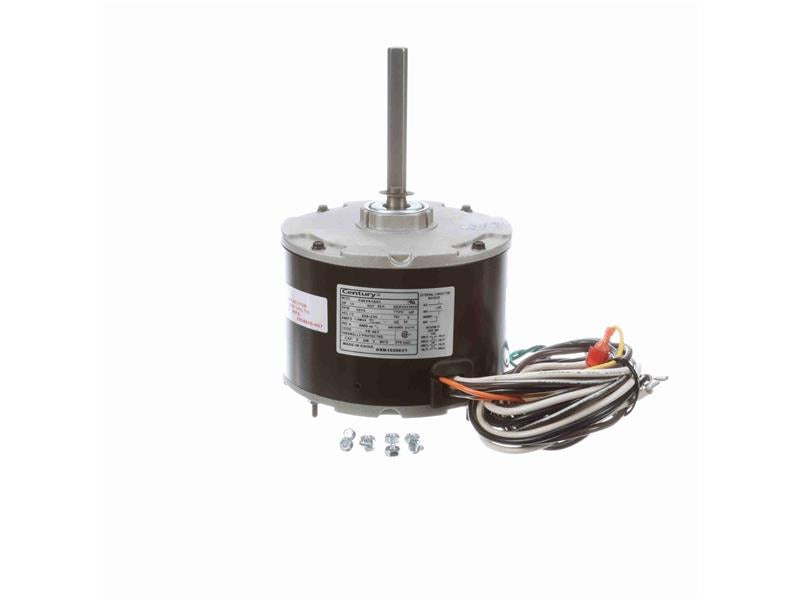

Regal Rexnord ORM10206V1 Replacement Motor 1/5 Hp 1075 Rpm

Product Description

The REGAL REXNORD ORM10206V1 is a single-phase OEM replacement motor rated at 1/5 HP and 1,075 RPM. It operates on 208-230 volts at 60 Hz and is built to a 48 frame standard with a Totally Enclosed Air Over (TEAO) enclosure. This motor is designed for direct OEM-style replacement in applications where the original unit must be matched closely on frame size, voltage, speed, and enclosure type. HVAC technicians and equipment service professionals are the primary installers. The single-speed design and enclosed construction make it suitable for use in demanding airflow environments where motor protection from airborne contaminants is required.

This motor is suited for residential and light commercial HVAC equipment that calls for a 48 frame, 1,075 RPM motor on a 208-230 volt single-phase circuit. Typical applications include condenser fan assemblies and other forced-air system components where a TEAO enclosure is specified. The 1/5 HP output matches common OEM requirements for smaller fan motor replacements in split-system and packaged HVAC units. Verify frame dimensions, shaft specifications, and rotation direction against the original motor before installation.

Key Features

• 1/5 HP output rated for single-phase 208-230 volt operation at 60 Hz
• 1,075 RPM operating speed matches common OEM fan motor specifications
• 48 frame construction for direct dimensional compatibility with OEM mounts
• Totally Enclosed Air Over (TEAO) enclosure protects against airborne debris and moisture
• Single-speed design simplifies drop-in replacement in existing control wiring setups

Compatibility

Designed as an OEM-style replacement motor for single-phase HVAC systems requiring a 48 frame, 1,075 RPM, 208-230 volt motor with a TEAO enclosure rating.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the unit before removing the original motor. Confirm shaft diameter, shaft length, rotation direction, and mounting configuration match the replacement unit before proceeding. Follow applicable NEC guidelines for motor branch circuit wiring and overload protection.

Technical Specifications

• Horsepower: 1/5 HP
• Voltage: 208-230 volts
• Frequency: 60 Hz
• Phase: Single Phase
• Speed: 1,075 RPM
• Number of Speeds: 1
• Frame: 48
• Enclosure: TEAO (Totally Enclosed Air Over)
• Weight: 10.01 pounds

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: ORM10206V1
