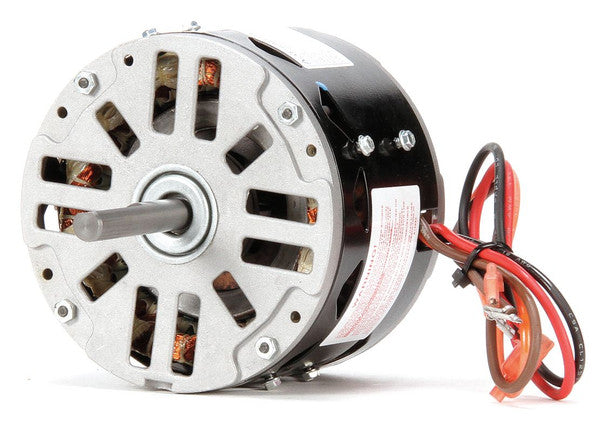

REGAL REXNORD ORM1008V1 - Permanent Split Capacitor Motor

Product Description

The REGAL REXNORD ORM1008V1 is a permanent split capacitor motor designed for use with a 208-230 Vac single-phase power supply. This motor provides 1/8 horsepower at two selectable speeds. It operates at a rated speed of 825 RPM with a current draw of 1.4 Amps. The motor has a 48Y Nema frame size and a semi-enclosed design, making it versatile for various applications.

• Operates on 208-230 Vac single-phase power.
• Provides two-speed operation at 825 RPM.
• Features a 1/2 x 2 5/8 shaft with counter-clockwise lead end rotation.

Product Highlights

This motor is ideal for applications that require a compact, two-speed motor with moderate power output, ensuring reliability and efficiency in performance.

Product Information

Standard Information

• Brand: REGAL REXNORD
• MPN: ORM1008V1

Technical Specifications

• Horsepower: 1/8 HP
• Voltage: 208-230 Vac
• Phase: Single Phase
• RPM: 825
• Speed: 2 Speed
• Amps: 1.4 Amps
• Frame Size: 48Y Nema Frame Size
• Enclosure: Semi Enclosed
• Bearing: Sleeve Bearing
• Shaft: 1/2 x 2 5/8
• Rotation: CCW Lead End Rotation
• Motor Type: Permanent Split Capacitor Motor
