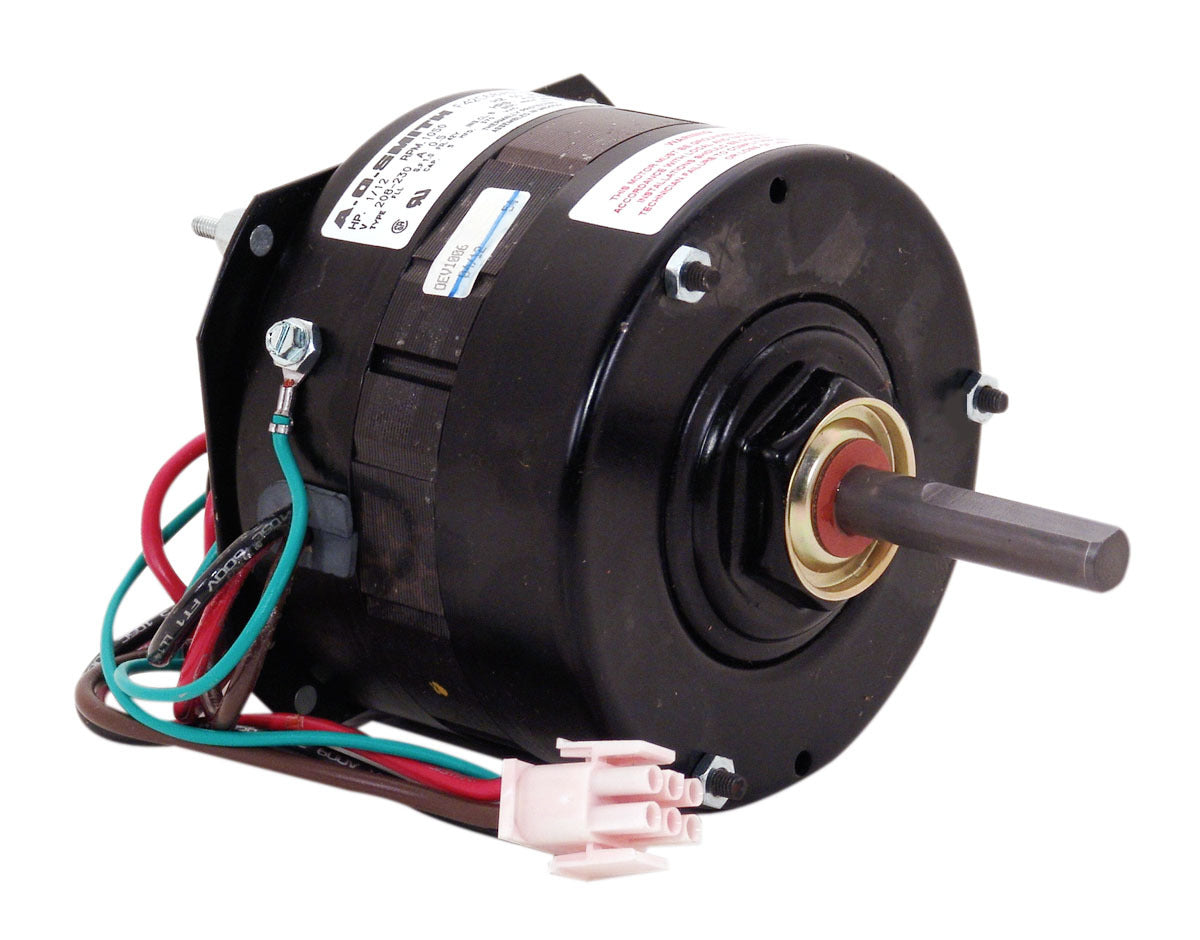

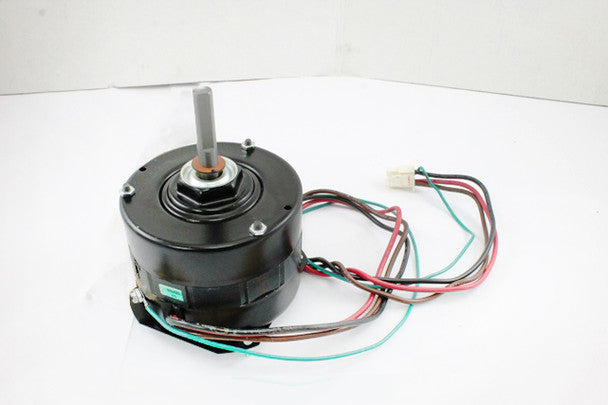

REGAL REXNORD OEV1006 - 1/12 HP Motor - 208-230V - Replacement S1-024-40889-000

Product Description

The Regal Rexnord OEV1006 is a single-phase motor with a power rating of 1/12 horsepower, built for limited space applications. It runs on 208-230 volts and has a speed of 1100 RPM. The motor is equipped with a 0.500-inch diameter shaft that is 2.800 inches long, making it suitable for various machinery needs.

• Ideal for compact installations.
• Direct replacement for S1-024-40889-000.
• Supports maximum ambient temperature of 40 degrees Celsius.

Product Highlights

This motor features a Totally Enclosed Air Over (TEAO) design, enhancing durability in demanding environments. Its insulation class is B, ensuring reliable efficiency.

Product Information

Standard Information

• Brand: Regal Rexnord
• Model Number: OEV1006

Technical Specifications

• Frame Size: 42Y
• Phase: Single
• Amperage: 0.5
• Shaft Diameter: 0.500 inches
• Shaft Length: 2.800 inches
• Insulation Class: B
• Max Ambient Temperature: 40 degrees Celsius
• Voltage: 208-230V
• RPM: 1100
