Regal Rexnord M1145123.00 Motor 1/6 hp (30 RPM, 58:1) M1145123.00

Product Description

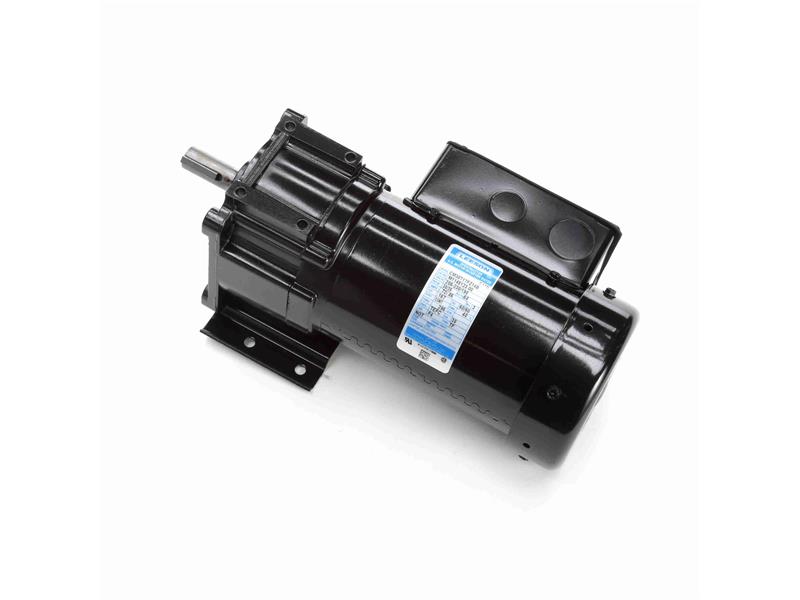

Regal Rexnord M1145123.00 is a Leeson Electric Co geared motor rated 1/6 hp that produces a 30 RPM output through a 58:1 gearbox. The unit is inverter rated for VFD operation, features a 38 TEFC (totally enclosed fan cooled) enclosure, and operates on 208-230 V, three-phase, 60 Hz power. It provides 295 lb-in of torque for low-speed, high-torque industrial applications such as conveyors and mixers.

• 1/6 hp geared motor delivering 30 RPM output with a 58:1 gear ratio and 295 lb-in torque.
• Inverter rated for variable-frequency drive use; nameplate/model CM38T17FZ14B.P240.
• 38 TEFC enclosure, 208-230 V three-phase, 60 Hz operation; approximate weight 14.00 lb.

Product Highlights

1/6 hp geared motor; 30 RPM output; 58:1 ratio; 295 lb-in torque; 208-230 V 3-phase; 38 TEFC; inverter rated.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: M1145123.00

Technical Specifications

• Manufacturer: Regal Rexnord (Leeson Electric Co)
• Part Number: M1145123.00
• Category: Motors/Gearbox/Clutch
• Subcategory: Motor
• Horsepower: 1/6 hp
• Output Speed: 30 RPM
• Enclosure: 38 TEFC (Totally Enclosed Fan Cooled)
• Input Voltage: 208-230 V
• Phase: 3 phase
• Frequency: 60 Hz
• Model/Nameplate: CM38T17FZ14B.P240
• Gear Ratio: 58:1
• Inverter Rated: Yes
• Torque: 295 lb-in
• Weight: 14.00 lb
