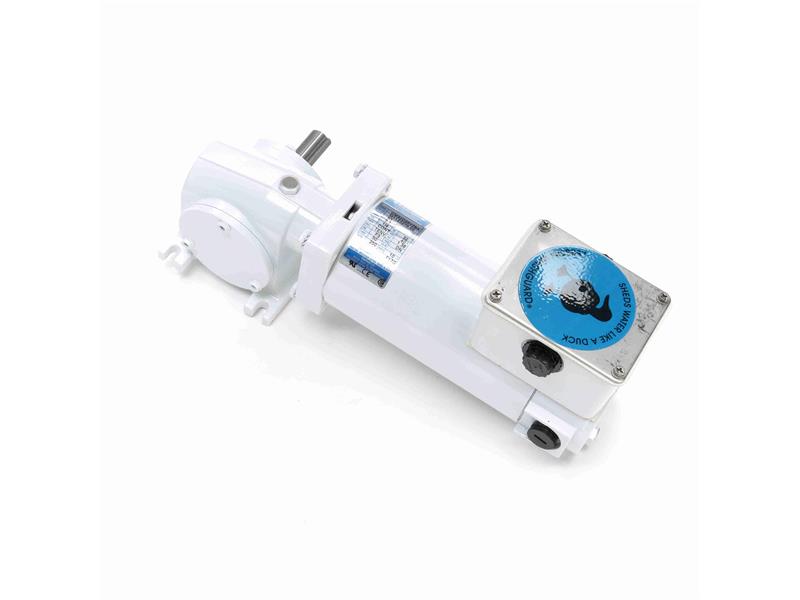

Regal Rexnord M1125279.00 Right-Angle Gearmotor 1/4 HP (Right-Angle)

Product Description

Regal Rexnord M1125279.00 is a right-angle gearmotor assembly rated 1/4 HP and designed for 90 V DC operation. It provides a 10:1 gear ratio yielding a 250 RPM output and 50 lb-in torque for continuous duty applications. The unit features a totally enclosed non-ventilated (TENV) construction with washdown/epoxy corrosion resistance, stainless hardware, a 5/8-inch keyed output shaft, and permanent oil-bath lubrication in a worm-type gearbox.

• Right-angle gearmotor, 10:1 gear ratio, 250 RPM output, 50 lb-in torque, 1/4 HP
• Washdown/epoxy construction with 303 stainless steel gearbox output shaft, stainless hardware, IP55 features and sealed conduit box
• 90 V DC input, continuous duty rating, permanent oil-bath lubrication, worm-type gearing

Product Highlights

Right-angle 1/4 HP DC gearmotor; 10:1 ratio, 250 RPM; 5/8-inch keyed stainless output shaft; washdown/epoxy protection; TENV enclosure.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: M1125279.00

Technical Specifications

• Brand: Regal Rexnord
• Manufacturer Part Number: M1125279.00
• Model/Spec Number: M32D25VZ8
• Product Type: Right-angle gearmotor
• Power: 1/4 HP (0.19 kW)
• Input Voltage: 90 V DC
• Full Load Current: 3.7 A
• Gear Ratio: 10:1
• Output Speed: 250 RPM
• Output Torque: 50 lb-in
• Overhung Load: 235 lb
• Duty Rating: Continuous duty
• Enclosure: TENV (Totally enclosed non-ventilated)
• IP Rating: IP55
• Output Shaft: 5/8-inch keyed with flat; 303 stainless steel gearbox output shaft
• Gear Type: Worm-type right-angle gearing (hardened steel worm, bronze worm wheel)
• Lubrication: Permanent oil-bath lubrication
• Gear Housing Material: Precision machined aluminum
• Hardware Material: Stainless steel hardware
• Conduit Box: Cast conduit box with threaded conduit holes and nitrile gaskets; 304 stainless steel conduit box cover
• Vapor Vent: One-way stainless steel vapor vent
• Seals and Gaskets: Sealed machined fits, nitrile gaskets, O-rings under threaded brush covers
• Weight: 17.00 lbs
• HS Code: 8501.32.2000
• UPC: 691720346204
