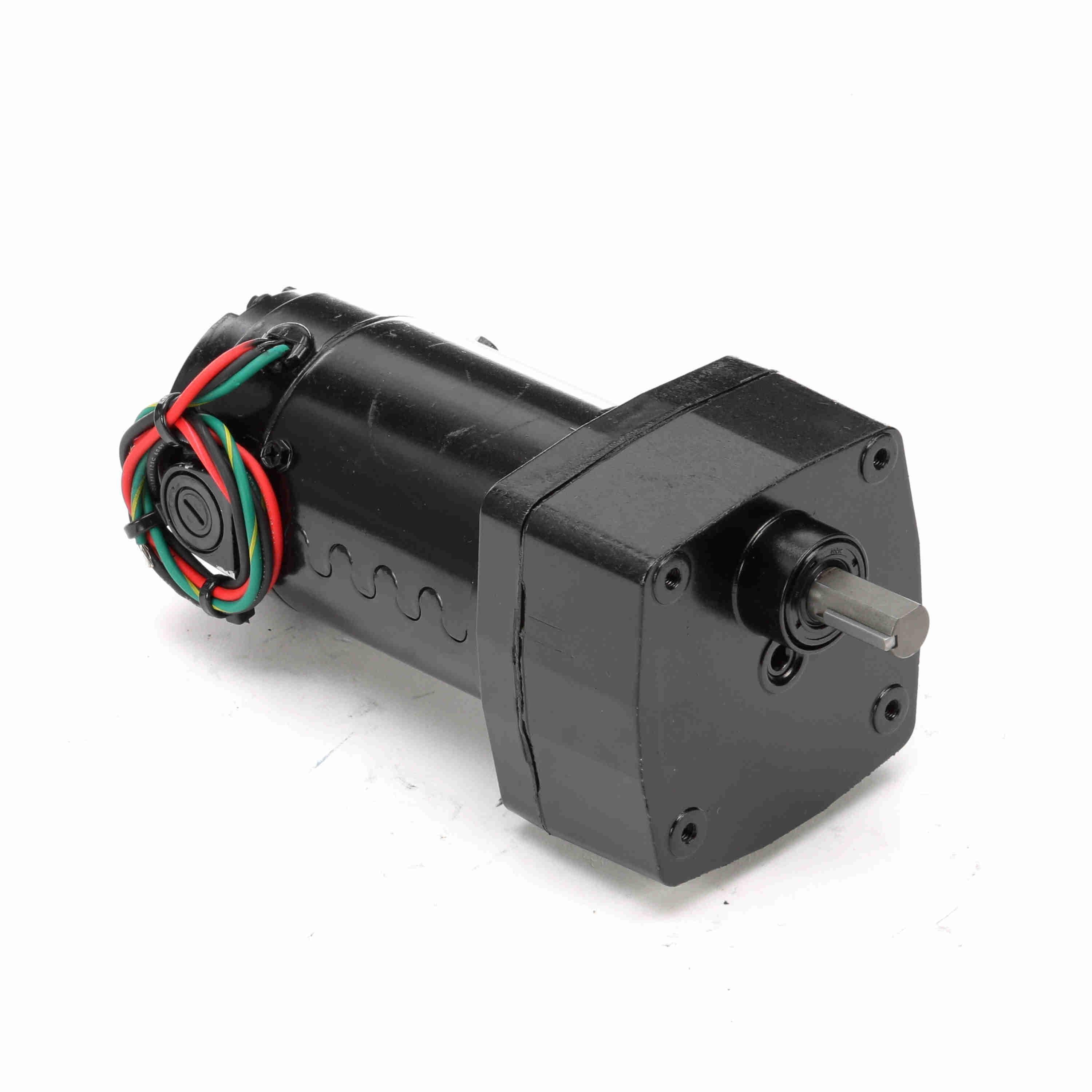

Regal Rexnord M1125006.00 Leeson PZ Series Parallel Gearmotor 1/17 HP (Any Angle) 985.630

Product Description

Regal Rexnord M1125006.00 is a Leeson PZ Series parallel-shaft gearmotor rated 90 VDC and 1/17 HP, delivering 300 rpm and 10 in-lb of constant torque. The SCR-rated permanent magnet DC unit is matched for continuous duty across a wide speed range and uses a 6:1 helical/spur geartrain. It features a 1/2 in keyed output shaft, needle-bearing support, permanent semi-fluid grease lubrication, and a totally enclosed nonvented steel housing.

• SCR-rated permanent magnet DC motor matched for continuous duty; constant torque through a 60:1 speed range.
• 6:1 helical/spur geartrain with 1/2 in keyed output shaft, 10 in-lb torque, and 180 lb overhung load capacity.
• Totally enclosed nonvented (TENV) steel housing, Class F insulation, rated 90 VDC and 0.8 A full load at 40°C ambient.

Product Highlights

PZ Series parallel shaft gearmotor — 90 VDC, 1/17 HP, 300 rpm, 6:1 ratio, 1/2 in keyed shaft

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: M1125006.00

Technical Specifications

• Brand: Regal Rexnord
• Manufacturer: Regal Rexnord Gearmotors
• Manufacturer Part Number: M1125006.00
• Model/Spec Number: 985.630
• Alternative Part Number: 985.630H
• Series: PZ Series
• Motor Type: Permanent magnet DC
• Control Compatibility: SCR-rated (full-wave unfiltered SCR adjustable speed control)
• Design: Parallel shaft
• Horsepower: 1/17 hp
• Output Power (kW): 0.04
• Input Voltage: 90 VDC
• Full Load Amperage: 0.80 A
• Maximum Speed: 300 rpm
• Gear Ratio: 6:1
• Gear Type: Helical/Spur
• Torque: 10 in-lb
• Shaft Diameter: 1/2 in
• Shaft Length: 1.56 in
• Output Shaft: 1/2 in keyed
• Overhung Load Capacity: 180 lb
• Enclosure: Totally enclosed nonvented (TENV)
• Insulation Class: Class F
• Ambient Temperature Rating: 40 deg C
• Mounting: Suitable for mounting at any angle; special mount options available
• Housing Material: Steel
• Lubrication: Permanent semi-fluid grease
• Output Shaft Bearing: Needle bearings on output shafts
• Dimensions (manufacturer listed): 8.46 in L x 3.75 in W
• Certifications: CSA certified; CE certified; UL listed
