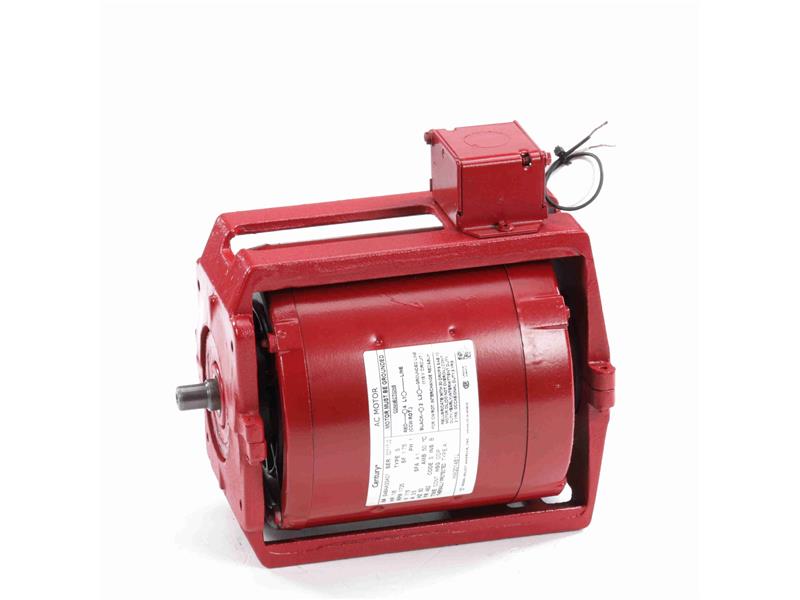

REGAL REXNORD HW2014B1L Circulator Pump Motor 1/6 HP

Product Description

The REGAL REXNORD HW2014B1L is a single-phase circulator pump motor that operates efficiently at 115V and 60 Hz. It delivers 1/6 HP at a speed of 1725 RPM, making it suitable for various applications. The motor has an open drip-proof enclosure, ensuring reliability in different environments.

• Single-phase operation
• Continuous duty with thermal protection
• Durable design with a resilient base

Product Highlights

This motor is designed for continuous operation and is equipped with automatic thermal protection to prevent overheating.

Product Information

Standard Information

• Brand: REGAL REXNORD
• MPN: HW2014B1L

Technical Specifications

• Phase: 1
• Output HP: 1/6 HP
• Voltage: 115 V
• Speed: 1725 RPM
• Service Factor: 1.75
• Frame: 48Z
• Enclosure: Open Drip Proof
• Thermal Protection: Automatic
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Current: 3.5 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Split Phase
• Starting Method: Across The Line
• Poles: 4
• Rotation: Counterclockwise
• Mounting: Resilient Base
• Drive End Bearing: Sleeve
• Overall Length: 8.29 in
• Frame Length: 4.34 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 0.83 in
