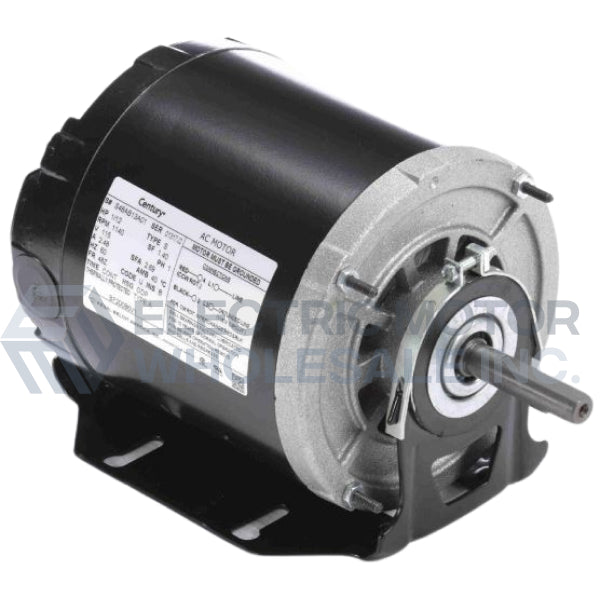

REGAL REXNORD GF2024D Motor - 1/4 HP, 1725 RPM, 48 Frame ODP

Product Description

The REGAL REXNORD GF2024D is a split-phase motor designed for HVAC and two-speed applications. This motor delivers a power output of one-fourth horsepower at a speed of seventeen hundred twenty-five RPM. It operates at sixty hertz and supports dual voltages of one hundred fifteen and two hundred eight to two hundred thirty volts.

• Rated for continuous duty.
• Includes a resilient base for easy mounting.
• Ideal for HVAC systems and two-speed applications.

Product Highlights

This motor features a 48 NEMA frame size and comes with an Open Drip Proof (ODP) enclosure, ensuring durability and reliability in various environments.

Product Information

Standard Information

• Application: HVAC, Two-Speed
• Output HP: 1/4

Technical Specifications

• Output KW: 0.19
• Output RPM: 1725
• Frame Size NEMA: 48
• Voltage: 115/208-230
• Frequency (Hz): 60
• Service Factor: 1.35
• Enclosure NEMA: ODP
• Mount NEMA: Resilient Base
• Mount Arrangement: F1
• Electrical Type: Split-Phase
• Thermal Protection: Automatic
• Phase: 1-Phase
• Manufactured Origin: Non-USA
• Weight: 14 lbs
