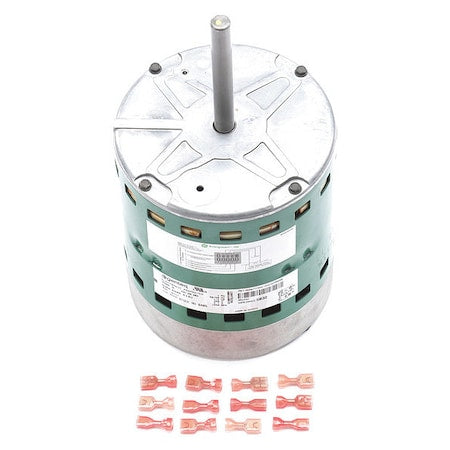

Product Description
Regal Rexnord - Genteq 6405 motor offers a powerful 1/2 horsepower and operates at 460V with 5 speeds. This motor is ideal for HVAC applications, providing industrial-grade performance and reliability in demanding environments. Its robust design ensures long-lasting use, trusted by professionals.
- 1/2 horsepower motor
- Operates at 460V
- 5-speed settings for versatility
Product Highlights
Powerful motor with multiple speed settings suitable for HVAC tasks. Reliable and durable for long-term use.
Product Information
Standard Information
-
Brand: Regal Rexnord - Genteq
-
Item Number: 6405
Technical Specifications
-
HP: 1/2
-
Hz: 60 Hz
-
Duty: Continuous
-
Item: Direct Drive Blower Motor
-
Frame: 48
-
Phase: Single
-
Weight: 14 lb
-
Voltage: 460V AC
-
Includes: Belly Band
-
Body Dia.: 5 5/8 in
-
RPM Range: 1,001-1,100
-
Duty Cycle: Continuous
-
Ins. Class: B
-
Shaft Dia.: 1/2 in
-
Application: Condenser or Evaporator Fan Motor
-
Lead Length: 42 in
-
Motor Design: ECM
-
Shaft Length: 3 15/16 in
-
Nameplate RPM: 1,075
-
No. of Speeds: 5
-
Stud Quantity: 4
-
Usable @ 200V: No
-
Usable @ 208V: No
-
Full Load Amps: 2.0
-
Motor Bearings: Ball
-
Mounting Holes: 4
-
Overall Length: 10 1/2 in
-
Bolt Circle Dia.: 5 3/8 in
-
Number of Shafts: 1
-
Length Less Shaft: 6 5/8 in
-
Motor Application: HVAC/R
-
Capacitor Required: No
-
Max. Ambient Temp.: 40 Degrees C
-
Motor Shaft Design: Flat
-
Motor Mounting Type: Face
-
Motor Frame Material: Steel
-
Motor Service Factor: 1
-
Motor Shaft Rotation: CWSE
-
Motor Sub Application: Direct Drive Fan/Blower
-
Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
-
Motor Enclosure Design: Open Air-Over
-
Motor Mounting Position: Vertical Shaft Down
-
Motor Thermal Protection: None
-
Manufacturers Warranty Length: 1 yr
-
Country of Origin (subject to change): Mexico
