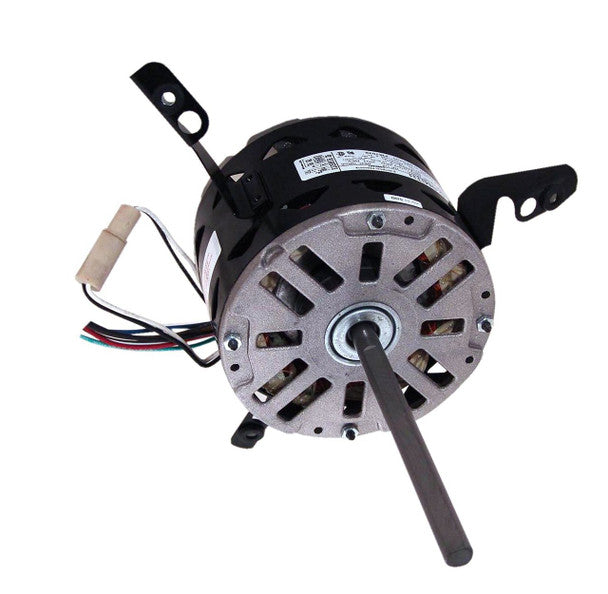

REGAL REXNORD FML1036 Fan Coil and Air Conditioner Motor

Product Description

The REGAL REXNORD FML1036 is a single-phase three-speed electric motor specifically built for fan coil and air conditioner applications. This motor operates on a voltage of one hundred fifteen volts and a frequency of sixty hertz. It achieves a speed of one thousand seventy-five RPM while delivering a power output of one-third horsepower.

• Designed for fan coil and air conditioner applications.
• Operates at one hundred fifteen volts, sixty hertz, and one thousand seventy-five RPM.
• Features a permanent split capacitor for efficient performance.

Product Highlights

This motor is crafted using rolled steel and features an open air over enclosure, ensuring durability and reliability in various conditions.

Product Information

Standard Information

• Country of Origin: Mexico
• Weight: 12.40 LB

Technical Specifications

• MPN: FML1036
• Phase: 1
• Output Power: 1/3 HP (0.25 kW)
• Voltage: 115 V
• Speed: 1075 RPM
• Frequency: 60 Hz
• Current: 6.40 A
• Number of Speeds: 3
• Poles: 6
• Enclosure: Open Air Over
• Frame: 48Y
• Service Factor: 1
• Insulation Class: B
• Thermal Protection: Thermally Protected
• Ambient Temperature: 50 °C
• Duty: Air Over
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Rotation: Reversible
• Mounting: Flexible Arms
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Shaft Diameter: 0.500 inches
• Overall Length: 10.36 inches
• Frame Length: 3.75 inches
• Shaft Extension: 6 inches
• UL: Recognized
• CSA: Y
• CE: N
