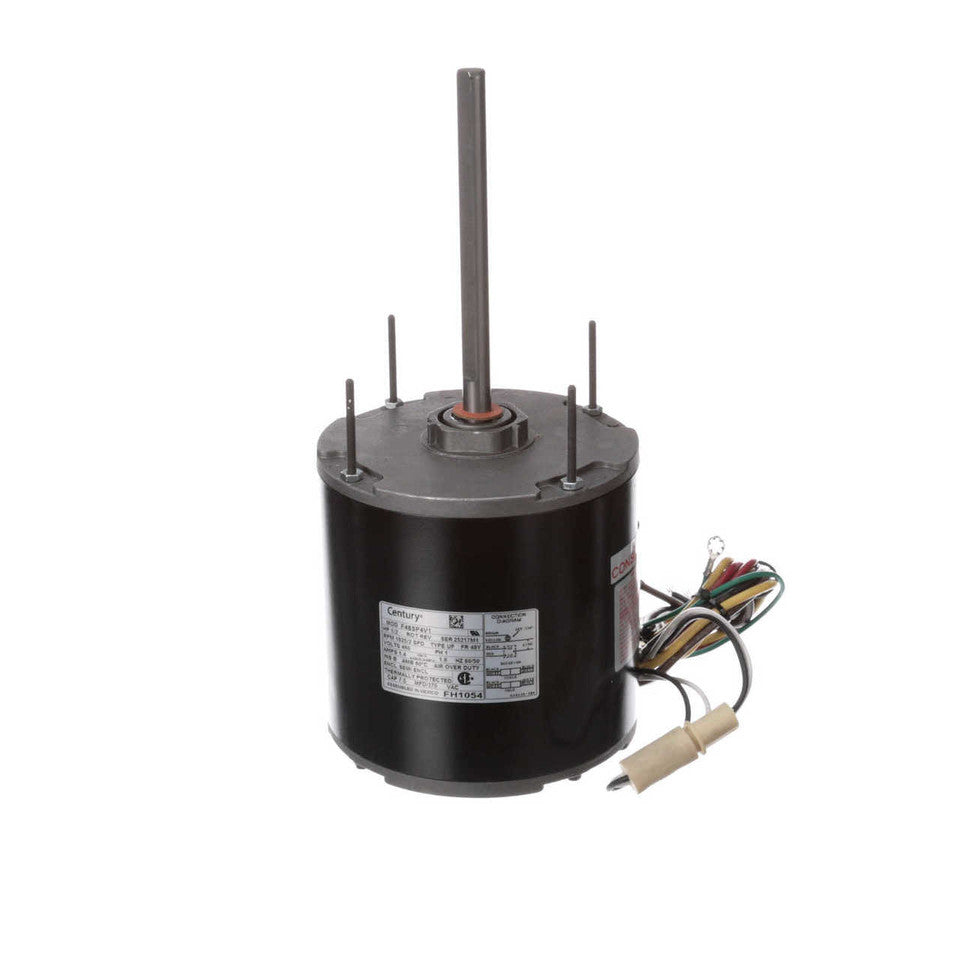

REGAL REXNORD FH1054 - 1/2 HP 1625 RPM 460V 2-SPD Motor

Product Description

The REGAL REXNORD FH1054 is a 1/2 HP motor designed for two-speed operation, specifically for HVAC applications. It operates efficiently at 460V with a speed of 1625 RPM. This motor features a 48Y Nema frame size and is equipped with a semi-enclosed structure. It includes ball bearings and a shaft size of 1/2 x 6 1/2 inches with the ability for reversible rotation.

• Operates at 460V and 1625 RPM.
• Two-speed operation for flexible usage.
• Ideal for condenser and heat pump applications.

Product Highlights

The FH1054 motor is built for durability and efficiency with an automatic overload protection feature.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Item Number: FH1054

Technical Specifications

• Horsepower: 1/2 HP
• Voltage: 460 Vac
• Phase: Single Phase
• RPM: 1625 RPM
• Speed: 2 Speed
• Amps: 1.4 Amps
• Frame Size: 48Y Nema Frame Size
• Enclosure: Semi Enclosed
• Bearing: Ball Bearing
• Shaft Size: 1/2 x 6 1/2 inches
• Rotation: Reversible Rotation
• Motor Type: Permanent Split Capacitor Motor
