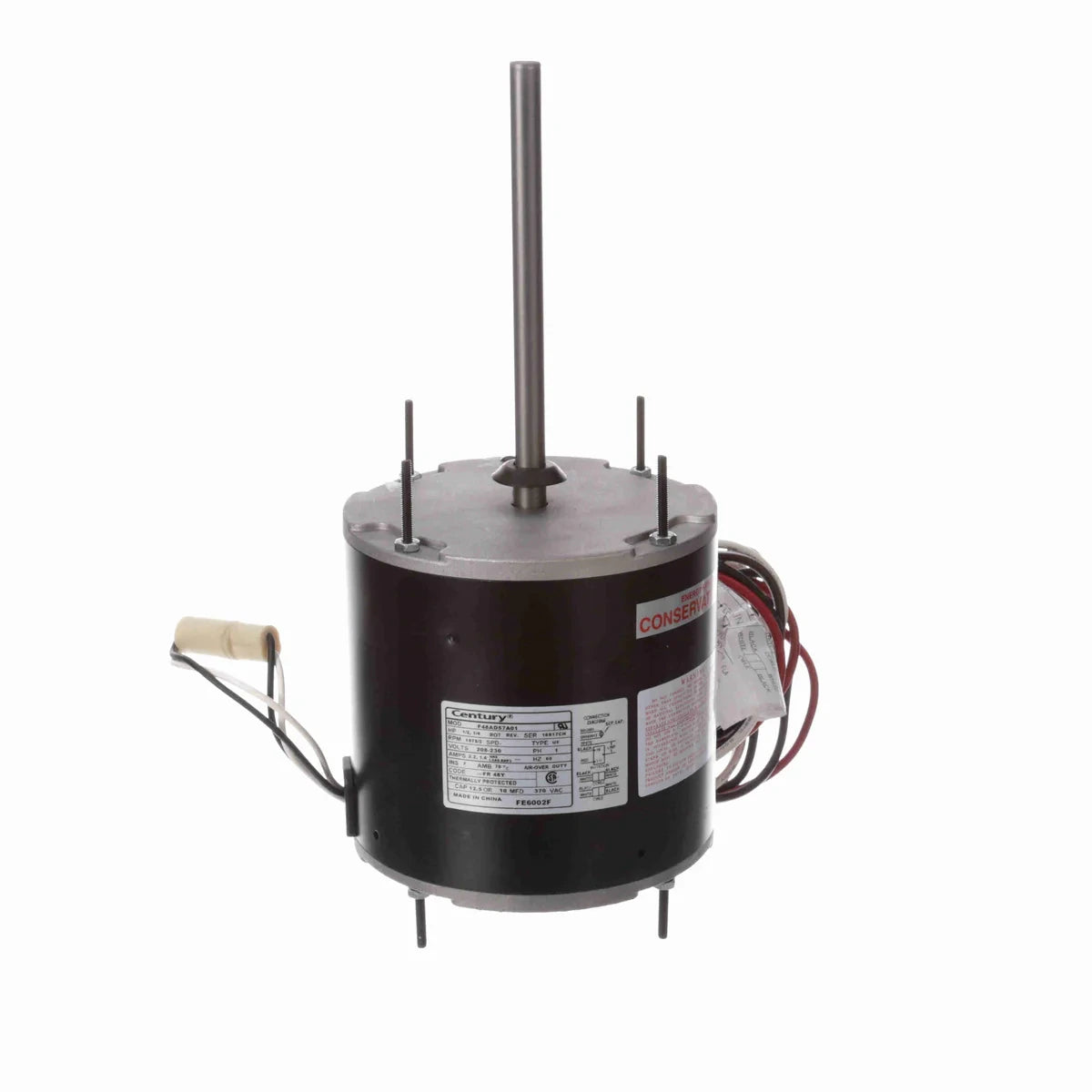

Regal Rexnord FE6002F multi-HP condenser fan motor 1/2-1/5 HP (48 frame, 5-5/8 inch) replacement for Rheem 51230521X

Product Description

Regal Rexnord FE6002F is a multi-horsepower condenser fan motor for residential and commercial HVAC condenser applications. The 48-frame, 5-5/8 inch permanent split capacitor (PSC) motor offers selectable 1/2, 1/3, 1/4, and 1/5 HP settings, runs at 1075 RPM on 208-230V single-phase power, and uses a TEAO enclosure with Class F insulation rated for 70°C ambient. It includes a 10 MFD 370V capacitor, 48-inch leads with quick-connects, a 1/2 inch double-flat shaft, reversible rotation, ball bearings, thermal protection, Rheem-compatible mounting, and extended thru-bolts.

• Selectable 1/2, 1/3, 1/4, 1/5 HP PSC motor; 1075 RPM at 208-230V single-phase
• 48-frame, 5-5/8 inch TEAO design with Class F insulation rated for 70°C ambient; reversible rotation and ball bearings
• 1/2 inch double-flat shaft, Rheem-compatible mounting, 48-inch leads with quick-connects, included 10 MFD 370V capacitor, and thermal protection

Product Highlights

Multi-HP 48-frame PSC condenser fan motor, 1075 RPM on 208-230V, includes 10 MFD 370V capacitor and thermal protection; compatible as a universal replacement for several OEM part numbers.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: FE6002F
