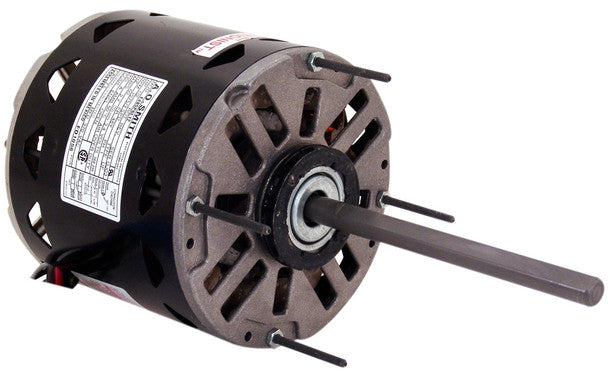

Regal Rexnord FD1056 - 1/2 HP Motor, 208-230V, 1075 RPM, 48Y Frame

Product Description

The Regal Rexnord FD1056 is a 1/2 HP motor that operates on 208-230 VAC single-phase power. It achieves a speed of 1075 RPM and has three operational speeds. This motor supports reversible rotation for various applications.

• Operates on 208-230 VAC single-phase power, suitable for standard electrical setups.
• Offers three-speed operation for adaptable performance to meet application requirements.
• Features reversible rotation, enhancing installation options.

Product Highlights

This motor is designed for compact use, providing reliable power in various environments.

Product Information

Standard Information

• Item Number: FD1056
• Brand: Regal Rexnord - Century Motors

Technical Specifications

• Horsepower: 1/2 HP
• Voltage: 208-230 VAC
• Phase: Single Phase
• RPM: 1075
• Speed: 3 Speed
• Amps: 2.7 Amps
• Frame Size: 48Y Nema Frame Size
• Enclosure: Open Air
• Bearing Type: Sleeve Bearing
• Shaft Size: 1/2 x 6 1/2
• Rotation: Reversible Rotation
• Motor Type: Permanent Split Capacitor Motor
• Frame: 48Y
