REGAL REXNORD FD1026 Fan and Blower Motor 1/4 HP

Product Description

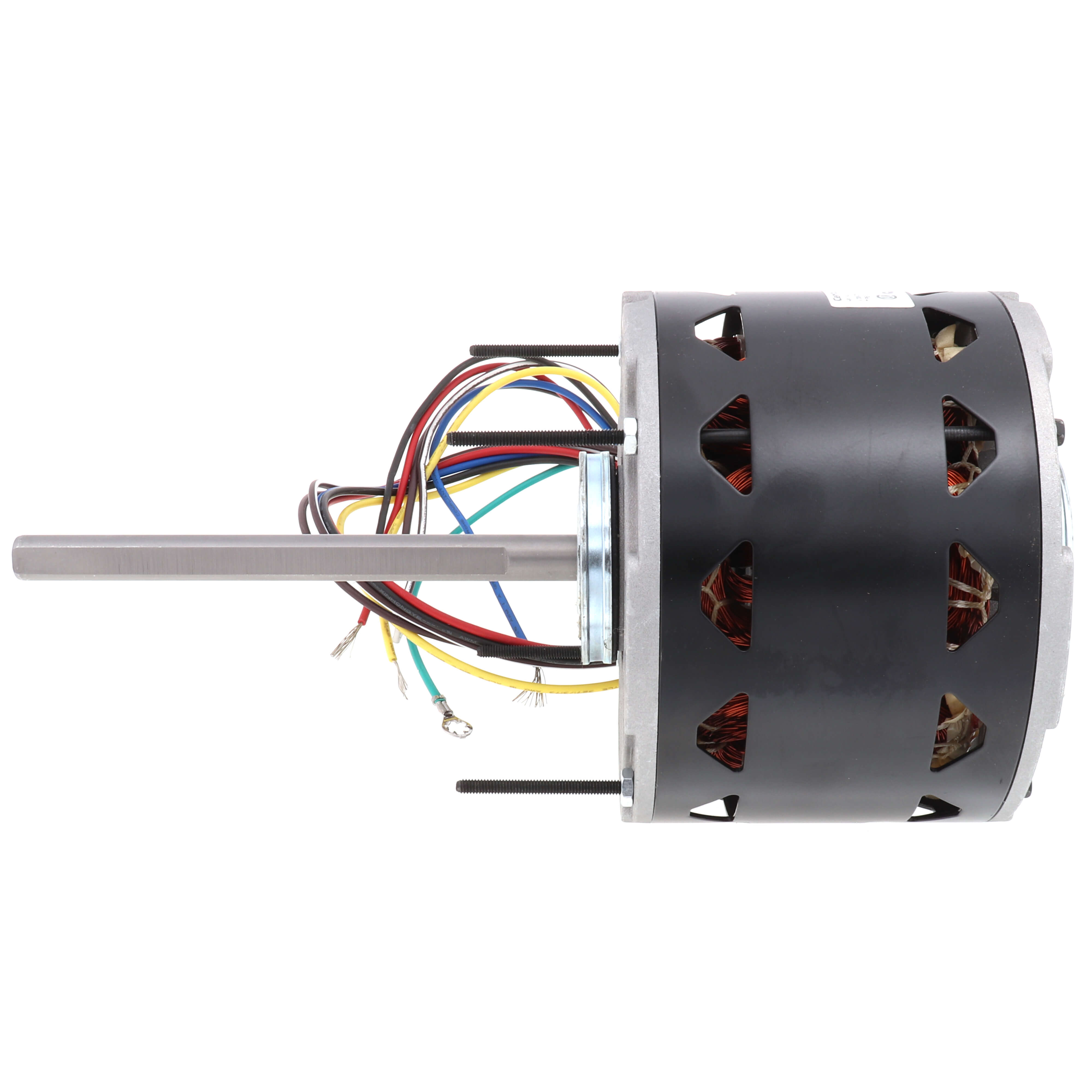

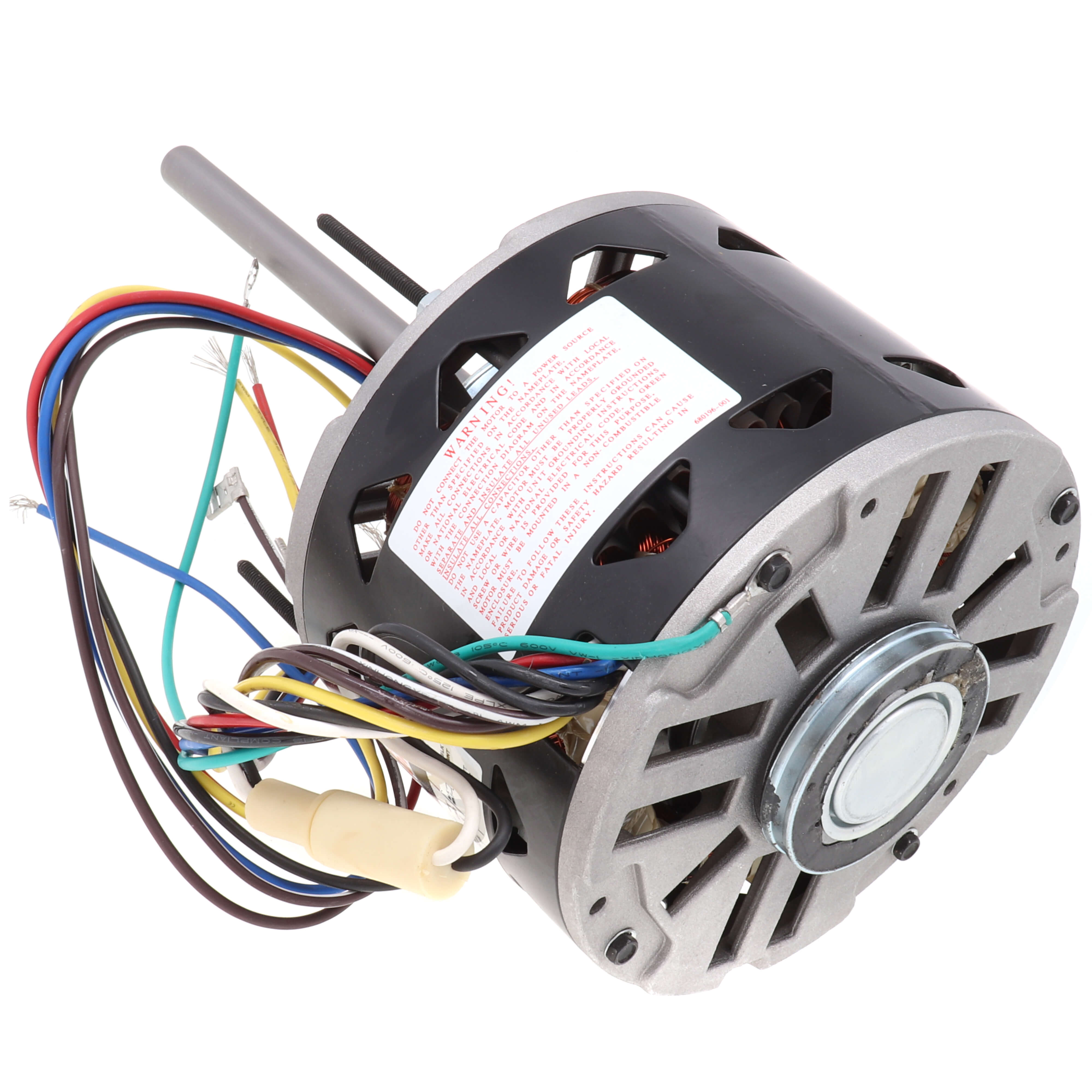

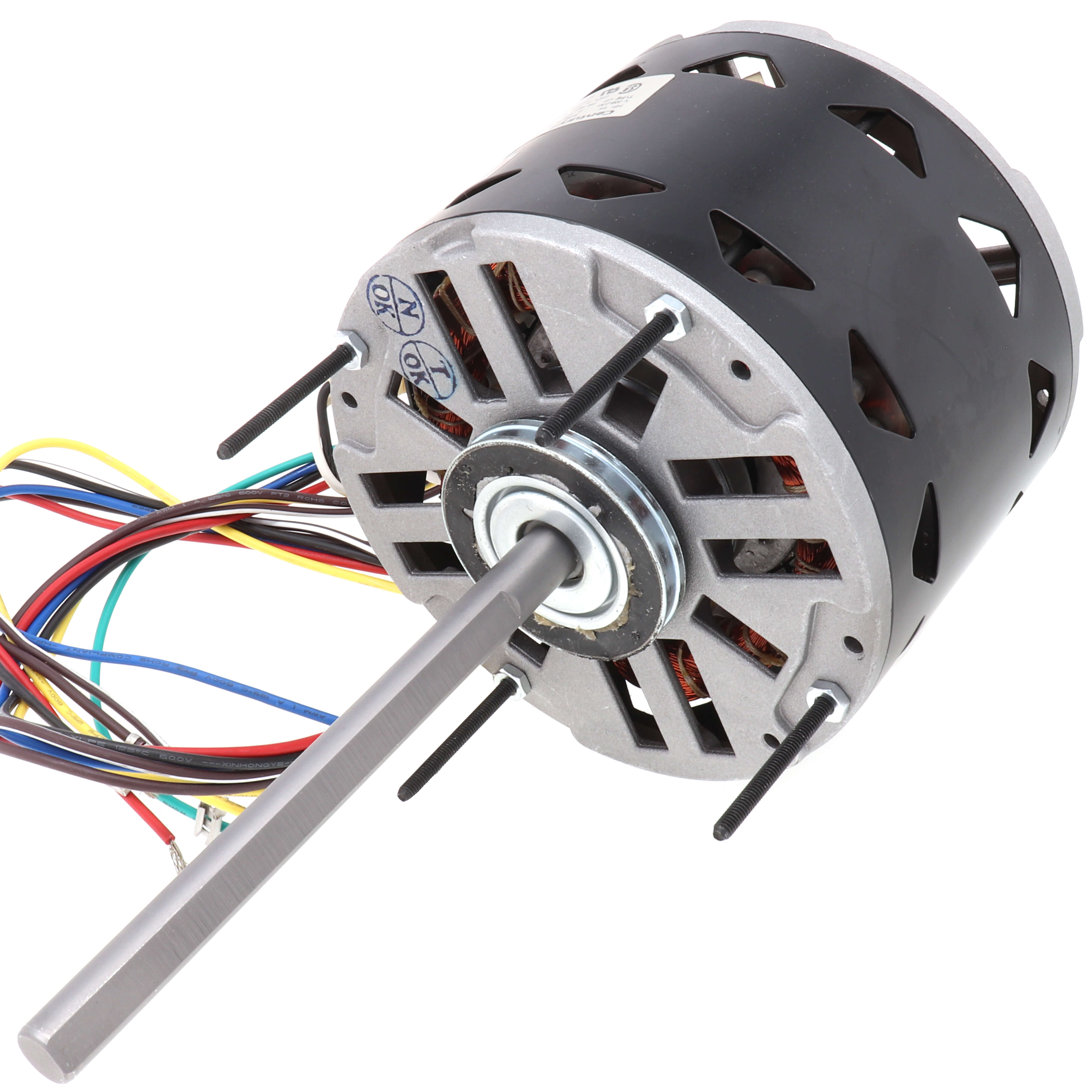

The REGAL REXNORD FD1026 is a fan and blower motor made for direct drive use. It works with a voltage range of two hundred eight to two hundred thirty volts and operates at sixty hertz. The motor provides a quarter horsepower output and has a speed of one thousand seventy-five RPM. It features a permanent split capacitor design and includes thermal protection to ensure safety while in operation. This motor has an open enclosure which makes it suitable for air-over applications and comes with ball bearings and a flat shaft type.

• Operates on two hundred eight to two hundred thirty volts at sixty hertz.
• Provides a quarter horsepower output.
• Includes a resilient ring mounting for easy installation.

Product Highlights

This motor is designed for durability and reliability in various HVAC applications.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• MPN: FD1026

Technical Specifications

• Phase: 1
• Output HP: 1/4 HP
• Input Voltage: 208-230 V
• Frequency: 60 Hz
• Speed: 1075 RPM
• Current: 1.85 A
• Frame Size: 48
• Thermal Protection: Automatic
• Duty: Air Over
• Insulation Class: A
• Mounting: Resilient Rings
• Overall Length: 11.05 inches
• Shaft Diameter: 0.500 inches
• Weight: 12 lbs
