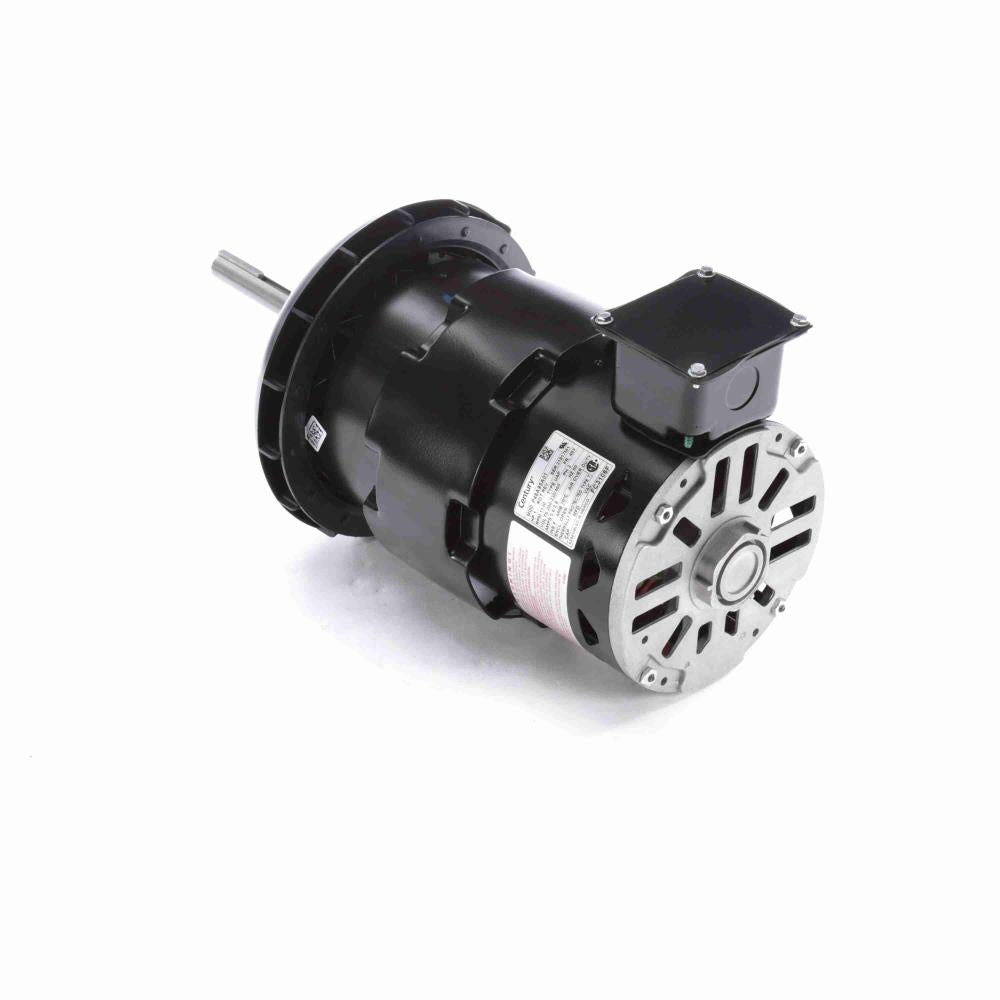

REGAL REXNORD FC3106 Condenser Fan Motor 1 Hp - FC3106

Product Description

The REGAL REXNORD FC3106 is a three-phase condenser fan motor. This motor is suitable for air-over applications and has an open enclosure design. It operates at a speed of one thousand one hundred forty RPM, providing reliable performance.

• Designed for air-over duty with reversible rotation.
• Features automatic thermal protection and ball bearings at both ends.
• Suitable for vertical shaft up mounting with a round belly band.

Product Highlights

This motor is effective for a variety of HVAC applications where a three-phase motor is required. It ensures efficient operation with durable components designed for high-performance standards.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: FC3106

Technical Specifications

• Phase: 3
• Output HP: 1 Hp
• Output KW: 0.75 kW
• Voltage: 200-230/460 V
• Speed: 1140 RPM
• Service Factor: 1
• Frame: 48Y
• Enclosure: Open
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Current: 5.6/2.8 A
• Duty: Air Over
• Insulation Class: F
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Three Phase
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Round Belly Band
• Motor Orientation: Vertical Shaft Up
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 15.44 inches
• Frame Length: 9 inches
• Shaft Diameter: 0.625 inches
• Shaft Extension: 4.07 inches
