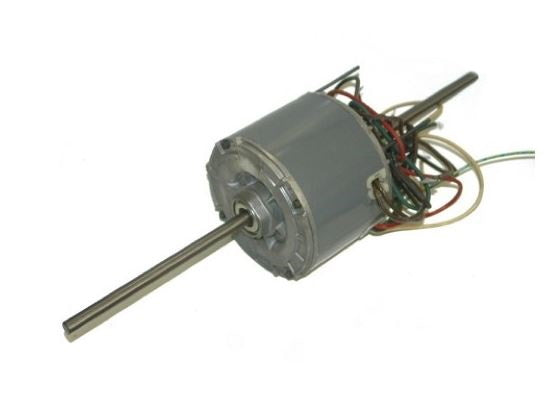

REGAL REXNORD D978 Electric Motor

Product Description

The REGAL REXNORD D978 is an electric motor that serves multiple applications. This model operates efficiently at various voltage levels and speeds while providing reliable performance. The motor features a designated frame size and a robust enclosure. Its construction includes high-quality materials ensuring durability. The motor supports horizontal mounting and allows for bi-directional rotation.

• Electrical Type: Options available depending on model (Squirrel Cage or Shaded Pole or Slipring)
• Enclosure Type: Totally Enclosed Fan Cooled or Totally Enclosed Air Over
• Mounting Configurations: Multiple options based on model (B5, Extended Studs, IMB3)

Product Highlights

This electric motor is suitable for both industrial and commercial use. With various configurations, it meets diverse operational needs in different settings.

Product Information

Standard Information

• Brand: REGAL REXNORD
• MPN: D978

Technical Specifications

• Phase: Varies by model (1 or 3)
• Output HP: Varies by model (1/20 Hp, 5.50 Hp, or 8 Hp)
• Output KW: Varies by model (0.04 kW, 4.0 kW, or 6.0 kW)
• Voltage: Varies by model (115 V, 380 V, or 415 V)
• Speed: Varies by model (978 rpm or 1050 rpm)
• Service Factor: 1
• Frame: Varies by model (42, 132M, or KS160L2)
• Enclosure: Varies by model (Totally Enclosed Air Over or Totally Enclosed Fan Cooled)
• Thermal Protection: Varies by model (Automatic or No Protection)
• Ambient Temperature: Varies by model (40 °C or 45 °C)
• Frequency: Varies by model (50 Hz or 60 Hz)
• Current: Varies by model (1.7 A, 9.3 A, or 13.8 A)
• Duty: Varies by model (Continuous Air Over, S1, or S4)
• Insulation Class: Varies by model (B or F/F)
• UL: Varies by model (Recognized or No)
• CSA: Varies by model (Y or No)
• CE: Varies by model (N or YES)
• IP Code: 55
• Number of Speeds: 1
• Electrical Type: Varies by model (Shaded Pole, Squirrel Cage, or Slipring)
• Starting Method: Varies by model (Across The Line, Direct On Line, or Rotor resistance starter)
• Poles: 6
• Rotation: Bi-Directional or Clockwise Shaft End
• Motor Orientation: Horizontal
• Drive End Bearing: Varies by model (2z-C3, Antifriction, or Sleeve)
• Overall Length: Varies by model (7.25 in, 503 mm, or 815.00 mm)
• Shaft Diameter: Varies by model (0.375 in, 38 mm, or 42.000 mm)
• Shaft Extension: Varies by model (3 in, 80 mm, or 110 mm)
• Assembly/Box Mounting: Top
