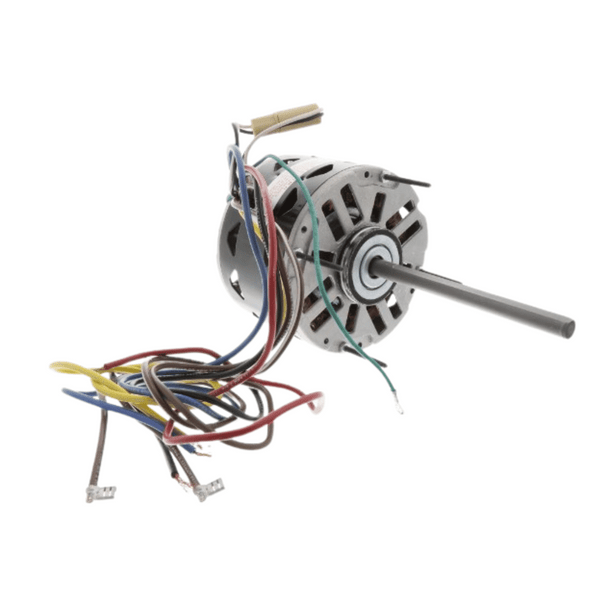

REGAL REXNORD D975 - Century Motors 7FD1016 Blower Motor

Product Description

The REGAL REXNORD D975 blower motor, also known as Century Motors 7FD1016, is a single-phase motor designed for HVAC systems. It operates at a voltage of 277 Vac and has a horsepower rating of 1/6 with a speed of 1075 RPM. This motor features three-speed settings and operates at an amperage of 0.8. Its 48Y Nema frame size and open air enclosure enhance durability. The shaft measures one-half by six inches and supports reversible rotation. This motor is a direct replacement for the D975 model.

• Functions as a direct replacement for the D975 blower motor.
• Operates at 277 Vac, single phase, with a horsepower of 1/6 and a speed of 1075 RPM.
• Features reversible rotation and resilient mounting.

Product Highlights

The REGAL REXNORD D975 blower motor is essential for HVAC applications requiring reliable performance and easy installation.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D975

Technical Specifications

• HP: 1/6
• Voltage: 277 Vac
• Phase: Single Phase
• RPM: 1075
• Speed: 3
• Amps: 0.8
• Frame Size: 48Y Nema
• Enclosure: Open Air
• Bearing: Sleeve Bearing
• Mounting: Resilient
• Shaft: 1/2 x 6
• Rotation: Reversible
• Motor Type: Permanent Split Capacitor Motor
