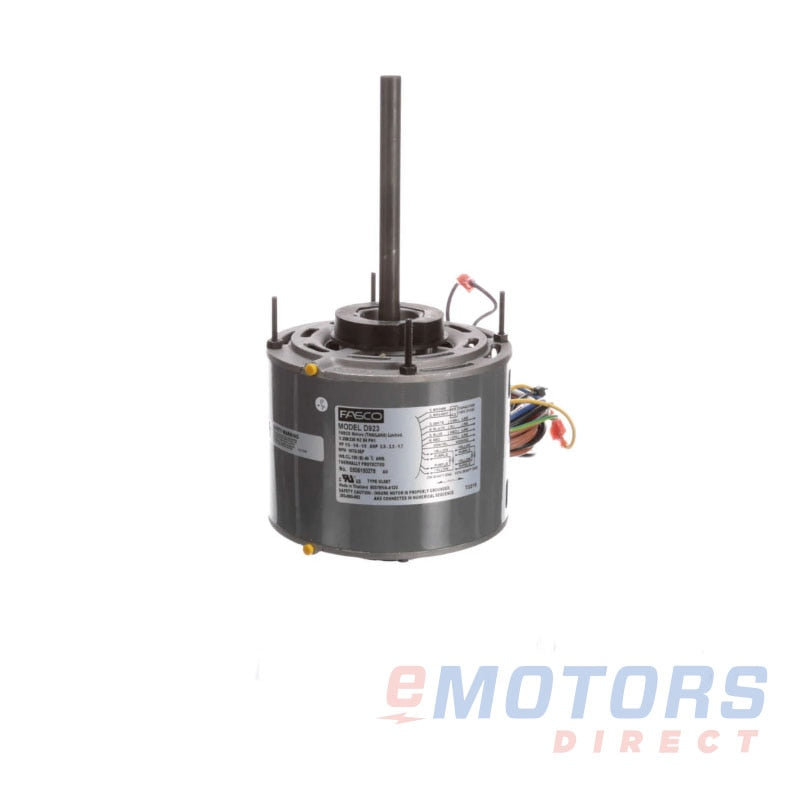

REGAL REXNORD D923 Motor 1/3 HP 208-230V

Product Description

The REGAL REXNORD D923 motor is a single-phase motor ideal for continuous duty applications. Operating at 208-230V, it delivers a rated output of 1/3 horsepower at 1075 RPM. The motor features a 48-frame size and has an open drip proof enclosure along with stud mounting for ease of installation.

• Operates at 208-230V with a rated motor speed of 1075 RPM.
• Features reversible rotation for flexible use.
• Includes a 5 Mfd-370 Volts run capacitor.

Product Highlights

This motor is built with a rolled steel frame and incorporates Class B insulation, functioning effectively in ambient temperatures up to 40 degrees Celsius. It includes sleeve bearings at both the drive end and non-drive end, ensuring smooth operation and durability. The shaft size measures 0.5 inches in diameter and 5.94 inches in length, making it suitable for various general purpose applications.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D923

Technical Specifications

• Rated Motor Output Power: 1/3 HP
• Rated Motor Speed: 1075 RPM
• Rated Motor Voltage: 208-230V
• Rated Motor Current: 2.9-2.2-1.7 AMP
• Phase: 1
• Poles: 6
• Frame: 48
• Enclosure: ODP
• Mounting: Stud
• Approximate Weight: 13 lb
• Frame Material: Rolled Steel
• Insulation Class: B
• Rotation: Reversible
• Duty: Continuous
• Ambient Temperature: 40°C
• DE Bearing: Sleeve
• NDE Bearing: Sleeve
• Shaft Diameter: 0.5 inches
• Shaft Length: 5.94 inches
• Agency Approvals: CSA & UL
• Frequency: 60 Hz
• Run Capacitor: 5 Mfd-370 Volts
