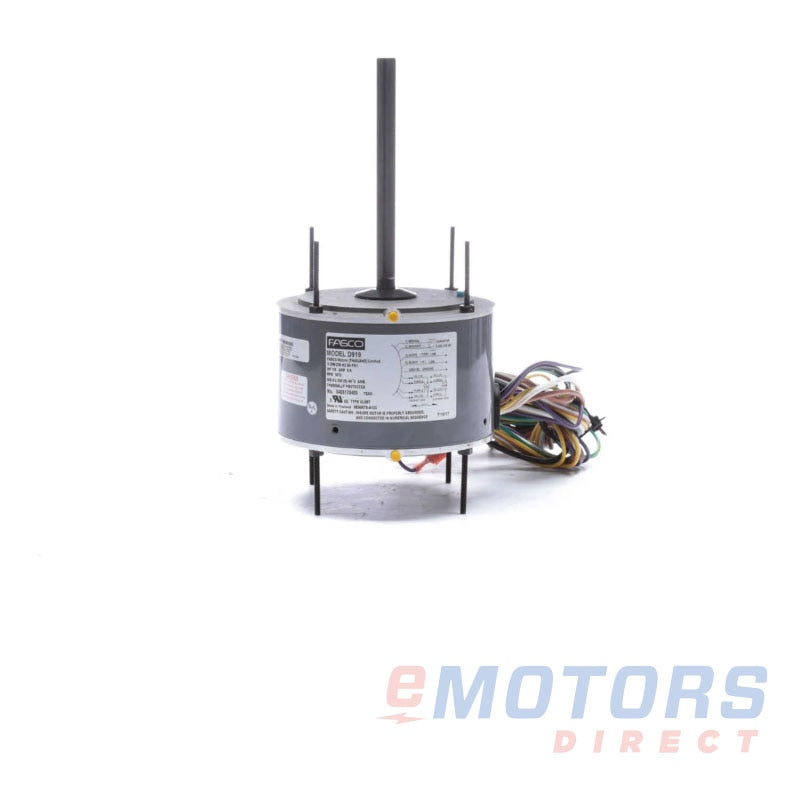

Regal Rexnord D919 - Motor, 1/8 HP, 208-230V, 1075 RPM

Product Description

The Regal Rexnord D919 is a single-phase motor designed for various applications in HVAC and other systems. This motor operates on 208-230 volts and delivers an output of 1/8 horsepower at a speed of 1075 RPM. It features a Totally Enclosed Air Over (TEAO) enclosure for reliable performance in continuous duty applications while maintaining an ambient temperature of up to forty degrees Celsius.

• Rated current of 0.79 amps for efficient operation.
• Equipped with a 5 Mfd-370 volts run capacitor.
• Reversible rotation allows for versatile installation options.

Product Highlights

This motor is built for continuous operation, featuring a robust rolled steel frame and sleeve bearings. It is suitable for a variety of applications including fans, pumps, and compressors.

Product Information

Standard Information

• Manufacturer Name: Regal Rexnord - Fasco
• OEM Part Number: D919

Technical Specifications

• Rated Motor Output Power: 1/8 HP
• Rated Motor Speed: 1075 RPM
• Rated Motor Voltage: 208-230V
• Rated Motor Current: 0.79 AMP
• Phase: 1
• Poles: 6
• Frequency: 60 Hz
• Run Capacitor: 5 Mfd-370 Volts
• Frame: 48
• Enclosure: TEAO
• Approximate Weight: 11.05 lb
• Frame Material: Rolled Steel
• Insulation Class: B
• Rotation: Reversible
• Duty: Continuous
• Ambient Temp: 40°C
• DE Bearing: Sleeve
• NDE Bearing: Sleeve
• Shaft Diameter: 0.5 inches
• Shaft Length: 6 inches
• Agency Approvals: CSA & UL
• Country of Origin: Thailand
• Warranty: 1 Year
