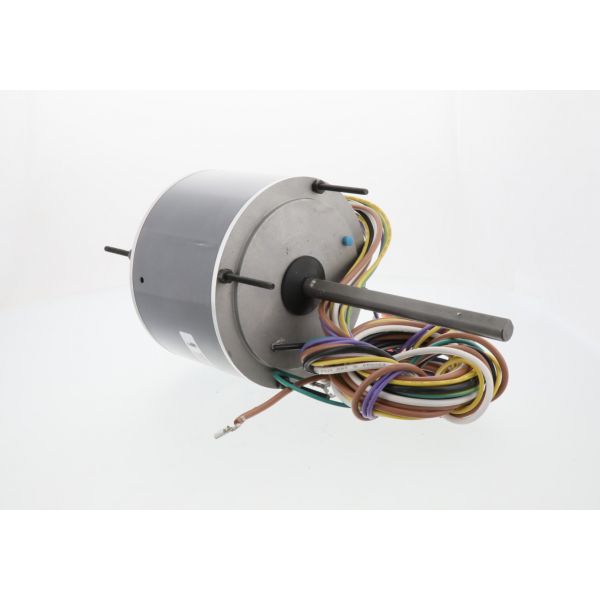

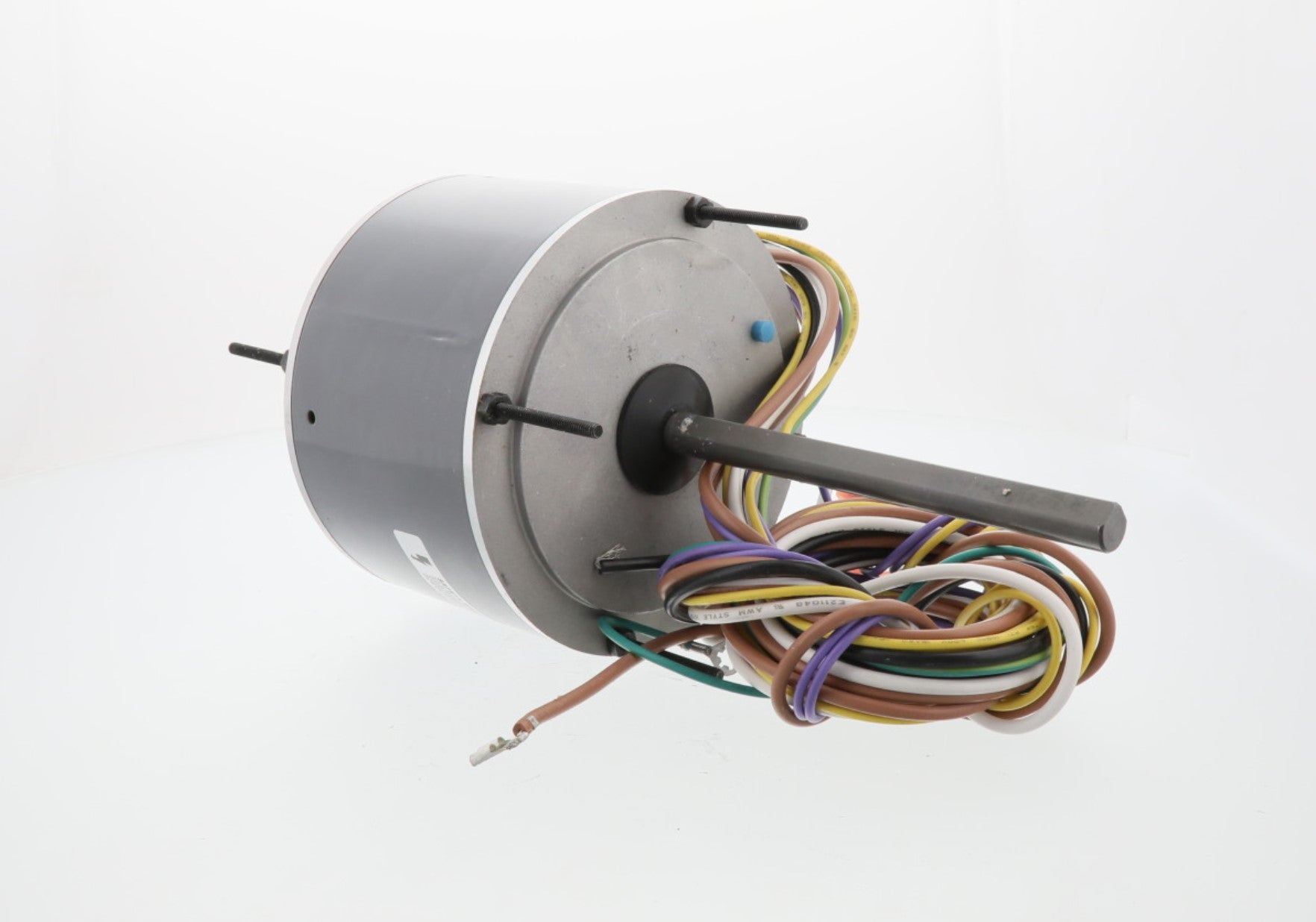

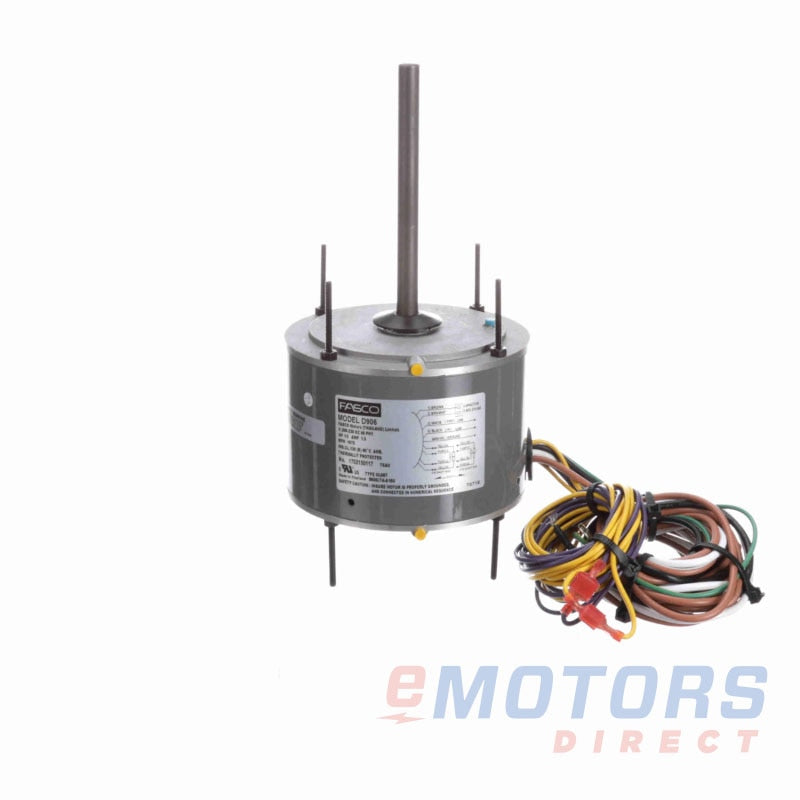

Regal Rexnord D906 Motor 1/5 HP 208-230V Reversible

Product Description

The Regal Rexnord D906 is a single-phase motor designed for continuous duty applications. It operates at 208-230 volts, delivering a rated output of 1/5 horsepower at a speed of 1075 RPM. The motor is suitable for various HVAC needs.

• Operates at 208-230V, delivering 1/5 HP at 1075 RPM for compatible applications.
• Features a TEAO enclosure and rolled steel frame, suitable for continuous operation at 40°C ambient temperature.
• Designed with reversible rotation and stud mounting for flexible installation options.

Product Highlights

This motor includes sleeve bearings on both the Drive End and Non-Drive End and supports a 0.5 inch diameter shaft with a length of six inches.

Product Information

Standard Information

• Manufacturer Name: Regal Rexnord - Fasco
• Product Number: D906

Technical Specifications

• Rated Motor Output Power: 1/5 HP
• Rated Motor Speed: 1075 RPM
• Rated Motor Voltage: 208-230V
• Rated Motor Current: 1.27 AMP
• Phase: 1
• Poles: 6
• Frame: 48
• Enclosure: TEAO
• Mounting: Stud
• Approximate Weight: 26 lb
• Frame Material: Rolled Steel
• Insulation Class: B
• Rotation: Reversible
• Duty: Continuous
• Ambient Temp: 40°C
• DE Bearing: Sleeve
• NDE Bearing: Sleeve
• Shaft Diameter: 0.5 inch
• Shaft Length: 6 inch
• Agency Approvals: CSA & UL
• Frequency: 60 Hz
• Run Capacitor: 5 Mfd-370 Volts
