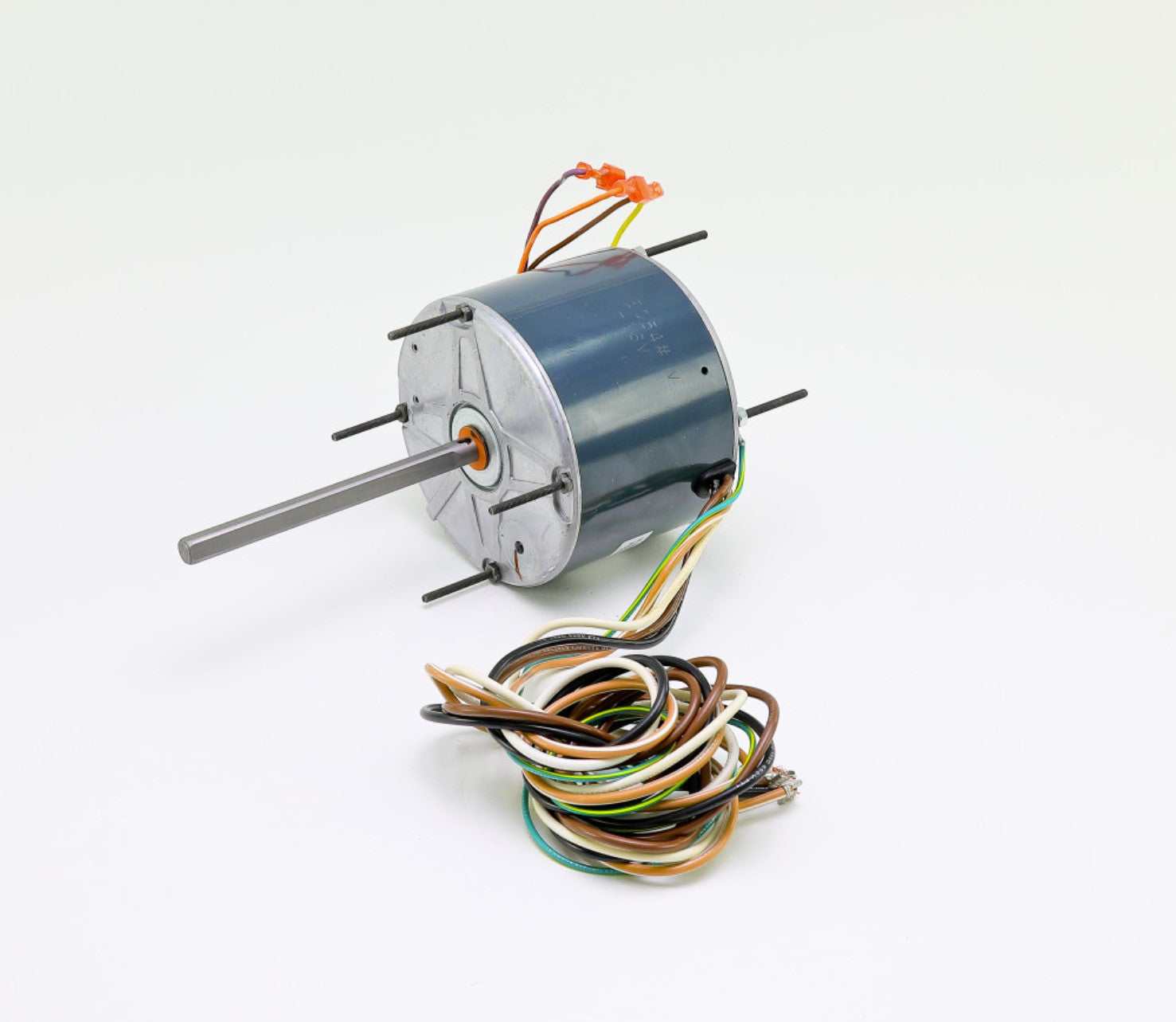

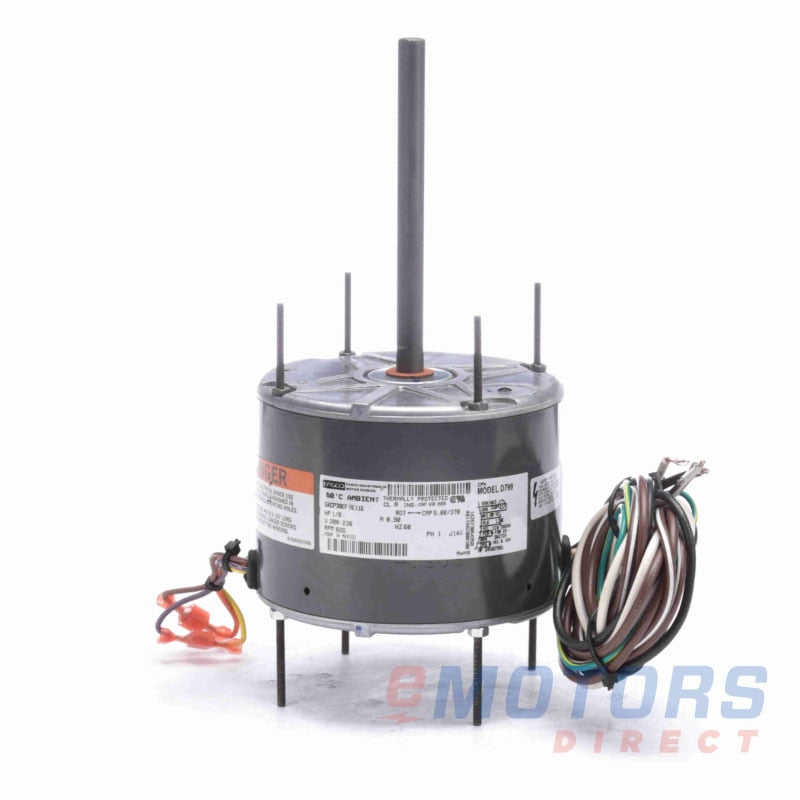

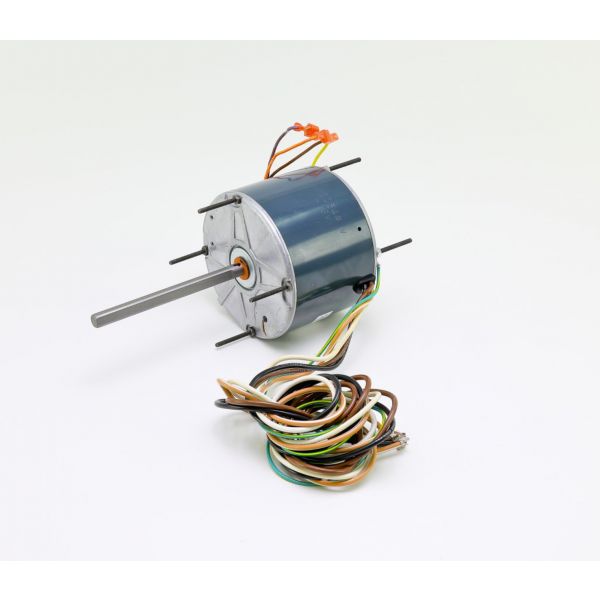

Regal Rexnord D799 Motor - 1/8 HP, 208-230V, 825 RPM

Product Description

The Regal Rexnord D799 is a motor with a power rating of 1/8 HP, suitable for continuous air-over applications. This motor operates at a voltage of 208-230V and runs at a speed of 825 RPM. The Totally Enclosed Air Over (TEAO) design allows it to function well in various environments.

• Operates at 208-230V, delivering 1/8 HP at 825 RPM.
• Features a TEAO enclosure for protection in demanding conditions.
• Can be mounted horizontally or vertically for flexible installation.

Product Highlights

Excellent for HVAC systems, the D799 motor provides reliable performance and is rated for continuous duty. With its reversible rotation feature, it can adapt to various airflow needs.

Product Information

Standard Information

• Brand: Regal Rexnord-Fasco
• Item Number: D799

Technical Specifications

• Rated Motor Output Power: 1/8 HP
• Rated Motor Speed: 825 RPM
• Rated Motor Voltage: 208-230V
• Rated Motor Current: 0.9 AMP
• Phase: 1
• Poles: 8
• Frequency: 60 Hz
• Run Capacitor: 5 Mfd-370 Volts
• Frame: 48
• Enclosure: TEAO
• Mounting: Stud
• Approximate Weight: 10.4 lb
• Frame Material: Rolled Steel
• C-Dimension: 10.31
• Insulation Class: B
• Rotation: Reversible
• Duty: Continuous Air Over
• Orientation: Horizontal / Vertical
• Ambient Temperature: 60°C
• DE Bearing: Ball
• NDE Bearing: Ball
• Shaft Diameter: 0.5 inches
• Shaft Length: 6 inches
