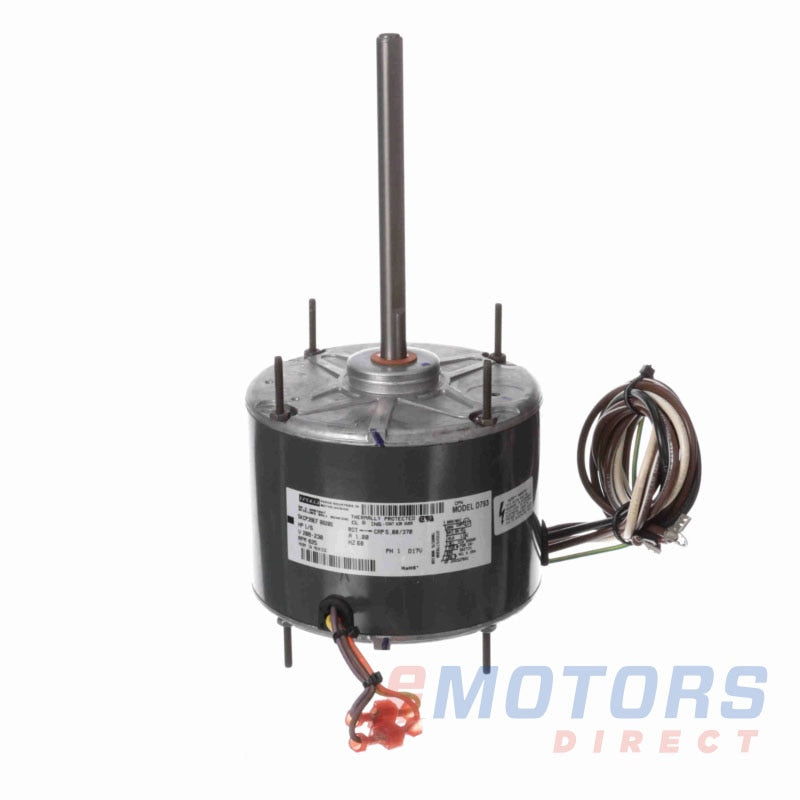

Regal Rexnord D793 Motor - 1/6 HP, 208-230V, 825 RPM

Product Description

The Regal Rexnord D793 motor provides essential power for HVAC systems and other compatible applications. This motor operates at a rated speed of eight hundred twenty-five RPM and can handle voltage levels of two hundred eight to two hundred thirty volts. Users benefit from the motor's robust design, featuring a TEAO enclosure that ensures durability in various environments.

• Rated at 1/6 HP for effective performance
• Compatible with both horizontal and vertical installations
• CSA certified for hazardous locations

Product Highlights

This specialty motor is built for continuous air over duty and offers reversible rotation to suit different needs.

Product Information

Standard Information

• Brand: Regal Rexnord
• Model Number: D793

Technical Specifications

• Rated Motor Output Power: 1/6 HP
• Rated Motor Speed: 825 RPM
• Rated Motor Voltage: 208-230V
• Rated Motor Current: 1 AMP
• Phase: 1
• Poles: 8
• Frequency: 60 Hz
• Run Capacitor: 5 Mfd-370 Volts
• Frame Size: 48
• Enclosure Type: TEAO
• Weight: 9.8 lb
• Orientation: Horizontal / Vertical
• Rotation: Reversible
• Hazardous Locations: CSA Certified
• Shaft Diameter: 0.5 inches
• Shaft Length: 6 inches
