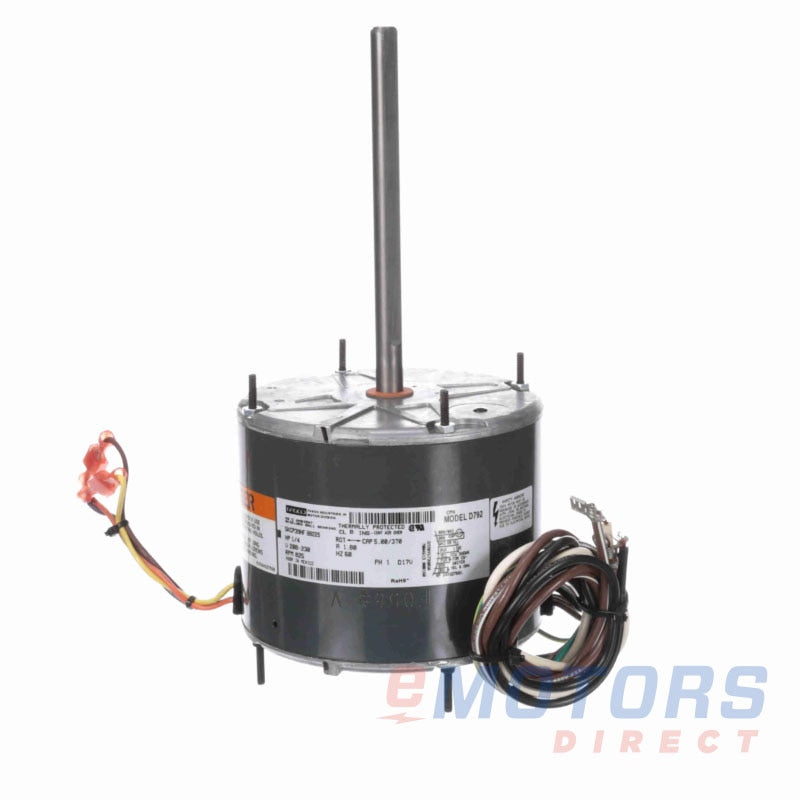

Regal Rexnord D792 Motor - 208-230V, 1/4 HP, 825 RPM

Product Description

The Regal Rexnord D792 Motor operates efficiently at 208-230V, delivering a consistent output of 1/4 HP at 825 RPM. This single-phase motor is designed for continuous air over applications.

• Operates at 208-230V, providing 1/4 HP at 825 RPM.
• Features a reversible rotation for flexible mounting options.
• Constructed with a rolled steel frame for durability.

Product Highlights

The D792 is suitable for both horizontal and vertical applications. It is equipped with a 5 Mfd-370 Volts run capacitor and features ball bearings on both ends, ensuring smooth operation.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D792

Technical Specifications

• Rated Motor Output Power: 1/4 HP
• Rated Motor Speed: 825 RPM
• Rated Motor Voltage: 208-230V
• Rated Motor Current: 1.8 AMP
• Phase: 1
• Poles: 8
• Frame: 48
• Enclosure: OAO
• Mounting: Stud
• Shaft Diameter: 0.5 inches
• Shaft Length: 6.5 inches
• Ambient Temp: 60°C
• Orientation: Horizontal / Vertical
• DE Bearing: Ball
• NDE Bearing: Ball
