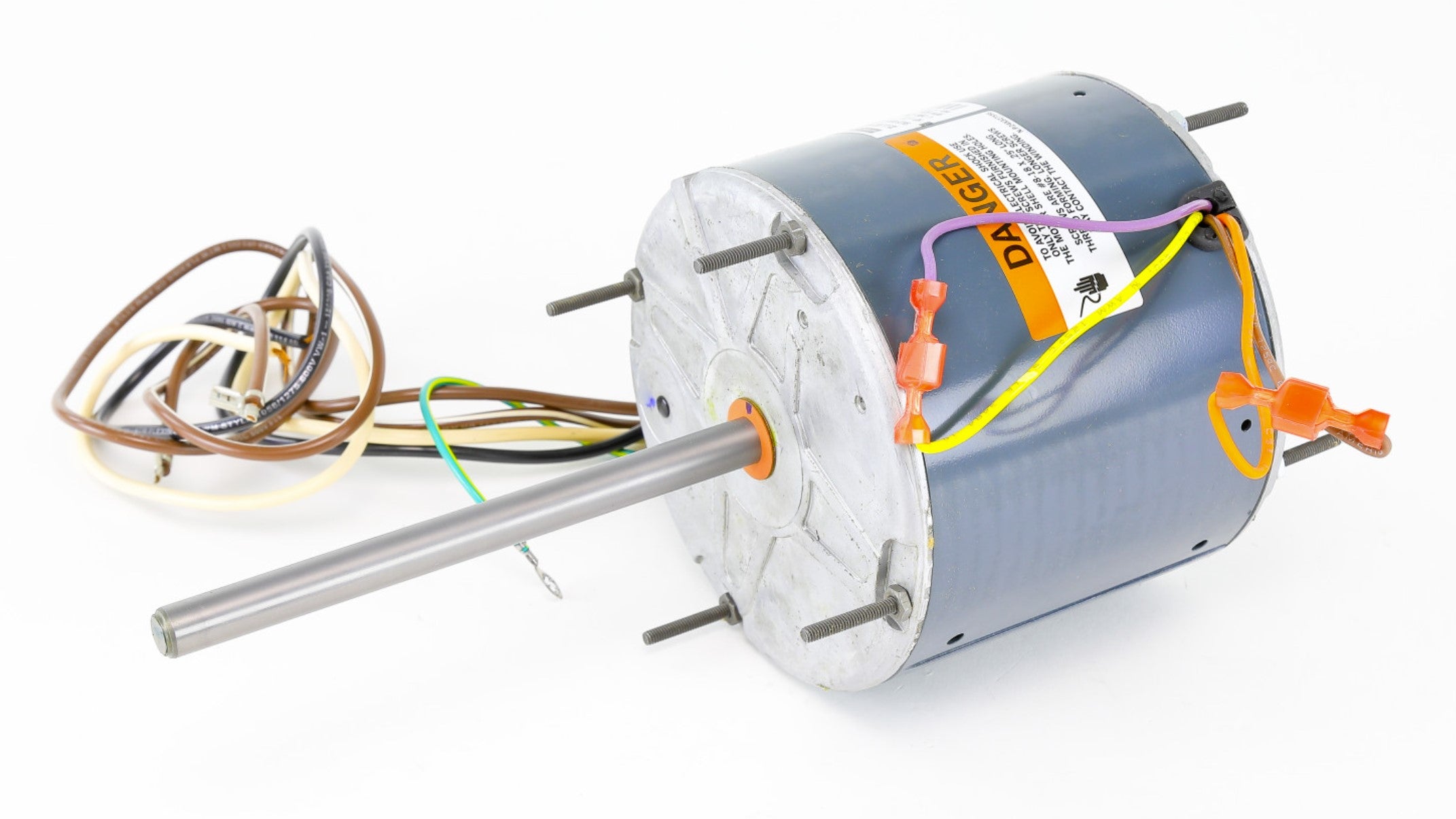

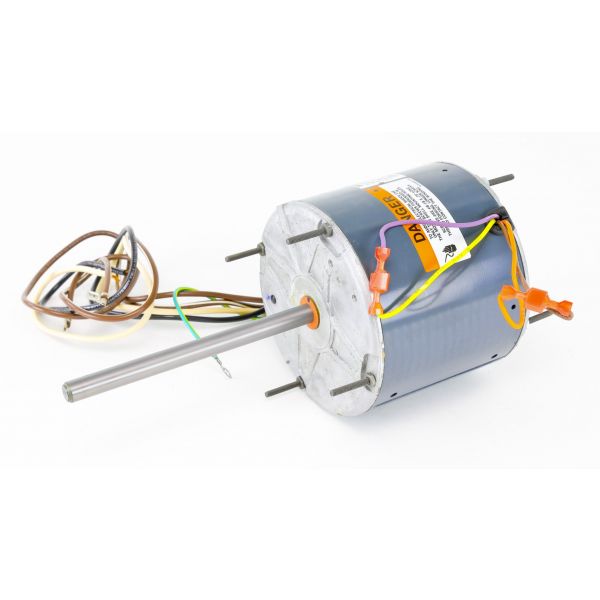

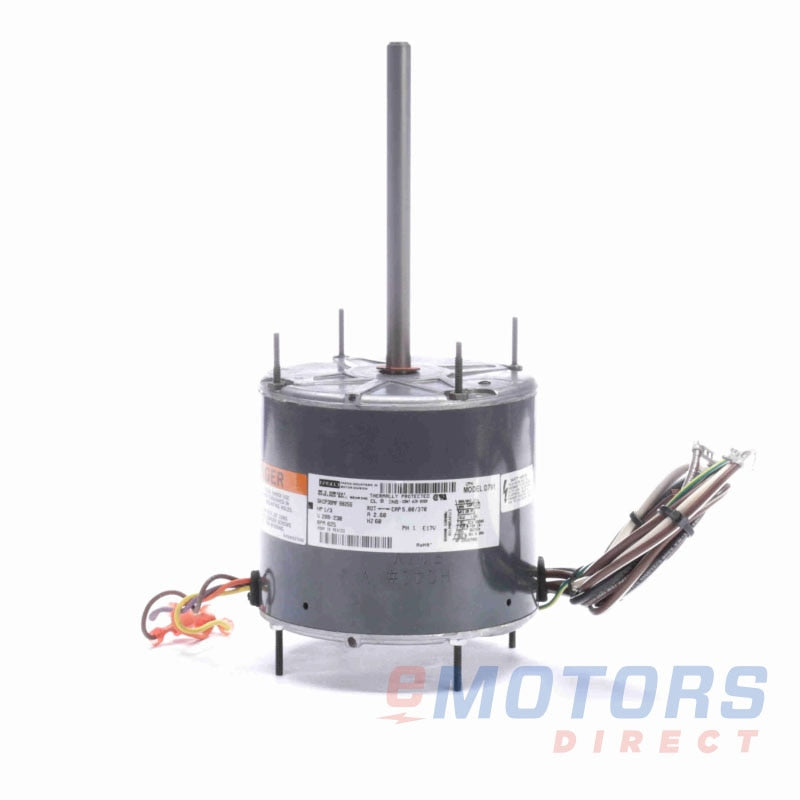

Regal Rexnord D791 Motor - 1/3 HP - 208-230V

Product Description

The Regal Rexnord D791 motor operates at 208-230V and provides a rated output of 1/3 HP at 825 RPM. This single-phase, 8-pole motor is intended for industrial applications. It is designed with a rolled steel construction and offers a stud mounting option. The motor can be installed in either a horizontal or vertical orientation, making it versatile for various setups.

• Rated for continuous air over duty.
• Reversible design for flexible installation.
• Durable construction with ball bearings at both ends.

Product Highlights

This motor is suitable for continuous operation under a maximum ambient temperature of sixty degrees Celsius. It has a shaft diameter of half an inch and a length of six point four two inches.

Product Information

Standard Information

• Item Number: D791
• Brand: Regal Rexnord - Fasco

Technical Specifications

• Rated Motor Output Power: 1/3 HP
• Rated Motor Speed: 825 RPM
• Rated Voltage: 208-230V
• Rated Current: 2.6 AMP
• Phase: 1
• Poles: 8
• Frequency: 60 Hz
• Frame: 48
• Enclosure: OAO
• Weight: 14.2 lb
• Rotation: Reversible
• Duty: Continuous Air Over
• Shaft Diameter: 0.5 inches
• Shaft Length: 6.42 inches
• Hazardous Locations: CSA Certified
