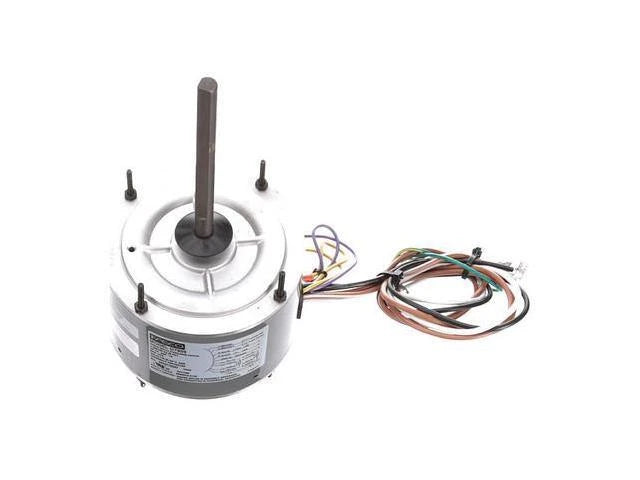

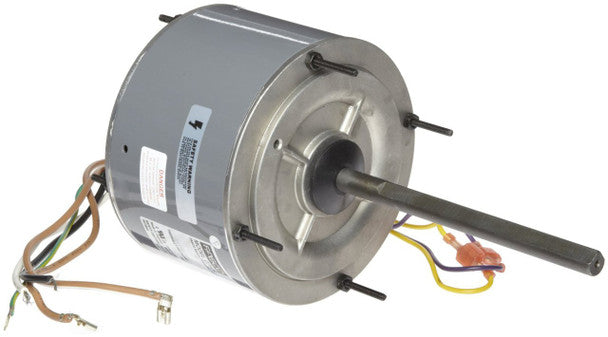

Regal Rexnord D7909 Condenser Fan Motor

Product Description

The Regal Rexnord D7909 is a 1/4 horsepower condenser fan motor suitable for various HVAC/R systems. It operates at 208/230 volts and has a speed of 1075 RPM. This motor features a totally enclosed air over design with a durable cast iron frame and aluminum end shields.

• Operates at 208/230 volts, compatible with standard electrical systems.
• 1/4 horsepower output for effective fan blade operation.
• Reversible rotation provides flexibility for installation.

Product Highlights

This motor is suitable for applications requiring efficient cooling and ventilation. It includes ball bearings for smooth operation and supports extended stud mounting.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D7909

Technical Specifications

• Horsepower: 1/4 hp
• Voltage: 208/230V
• RPM: 1075
• Application: Condenser Fan Motor
• Amperage: 1.8 A
• Frequency: 60 Hz
• Phase: 1 ph
• Enclosure: Totally Enclosed Air Over
• Frame: 48 Frame
• Shaft: 1/2 inch diameter by 6-1/2 inch length
• Rotation: Reversible
• Service Factor: 1
• Bearing: Ball Bearing
• Mounting: Extended Stud Mounting
• Temperature: 60 degrees C
• Insulation Class: Class B
• Material: Rolled Steel
• Dimensions: 5.6 inches diameter by 10.47 inches length
