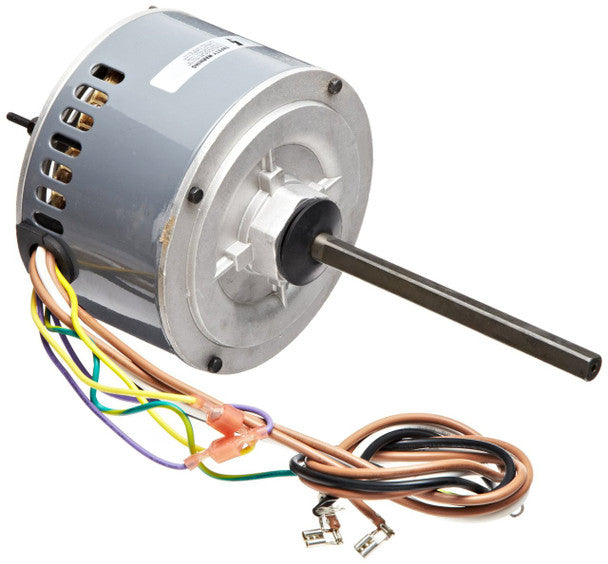

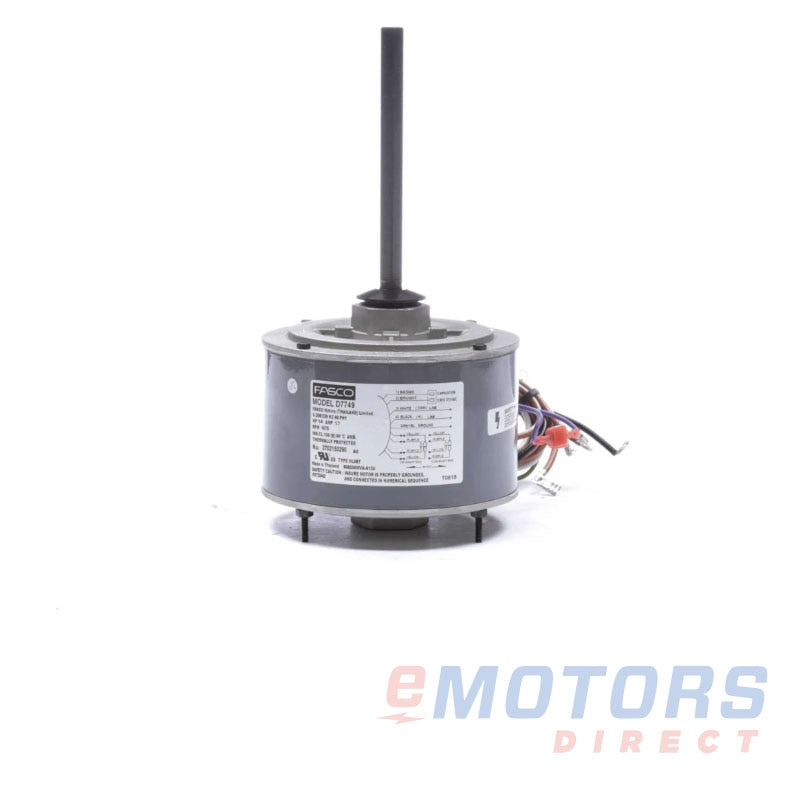

REGAL REXNORD D7749 - 1/4 HP Motor, 208-230V, 1075 RPM, 2-Speed

Product Description

The REGAL REXNORD D7749 is a motor with a power rating of 1/4 HP. It operates with a voltage range of 208-230V and runs at a speed of 1075 RPM. This motor is designed for continuous duty and includes two-speed functionality.

• Power: 1/4 HP
• Voltage: 208-230V
• Speed: 1075 RPM, 2-Speed

Product Highlights

This motor features a 48 frame size with stud mounting and an Open Drip Proof enclosure. It has reversible rotation and uses ball bearings at both the drive end and non-drive end. A run capacitor rated at 5 Mfd and 370 Volts is included, enhancing its performance in various applications.

Product Information

Standard Information

• Horsepower: 1/4 HP
• Voltage: 208-230V

Technical Specifications

• RPM: 1075
• Speed: 2 Speed
• Rated Motor Output Power: 1/4 HP
• Rated Motor Current: 1.7 AMP
• Phase: 1
• Poles: 6
• Frequency: 60 Hz
• Frame: 48
• Enclosure: ODP
• Approximate Weight: 10.4 lbs
• Insulation Class: B
• Ambient Temperature Rating: 60°C
• DE Bearing: Ball
• NDE Bearing: Ball
• Shaft Diameter: 0.5 inches
• Shaft Length: 6.5 inches
