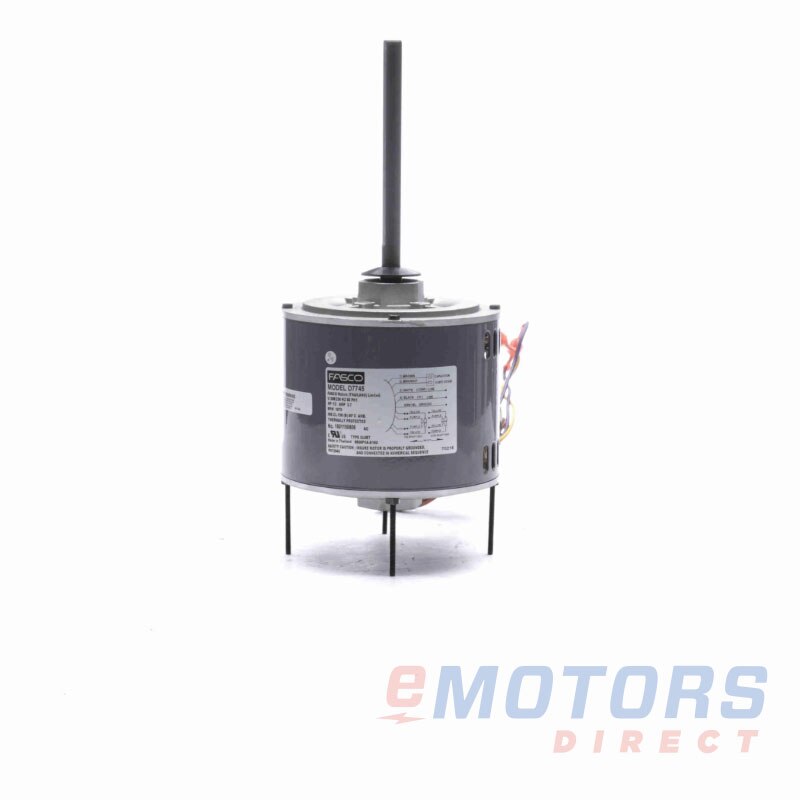

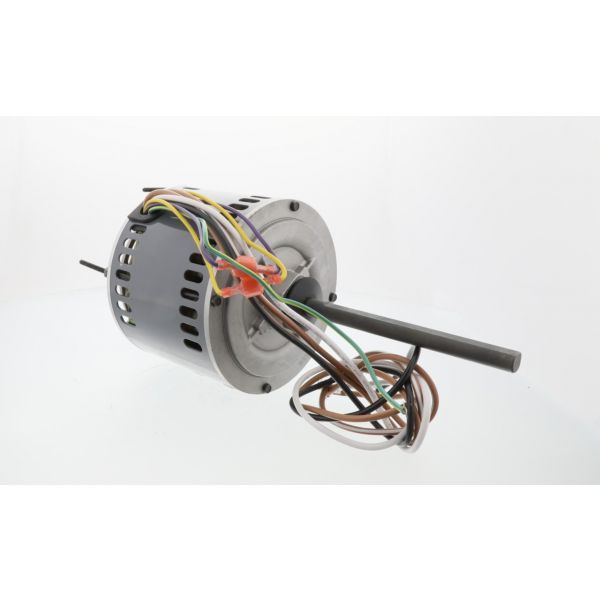

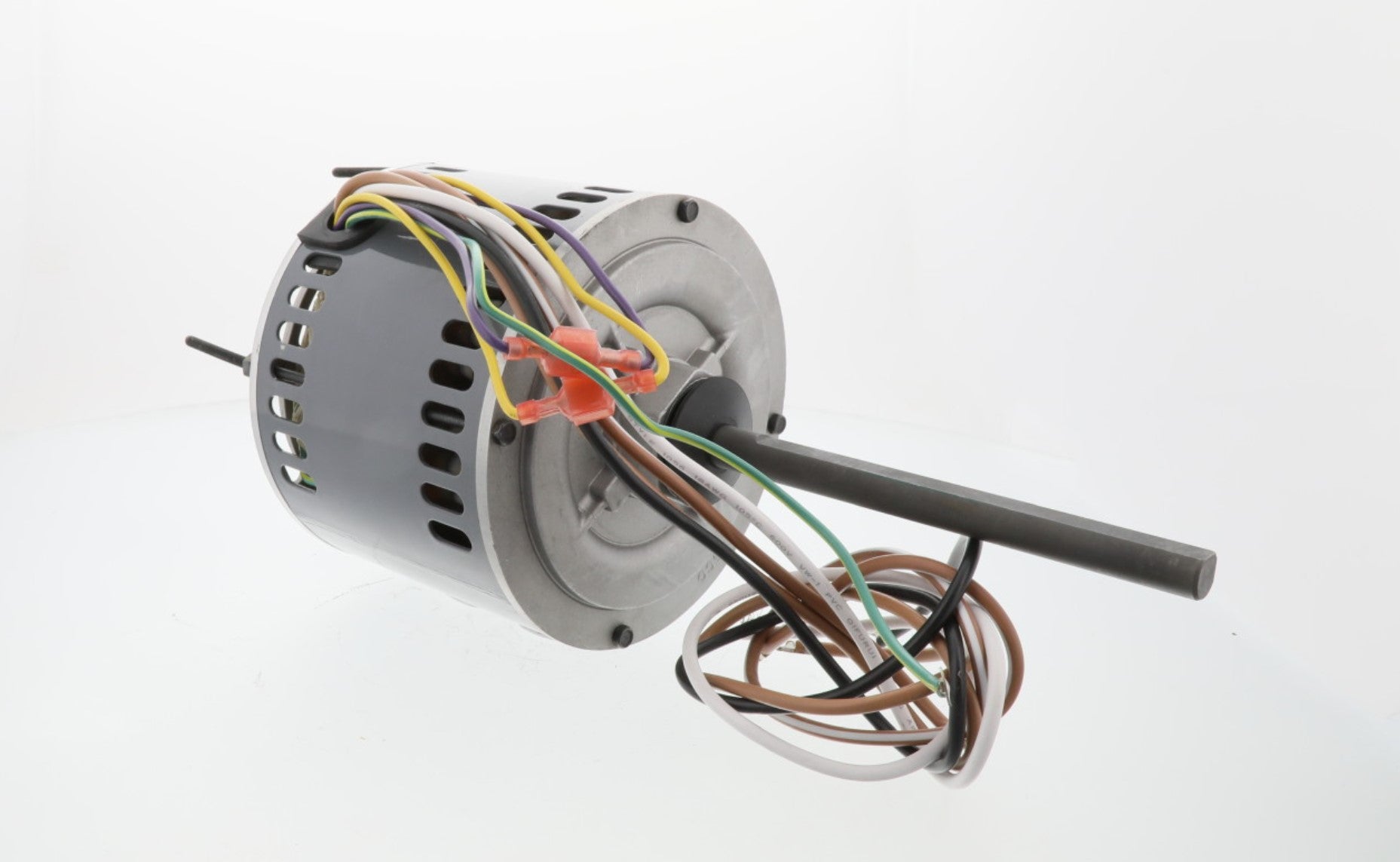

REGAL REXNORD D7745 - 1/2 HP Motor, 208-230V, 1075 RPM

Product Description

The REGAL REXNORD D7745 is a 1/2 HP motor designed for 208-230V single-phase power. Its rated speed is 1075 RPM, making it suitable for a variety of applications.

• Durable construction with a heavy-duty cast iron frame.
• Compatible with 208-230V power systems.
• Reversible rotation for flexible installation.

Product Highlights

This motor is built for continuous duty and operates well within ambient temperatures of up to 60 degrees Celsius. Its design includes a rolled steel frame and ball bearings for the drive end and non-drive end, ensuring reliable performance.

Product Information

Standard Information

• Brand: Regal Rexnord - Fasco
• MPN: D7745

Technical Specifications

• Rated Motor Output Power: 1/2 HP
• Rated Motor Speed: 1075 RPM
• Rated Motor Voltage: 208-230V
• Rated Motor Current: 3.7 AMP
• Phase: 1
• Poles: 6
• Frequency: 60 Hz
• Run Capacitor: 10 Mfd-370 Volts
• Frame: 48
• Enclosure: ODP
• Mounting: Stud
• Approximate Weight: 15.4 lb
• Frame Material: Rolled Steel
• Insulation Class: B
• Rotation: Reversible
• Duty: Continuous
• Ambient Temp: 60 degrees Celsius
• DE Bearing: Ball
• NDE Bearing: Ball
• Shaft Diameter: 0.5 inches
• Shaft Length: 6.5 inches
• Agency Approvals: CSA & UL
