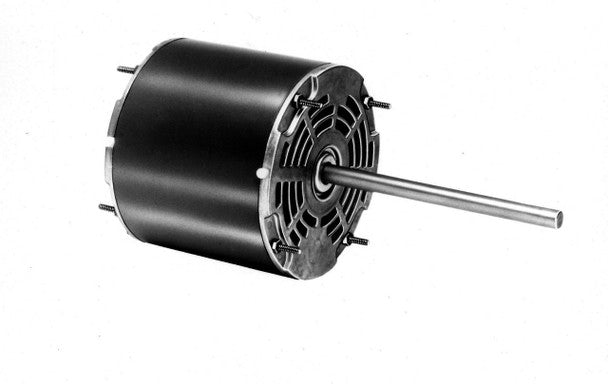

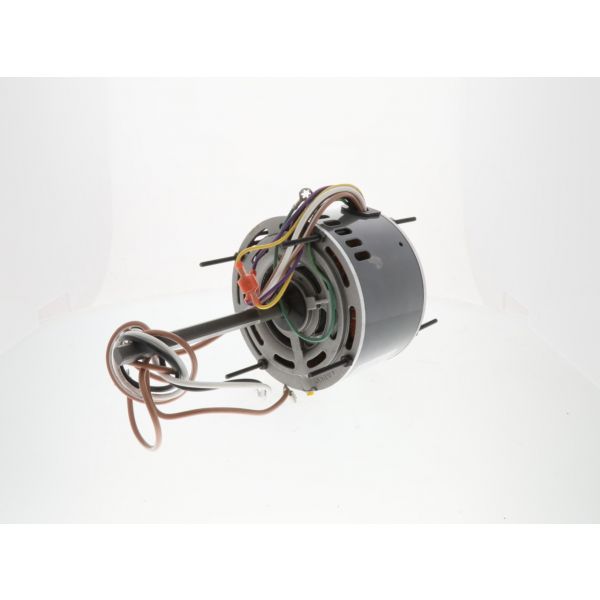

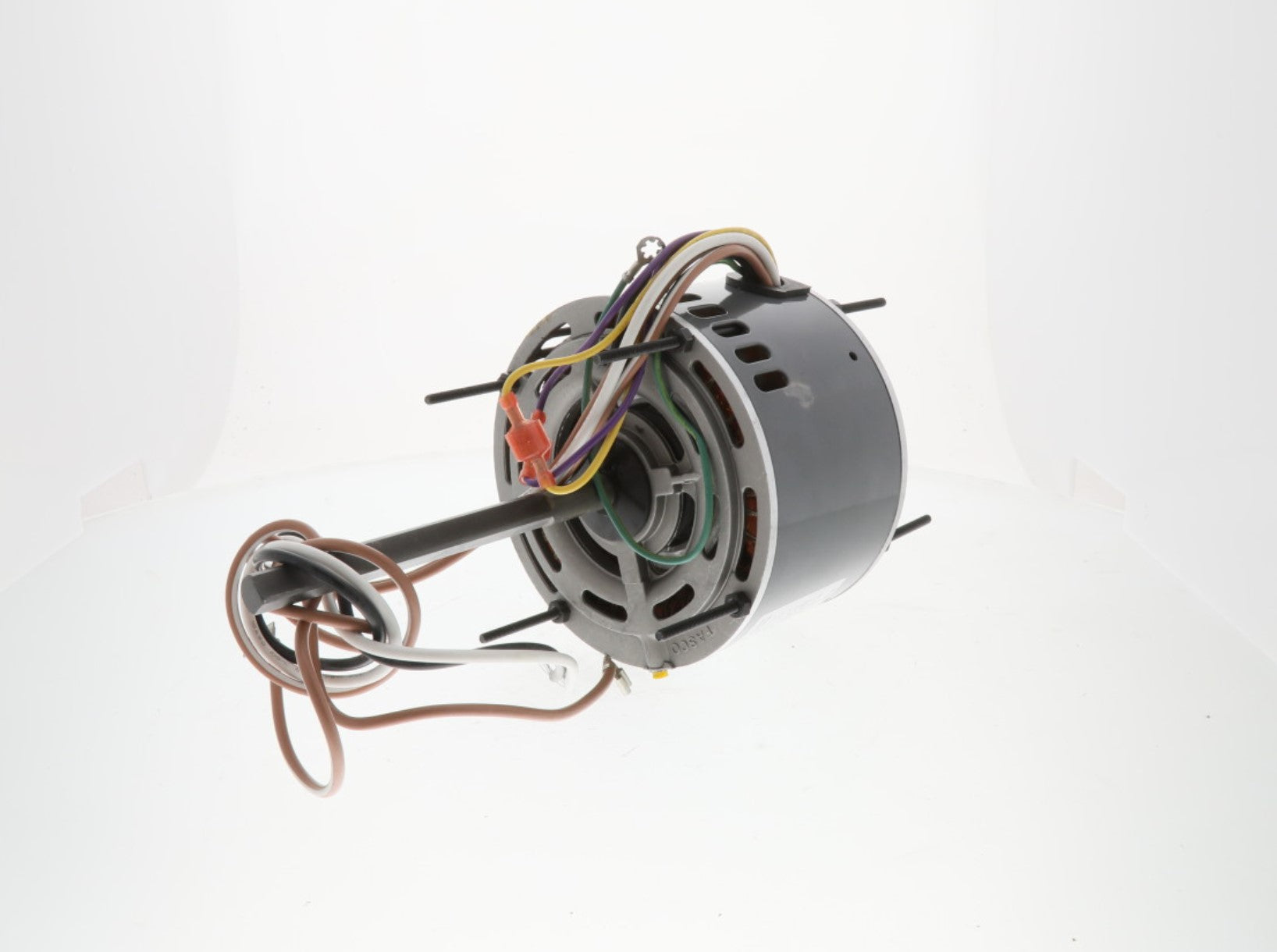

Regal Rexnord D743 Fasco Condenser Fan Motor 1/5 HP

Product Description

The Regal Rexnord Fasco D743 is a fractional horsepower motor used in HVAC systems and industrial applications. This model operates on 208-230V single-phase power and offers a power output of 1/5 HP at a maximum speed of 1075 RPM. It features an open drip-proof (ODP) enclosure, Class B insulation, and automatic thermal protection.

• Operates at 208-230V, 60 Hz, single-phase power.
• Delivers 1/5 HP at 1075 RPM.
• Includes automatic thermal protection for safety.

Product Highlights

This motor is ideal for condenser fan applications thanks to its robust construction and reliable performance.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D743

Technical Specifications

• Type: Condenser Fan
• Output Power: 1/5 HP
• Voltage: 208-230 V
• Frequency: 60 Hz
• Phase: 1
• Speed: 1075 RPM
• Current: 1.12 A
• Poles: 6
• Enclosure: Open Drip Proof
• Frame: 48
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6 inches
• Shaft Type: Double Flat
• Rotation: Reversible
• Mounting Type: Extended Studs
• Insulation Class: B
• Ambient Temperature: 40 °C
• Service Factor: 1
• Duty: Continuous
• Thermal Protection: Automatic
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• UL: Recognized
• CSA: Yes
