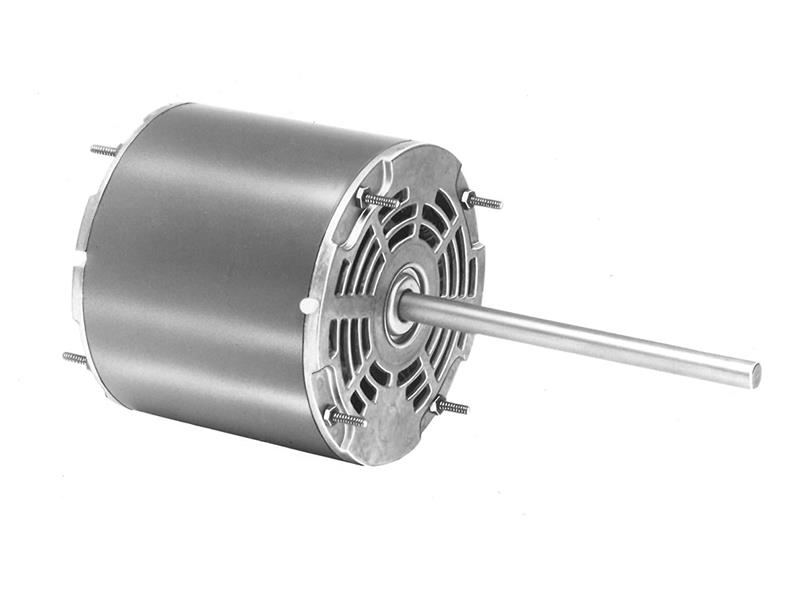

REGAL REXNORD D740 Motor 1/2 HP 208/230VAC

Product Description

The REGAL REXNORD D740 is a 1/2 horsepower electric motor suitable for various industrial tasks. This single-phase motor operates on 208/230VAC and 60Hz while drawing 4.5 amps. The motor reaches a rotational speed of 1075 RPM and is versatile in applications like Motors, GearBox, and Clutch systems. The D740 is designed for electrical reversibility and comes with thermal protection for safety. It is UL recognized and CSA certified, ensuring compliance with safety and quality standards. The motor also features all-angle mount bearings and has a built-in shaft water slinger for enhanced functionality.

• 1/2 horsepower electric motor.
• Operates at 208/230VAC and 60Hz with 4.5 amps draw.
• Includes thermal protection and all-angle mount bearings.

Product Highlights

This motor is ideal for industrial use due to its reliable performance and safety features.

Product Information

Standard Information

• Brand: REGAL REXNORD
• MPN: D740

Technical Specifications

• Horsepower: 1/2 HP
• Voltage: 208/230 VAC
• Frequency: 60 HZ
• Phase: 1 PHASE
• Amperage: 4.5 AMP
• RPM: 1075 RPM
• Electrically Reversible: Yes
• Thermal Protection: Yes
• UL Recognized: Yes
• CSA Certified: Yes
• Bearings: All angle mount
• Shaft: Includes water slinger
