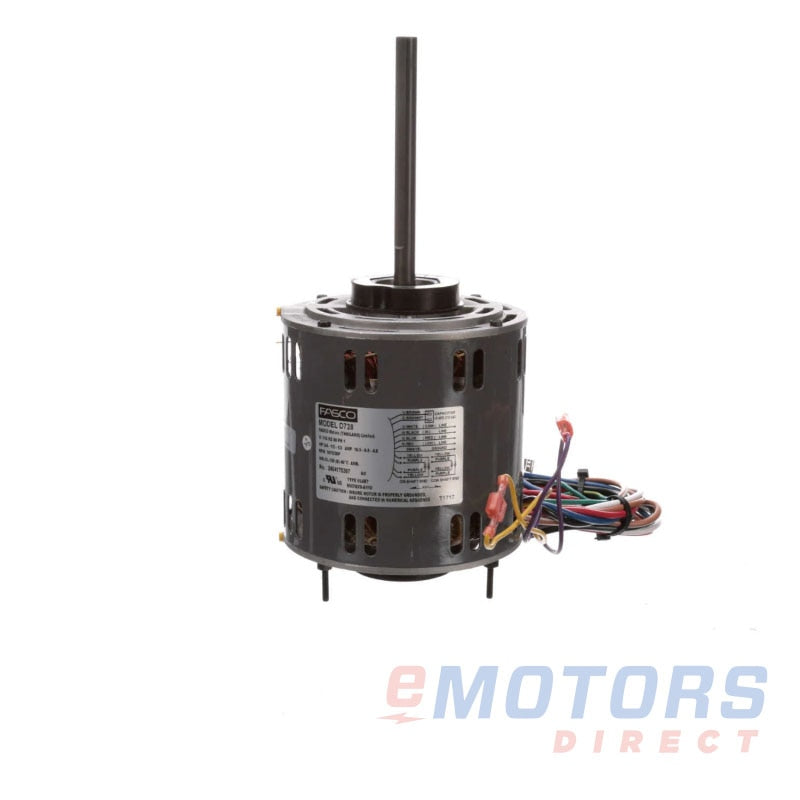

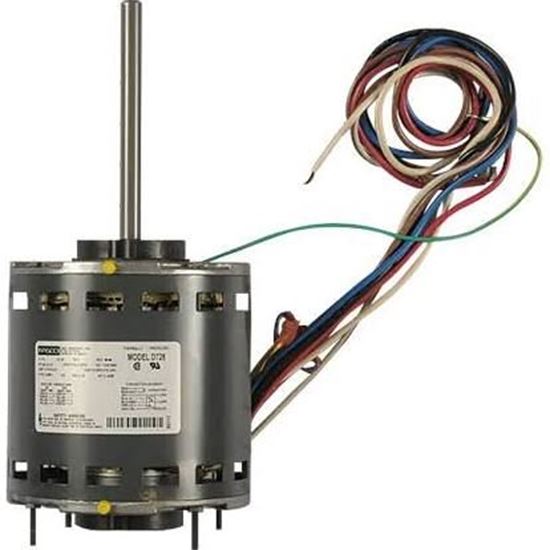

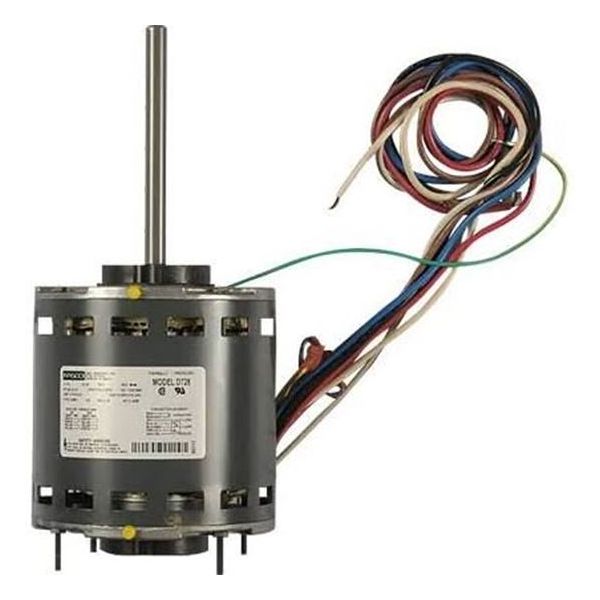

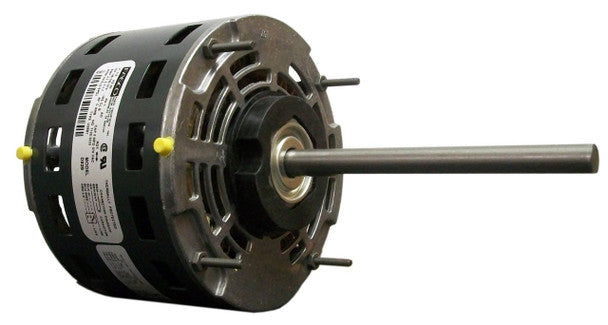

Regal Rexnord D728 Motor - 3/4 HP - 115V - Reversible MPN D728

Product Description

The Regal Rexnord D728 motor is a reliable component for HVAC systems, operating at 115V with a power output of 3/4 horsepower. This motor achieves a speed of 1075 RPM and is designed for continuous air over duty. It features six poles for efficient performance and a sturdy rolled steel frame. The open air over enclosure protects against dust and other contaminants, making it suitable for various applications.

• Operates at 115V with a rated motor current of 10.7 AMP.
• Features a TEFC enclosure for environmental protection.
• Designed with a shaft diameter of 0.5 inches and a shaft length of 5.75 inches.

Product Highlights

This motor is ideal for applications requiring reversible rotation and can be mounted using a resilient base. It has received agency approvals from CSA and UL.

Product Information

Standard Information

• Voltage: 115V
• Horsepower: 3/4 HP

Technical Specifications

• RPM: 1075
• Item Number: D728
• Rated Motor Current: 10.7 AMP
• Phase: 1
• Poles: 6
• Frame: 48
• Enclosure: OAO
• Mounting: Resilient
• Approximate Weight: 18.2 lb
• Frame Material: Rolled Steel
• Insulation Class: B
• Rotation: Reversible
• Duty: Continuous Air Over
• Ambient Temp: 40°C
• DE Bearing: Ball
• NDE Bearing: Ball
• Shaft Diameter: 0.5 inches
• Shaft Length: 5.75 inches
• Agency Approvals: CSA & UL
