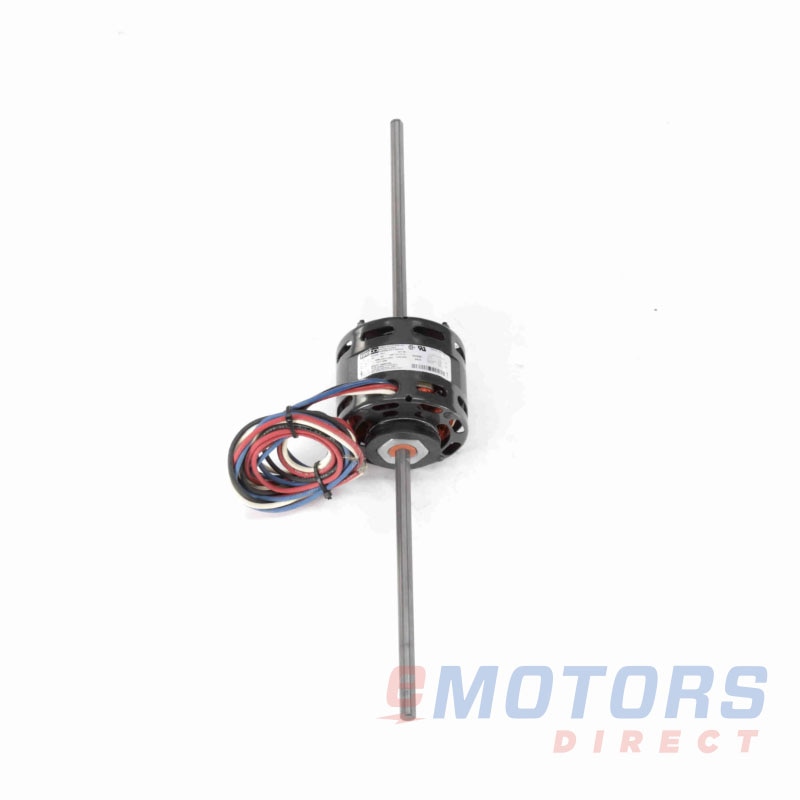

Regal Rexnord D635 Furnace Motor 1/10 HP 230V 60Hz

Product Description

The Regal Rexnord D635 is a furnace motor made for fan coil air-conditioning and heating units. This motor has a four-point four frame size and an open ventilated design. It operates at two hundred thirty volts and sixty hertz, providing a rated power of one-tenth horsepower. The motor speed reaches one thousand five hundred fifty revolutions per minute. Current ratings range from one point eight to one point three amps, designed with sleeve bearings and reversible rotation.

• Operates at two hundred thirty volts and sixty hertz.
• Rated motor output power of one-tenth horsepower.
• Suitable for air over duty applications.

Product Highlights

This motor is ideal for HVAC systems, providing reliable performance in heating and cooling units.

Product Information

Standard Information

• Frame Size: 4.4
• Rated Voltage: 230V

Technical Specifications

• Rated Motor Output Power: 1/10 HP
• Rated Motor Speed: 1550 RPM
• Rated Motor Current: 1.8-1.3-1.0 AMP
• Frequency: 60 Hz
• Rotation: Reversible
• Duty Type: Air Over
• Approximate Weight: 8.2 lb
• Ambient Temperature: 40°C
