REGAL REXNORD D541 Regal Rexnord Fasco Motor 1/100 HP

Product Description

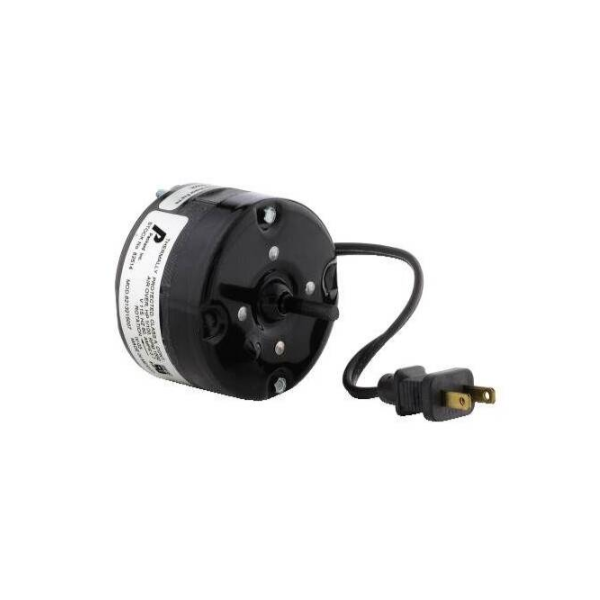

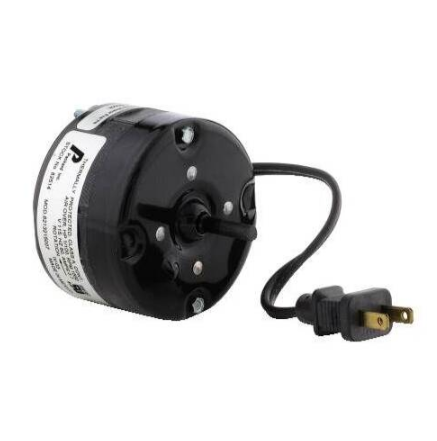

The Regal Rexnord Fasco D541 is a one-hundredth horsepower, single-phase motor suitable for OEM replacement tasks. This motor operates efficiently at one hundred fifteen volts and sixty hertz. It maintains a consistent speed of one thousand five hundred fifty RPM. The design includes a shaded pole feature for enhanced performance, thermal protection, and Class B insulation.

• Single-phase motor with one hundredth horsepower.
• Operates at one hundred fifteen volts with a speed of one thousand five hundred fifty RPM.
• Includes thermal protection and sleeve bearings.

Product Highlights

This motor is ideal for various applications requiring reliable and consistent power delivery.

Product Information

Standard Information

• Brand: Regal Rexnord - Fasco
• MPN: D541

Technical Specifications

• Output Power: 1/100 HP
• Voltage: 115 V
• Frequency: 60 Hz
• Speed: 1550 RPM
• Frame Diameter: 3.3 inches
• Thermal Protection: Thermally Protected
• Current: 0.60 A
• Insulation Class: B
