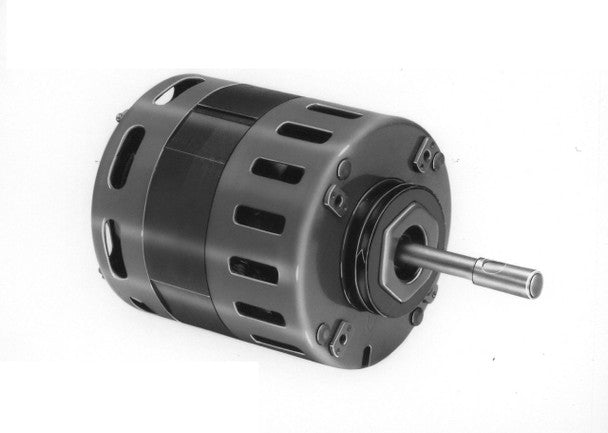

Regal Rexnord D484 Fasco Motor - 1/20 HP, 115/230V, 1550 RPM

Product Description

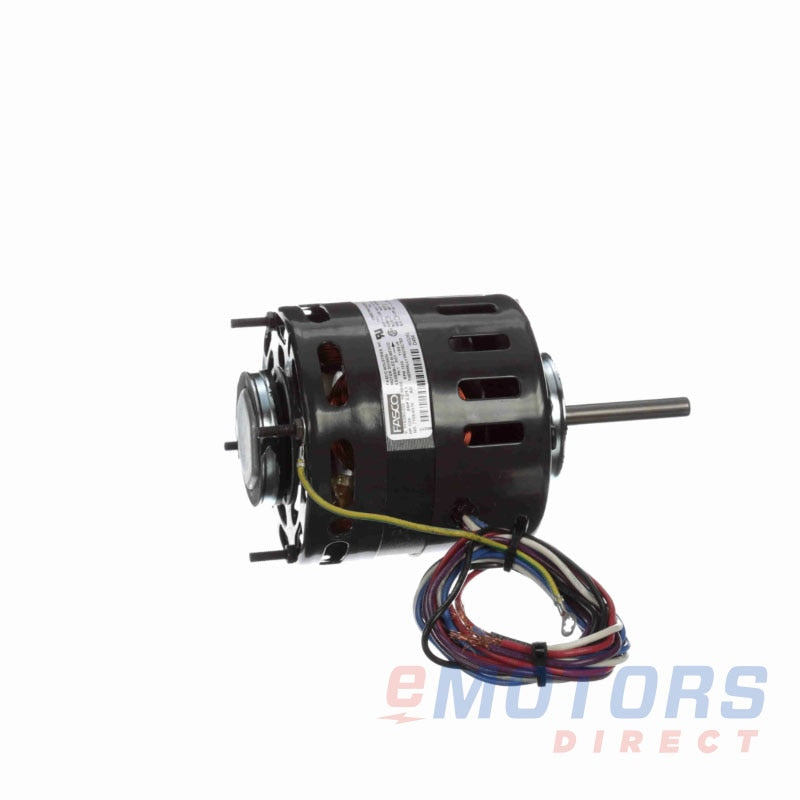

The Regal Rexnord D484 is a Fasco motor suitable for air-over applications. This motor operates on either 115V or 208-230V and delivers a power of 1/20 HP at a speed of 1550 RPM. It has an open ventilation design and employs a shaded pole structure, making it effective for various HVAC needs.

• Operates at 115V or 208-230V with 1/20 HP output.
• Features open ventilation and shaded pole design.
• Offers resilient or stud mounting options.

Product Highlights

This motor uses sleeve bearings for durability and is lightweight at approximately 5.6 pounds. The clockwise rotation operates at a frequency of 60Hz and has a current rating of 2.2/1.1 amps, adapting well to different installation settings.

Product Information

Standard Information

• Brand: Regal Rexnord - Fasco
• Product Number: D484

Technical Specifications

• Frame: 4.4
• HP: 1/20
• Voltage: 115V, 208-230V
• RPM: 1550
• Amps: 2.2/1.1
• Rotation: CW
• Insulation Class: A
• Shaft Diameter: 0.375 inches
• Shaft Length: 3.15 inches
