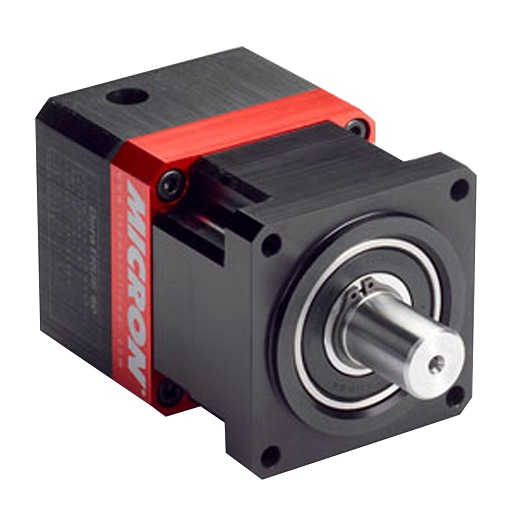

REGAL REXNORD D415 Speed Reducer 50:1

Product Description

The REGAL REXNORD D415 speed reducer is designed for efficient speed reduction in HVAC systems. It features a nominal ratio of fifty to one and is built from anodized aluminum for durability. The unit employs a planetary-spur gear system for reliable performance. Its dimensions are six point eight five three inches in length, three point five four three inches in width, and three point five four three inches in height.

• Constructed with anodized aluminum housing.
• Features a planetary-spur gear system for enhanced torque.
• Designed for direct mounting on various applications.

Product Highlights

This inline speed reducer is ideal for use in hydronic systems, providing optimized performance for HVAC technicians.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Name: REGAL REXNORD

Technical Specifications

• Reducer Type: Inline
• Nominal Ratio: 50:1
• Input Type: Hollow Shaft
• Output Type: Shaft
• Gearing: Planetary-Spur
• Manufacturer's Series: DT90
• Mounting Method: Direct Mounted
• Housing Material: Anodized Aluminum
• Overall Length: 6.853 inches
• Overall Width: 3.543 inches
• Bolt Hole Diameter: 0.256 inches
• Output Shaft Length: 1.417 inches
• Overall Height: 3.543 inches
• Output Shaft Diameter: 0.787 inches
