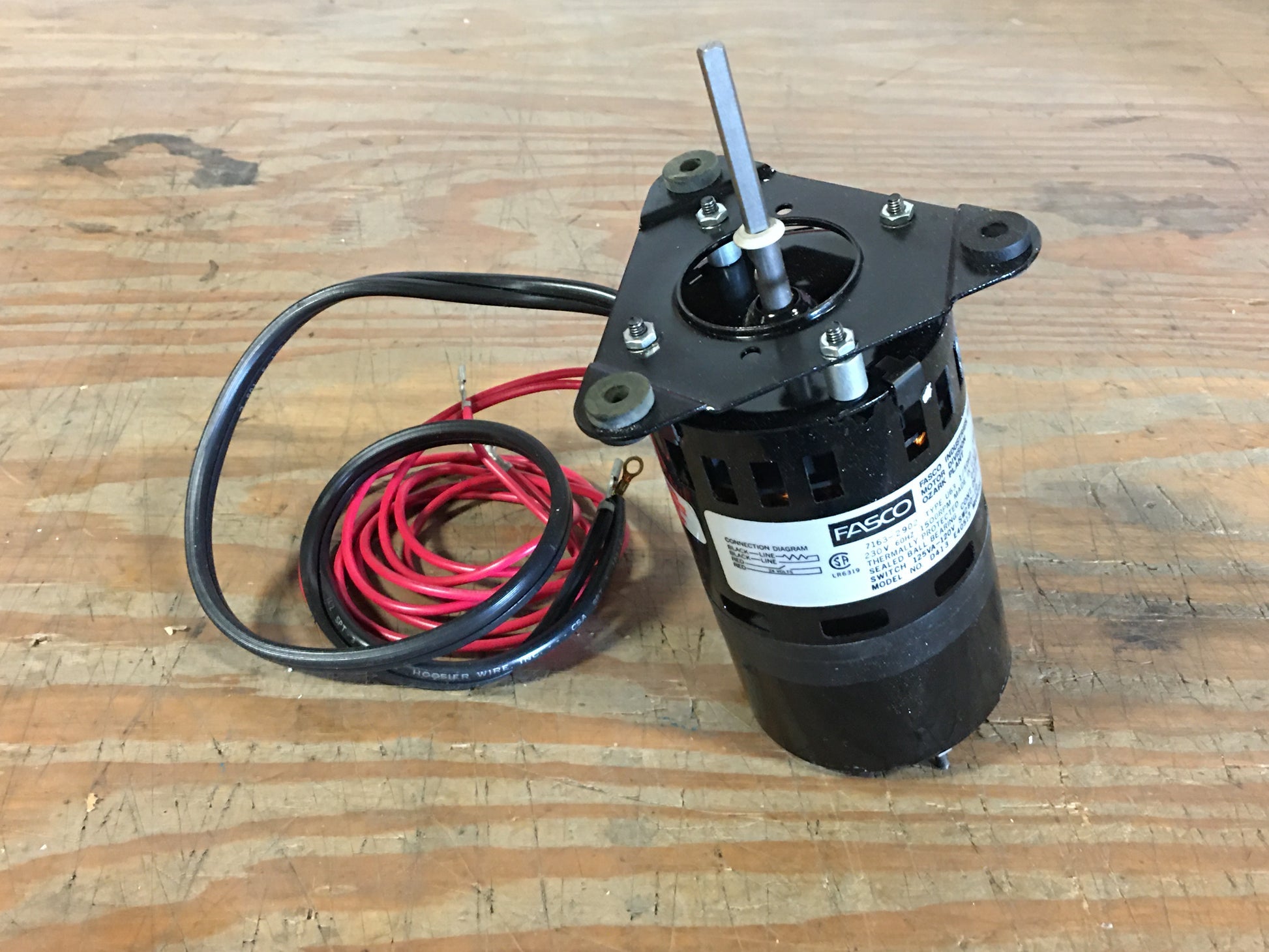

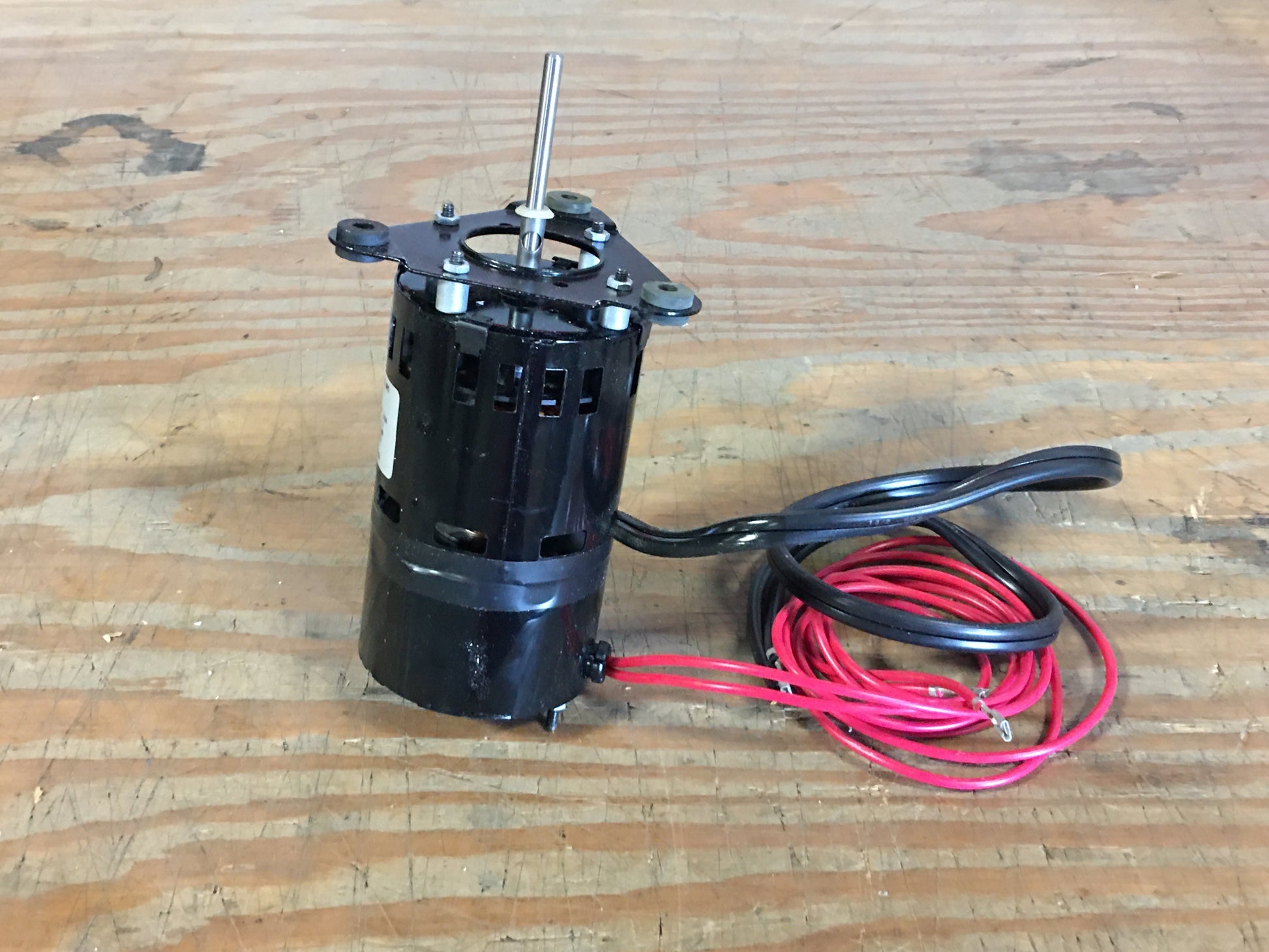

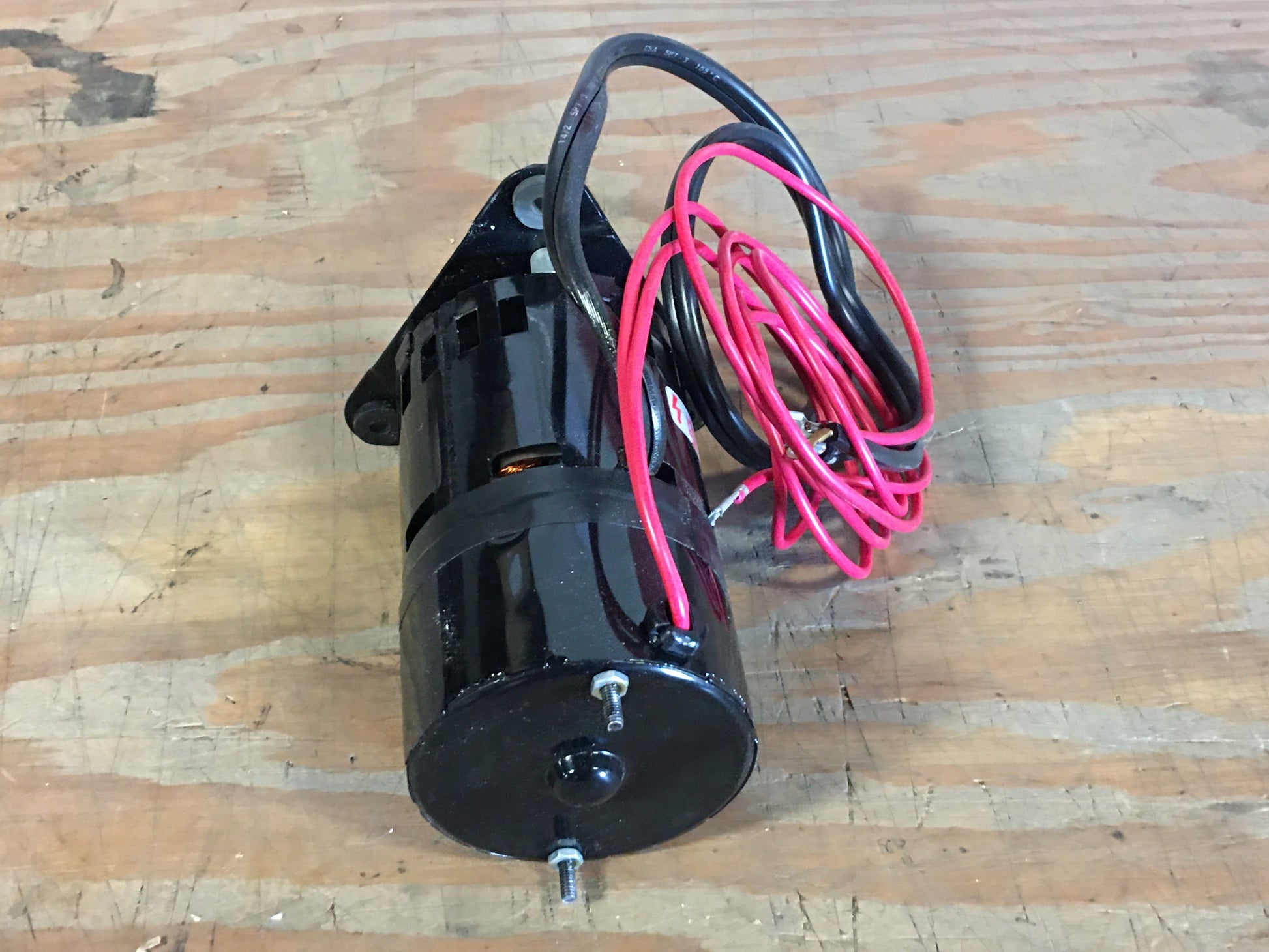

REGAL REXNORD D413 FASCO Fan and Blower Motor 1/20 HP

Product Description

The REGAL REXNORD D413 is a FASCO fan and blower motor suitable for general purpose applications. This motor operates at 115V and 60 Hz, providing 1/20 HP with a speed of 1500 RPM. It is designed with a totally enclosed, fan-cooled (TEFC) enclosure and includes Class B insulation for high ambient temperatures.

• Operates at 115V, 60 Hz, and 1500 RPM.
• Features thermally protected, totally enclosed fan cooled (TEFC) design.
• Includes extended studs for easy mounting.

Product Highlights

Ideal for HVAC and plumbing applications, the motor supports efficient airflow with a durable construction.

Product Information

Standard Information

• Country of Origin: Mexico
• UPC: 815585028550

Technical Specifications

• Phase: 1
• Output HP: 1/20 HP
• Output KW: 0.04 kW
• Voltage: 115 V
• Speed: 1500 RPM
• Frame Size: 3.3
• Enclosure: Totally Enclosed Fan Cooled
• Thermal Protection: Thermally Protected
• Efficiency: 30 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 1.70 A
• Duty: Air Over
• Insulation Class: B
• UL Listed: Recognized
• CSA Certified: Y
• CE Certified: N
• Number of Speeds: 1
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Number of Poles: 4
• Rotation: Clockwise Shaft End
• Mounting Type: Extended Studs
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Steel
• Shaft Type: Flat
• Overall Length: 6.64 inches
• Frame Length: 2.57 inches
• Shaft Diameter: 0.313 inches
• Shaft Extension: 2.30 inches
