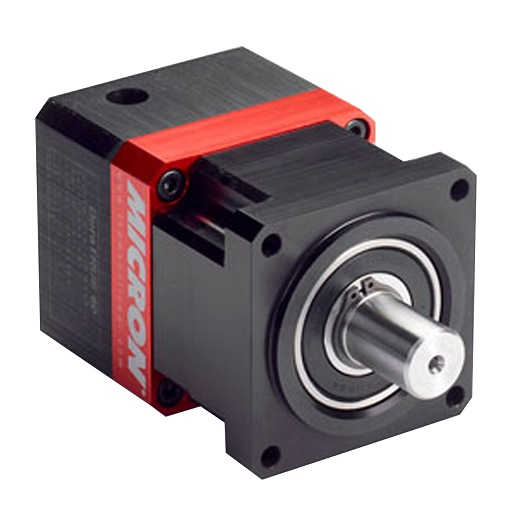

Regal Rexnord D407 Speed Reducer 40:1 Inline Replacement MPN D407

Product Description

The Regal Rexnord D407 speed reducer features a nominal gear ratio of forty to one. This inline speed reducer includes a hollow shaft input and a shaft output, utilizing a planetary-spur gear design for effective double reduction. Ideal for various applications, it is constructed from anodized aluminum and is suitable for direct mounting.

• Forty to one nominal gear ratio enhances speed reduction.
• Designed for direct mounting with an anodized aluminum housing.
• Planetary-spur gear arrangement ensures reliable performance.

Product Highlights

This speed reducer is built to accommodate diverse applications, optimizing mechanical efficiency while ensuring durability.

Product Information

Standard Information

• Brand: Regal Rexnord
• Reducer Type: Inline

Technical Specifications

• Nominal Ratio: 40:1
• Input Type: Hollow Shaft
• Output Type: Shaft
• Gearing: Planetary-Spur
• Manufacturer's Series: DT60
• Mounting Method: Direct Mounted
• Housing Material: Anodized Aluminum
• Output Shaft Length: 0.846 Inch | 21.5 Millimeter
• Overall Width: 2.4 Inch | 60.96 Millimeter
• Output Shaft Diameter: 0.63 Inch | 16 Millimeter
• Bolt Hole Diameter: 0.197 Inch | 5 Millimeter
• Overall Length: 4.96 Inch | 125.988 Millimeter
• Overall Height: 2.4 Inch | 60.96 Millimeter
• Nominal Max Output RPM: 43.8
