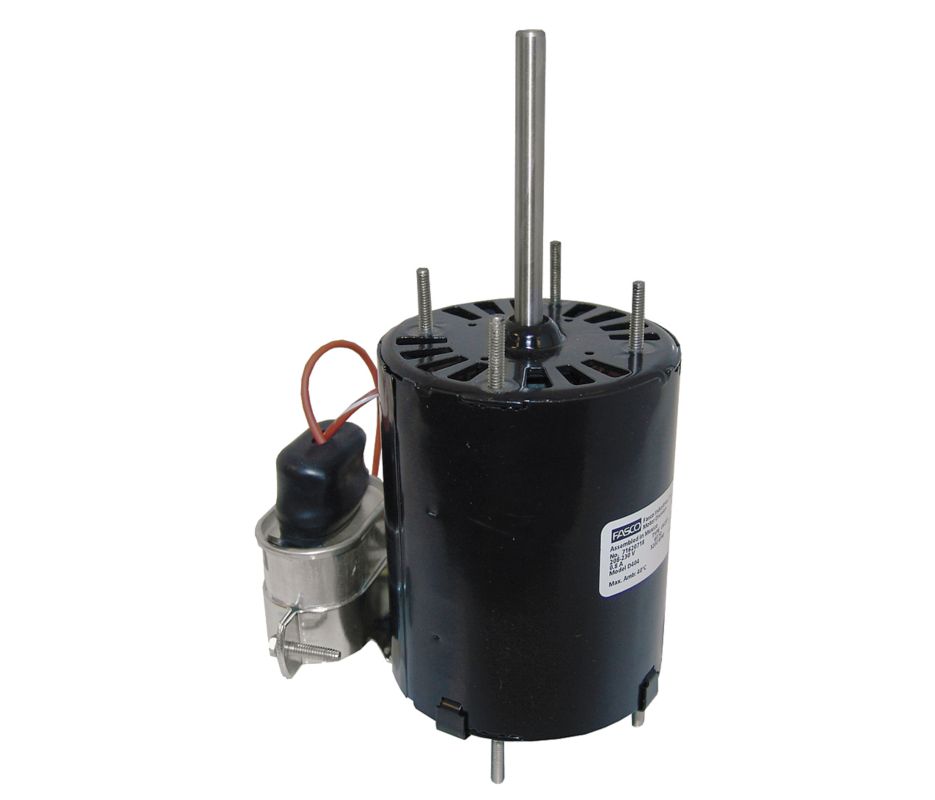

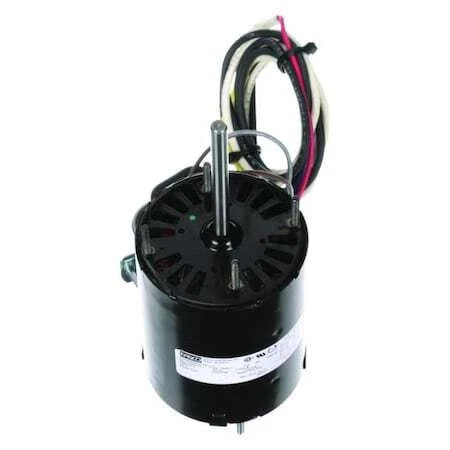

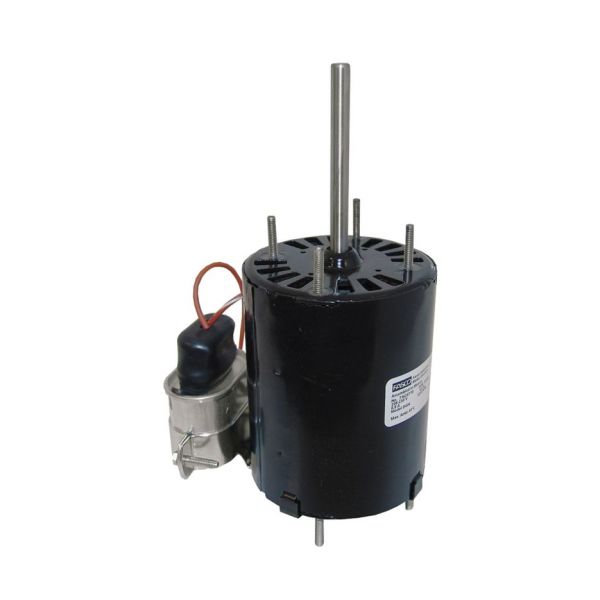

REGAL REXNORD D404 Capacitor-Start Motor 1/10 HP 208-230V AC

Product Description

The REGAL REXNORD D404 is a capacitor-start motor used primarily in HVAC systems. This motor works on 208-230V AC power and produces 1/10 horsepower with a rotation speed of three thousand two hundred RPM. Designed with a rolled steel frame and aluminum flange, it is built to last and suitable for tasks involving fans, blowers, and other HVAC components. Its compact design allows for simple installation and maintenance, making it a practical choice for trade professionals. The motor is engineered for quick starting, enhancing the efficiency of HVAC systems.

• Operates at three thousand two hundred RPM on 208-230V AC power.
• Constructed with a rolled steel frame and aluminum flange for durability.
• Ideal for powering fans and blowers in HVAC applications.

Product Highlights

The D404 motor is a reliable option for HVAC installations, featuring robust construction and efficient operation.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D404

Technical Specifications

• Item Number: D404
• Base RPM: 3200
• Current Type: AC
• Service Factor: 1.00
• Full Load Amps: 0.80
• Rated Load (HP): 1/10
• Weight: 4.73 lbs
• Width: 5.7 inches
• Length: 10.5 inches
