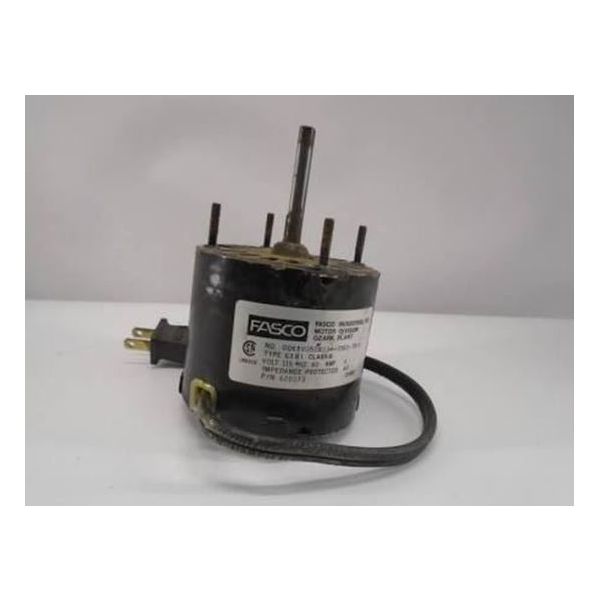

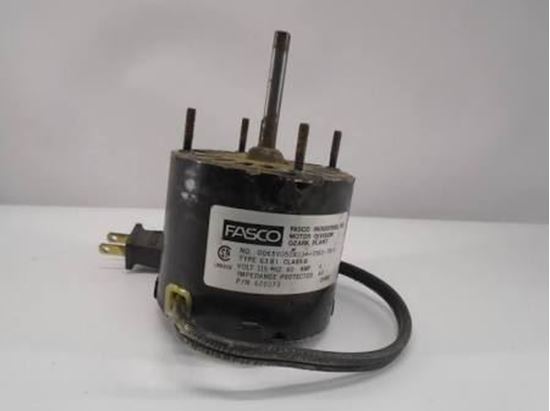

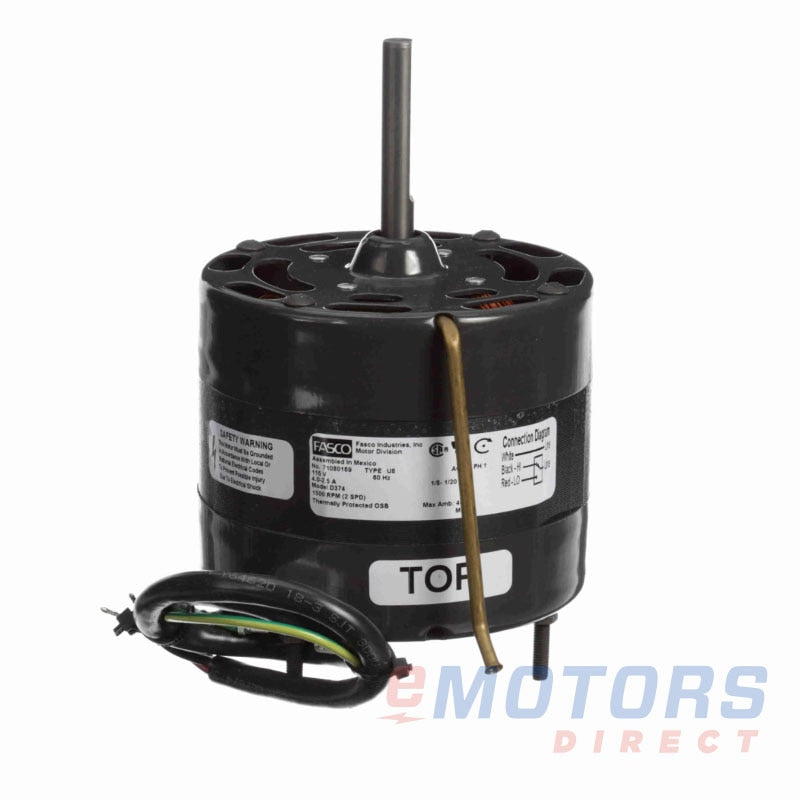

REGAL REXNORD D374 - Fasco Motor, 115V, 1/8 HP, 1500 RPM

Product Description

The REGAL REXNORD D374 is a Fasco motor tailored for air-over applications. This motor operates on a 115V power supply, delivering a rated output of 1/8 horsepower and a speed of 1500 RPM. It features a single-phase, 4-pole design with a frequency of 60 Hz.

• Operates on a 115V power supply, delivering 1/8 HP at 1500 RPM.
• Features sleeve bearings on both drive end and non-drive end.
• Approved by CSA and UL for safety and performance standards.

Product Highlights

The REGAL REXNORD D374 motor is built for efficiency in air-over systems. It works within ambient temperatures up to forty degrees Celsius and has a clockwise shaft end rotation.

Product Information

Standard Information

• Manufacturer: Regal Rexnord - Fasco
• MPN: D374

Technical Specifications

• Rated Motor Output Power: 1/8 HP
• Rated Motor Speed: 1500 RPM
• Rated Motor Voltage: 115V
• Rated Motor Current: 4.0-2.5 AMP
• Phase: 1
• Poles: 4
• Frequency: 60 Hz
• Frame: 4.4
• Enclosure: OAO
• Mounting: Stud
• C-Dimension: 6.62
• Insulation Class: A
• Rotation: CWSE
• Duty: Air Over
• Ambient Temp: 40°C
• DE Bearing: Sleeve
• NDE Bearing: Sleeve
• Shaft Diameter: 0.313 inches
• Shaft Length: 2.2 inches
• Agency Approvals: CSA & UL
