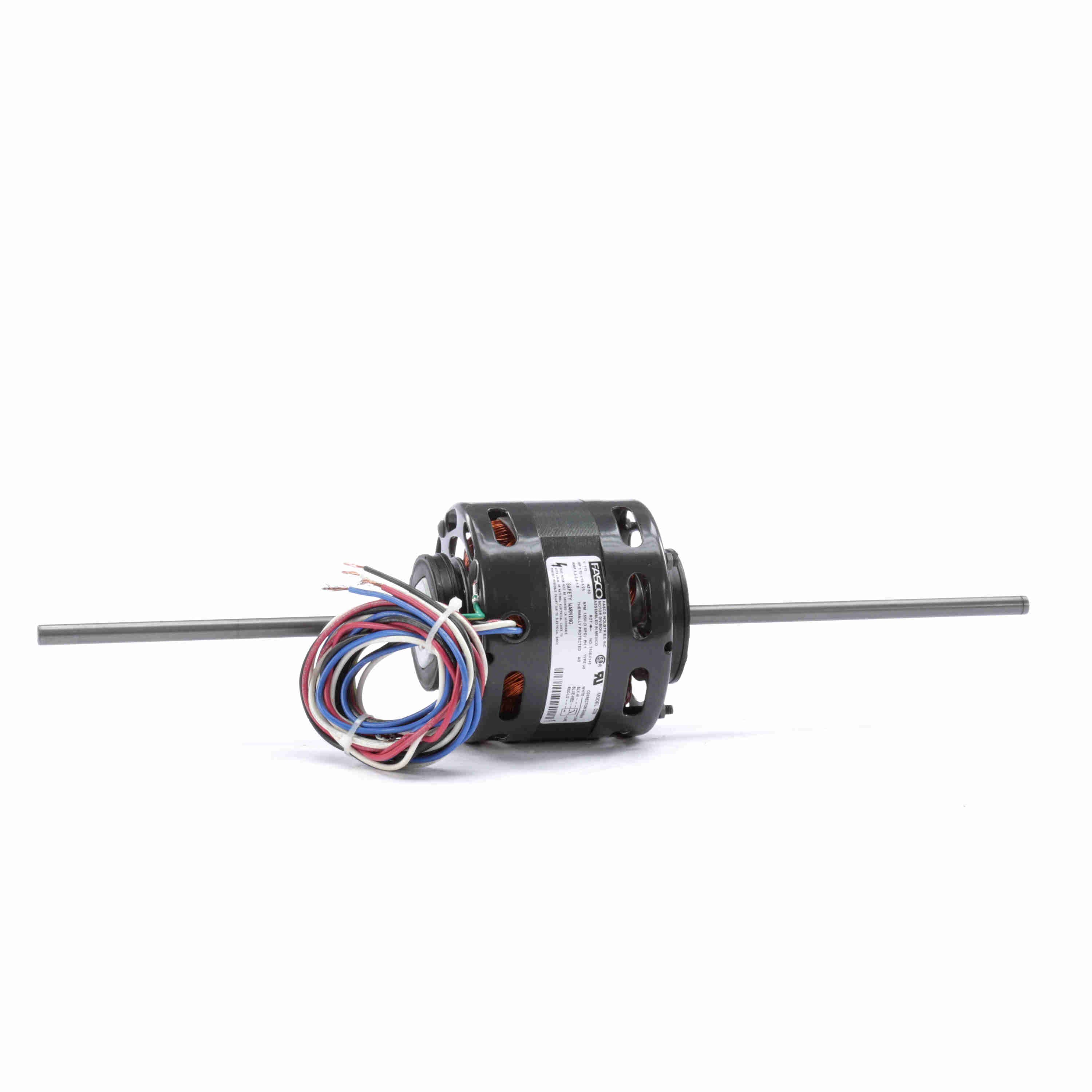

Regal Rexnord D336 Fan Coil Air Conditioner Motor

Product Description

The Regal Rexnord FASCO D336 is a fan coil motor suitable for air conditioning and heating applications. This motor operates at one hundred fifteen volts and reaches a speed of one thousand five hundred fifty RPM with three speed options.

• Designed for use in fan coils and air conditioning systems
• Thermal protection included
• Mounts easily with resilient rings

Product Highlights

This motor features a shaded pole design, which enhances its efficiency. It also has thermal protection for operational safety. The double shaft design includes both flat and resilient mounting rings for secure installation.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D336

Technical Specifications

• Phase: 1
• Output Power (HP): 1/10-1/15-1/25
• Output Power (kW): 0.07
• Input Voltage: 115 V
• Speed: 1550 RPM
• Service Factor: 1
• Frame Size: 4.4
• Enclosure: Open Air Over
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 3.5-2.4-1.8 A
• Duty: Air Over
• Insulation Class: A
• UL Listed: Yes
• CSA Certified: Yes
• CE Certified: No
• Number of Speeds: 3
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Number of Poles: 4
• Rotation: Reversible
• Mounting Type: Resilient Rings
• Drive End Bearing Type: Sleeve
• Opposite Drive End Bearing Type: Sleeve
• Shaft Type: Flat
• Overall Length: 18.51 inches
• Shaft Diameter: 0.375 inches
• Shaft Extension: 7.5 inches
