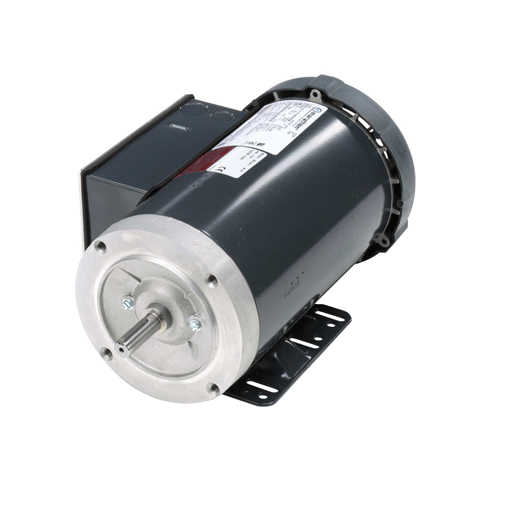

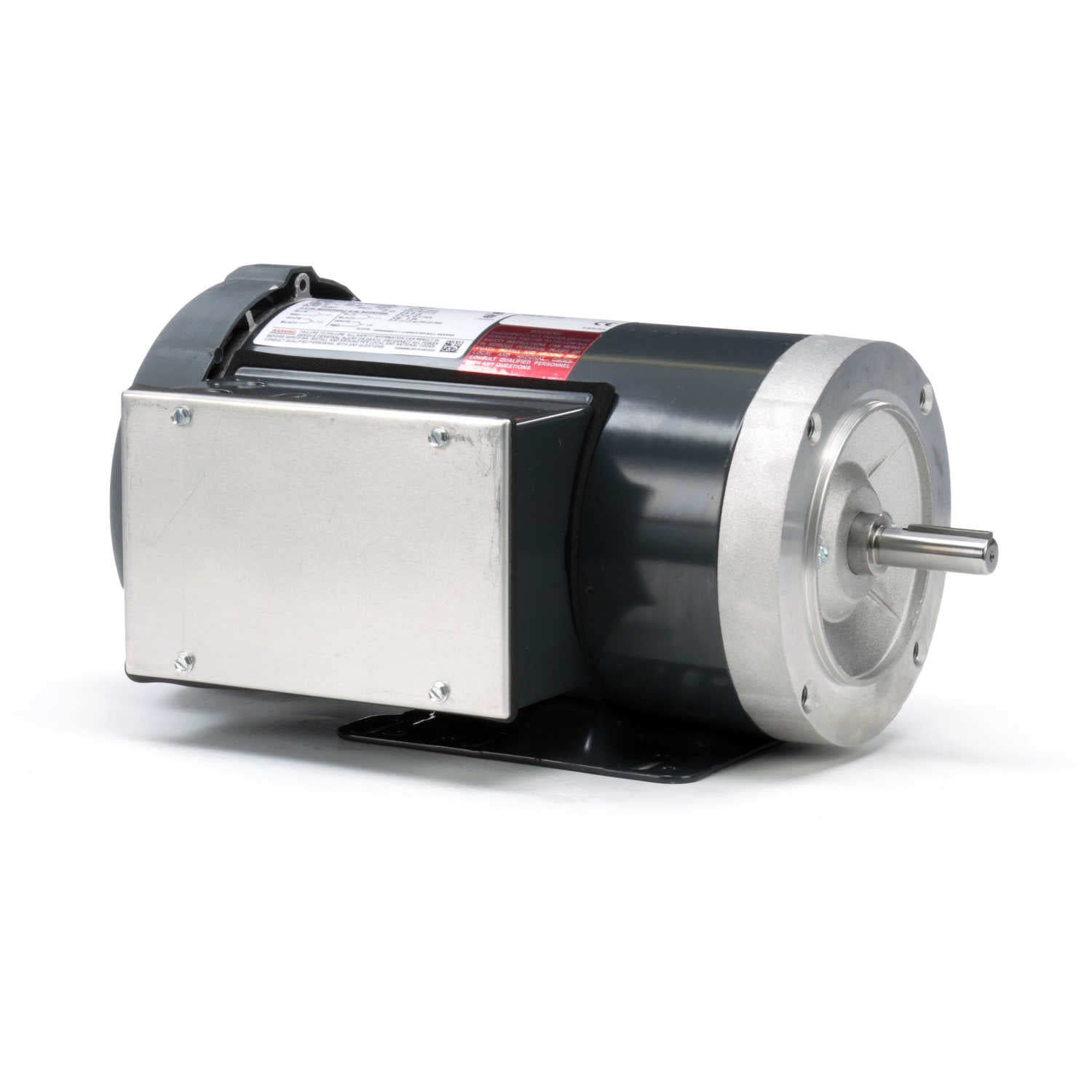

REGAL REXNORD D316 Marathon Electric 3 HP Motor

Product Description

The REGAL REXNORD D316 is a single-phase AC motor designed for various applications. This motor operates at 208 to 230 volts and 60 Hertz, delivering three horsepower at a synchronous speed of three thousand four hundred fifty RPM. It is built with a 56HC frame profile, ensuring compatibility with several mounting setups through a bolt-on base.

• Operates efficiently at three thousand four hundred fifty RPM with a capacitor start/capacitor run mechanism.
• Features a robust combination base with multiple mounting holes for easy installation.
• UL and CSA certified, making it suitable for compliance in various industrial settings.

Product Highlights

This motor is suitable for both horizontal and vertical installations, with options for brake kits and drip cover kits.

Product Information

Standard Information

• Brand: REGAL REXNORD
• MPN: D316

Technical Specifications

• Horse Power: 3 HP
• Frame Size: 56HC
• Hertz: 60 Hz
• Sync RPM: 3450 RPM
• Voltage: 208-230 V
• Current: AC
• Phase: 1-Phase
• Enclosure: TEFC
• Frame Profile: NEMA
• Mounting Method: Bolt-On
• Efficiency: 84%
• Overall Length: 9.56 inches
• Shaft Diameter: 0.625 inches
• Weight: 51 lbs
• Output KW: 2.2
• Output RPM: 3450
• Enclosure IEC: IP43
• Mount NEMA: C-Face with Base
• Mount Arrangement: F1
• Electrical Type: Capacitor Start/Run
• Service Factor: 1.15
• Duty: Continuous
• Rotation: Selective Counterclockwise
• Full Load Amps: 13.1-11.8 FLA
• Material: Rolled Steel
• Ambient Temperature: 40 °C
