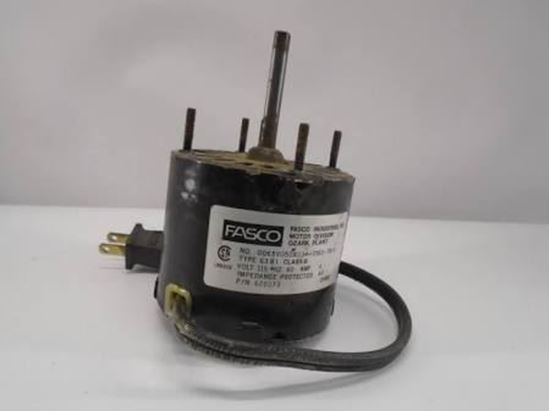

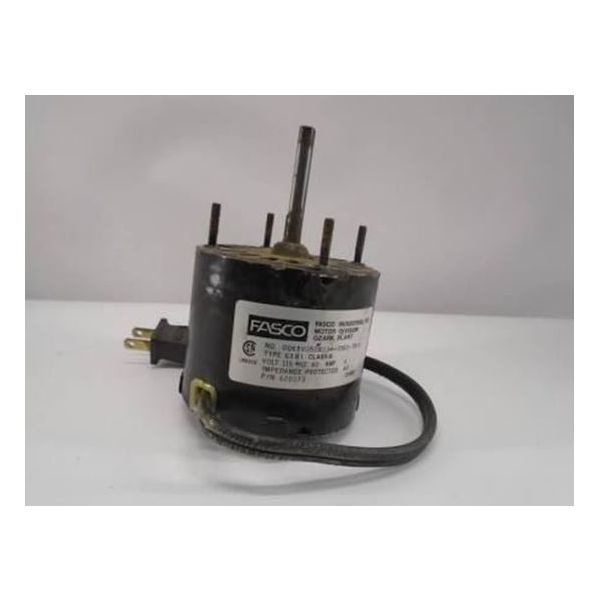

Regal Rexnord D294 Fasco Motor - 1/10 HP, 115V, 1050 RPM

Product Description

The Regal Rexnord D294 is a single-phase motor ideal for continuous duty applications. This motor operates at 115 volts and provides an output power of one-tenth of a horsepower at a speed of one thousand fifty revolutions per minute. It comes with five selectable speeds, offering flexibility for various tasks. The motor features a 42 frame and is designed with an open air over enclosure, making it suitable for many environments.

• Operates at 115 volts with a rated output of 1/10 HP at 1050 RPM.
• Offers five selectable speeds and comes with a run capacitor.
• Designed for continuous operation in ambient temperatures up to 40 degrees Celsius.

Product Highlights

This motor is equipped with sleeve bearings and is suitable for applications requiring reliability and consistency over long operational periods.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D294

Technical Specifications

• Rated Motor Output Power: 1/10 HP
• Rated Motor Speed: 1050 RPM
• Rated Motor Voltage: 115V
• Rated Motor Current: 1.3/1.0/0.7/0.6/0.5 AMP
• Phase: 1
• Poles: 6
• Frequency: 60 Hz
• Run Capacitor: 6 Mfd-370 Volts
• Frame: 42
• Enclosure: OAO
• Mounting: Stud
• Approximate Weight: 10 lbs
• C-Dimension: 24.68
• Insulation Class: B
• Rotation: CWLE
• Duty: Continuous
• Ambient Temp: 40 degrees C
• DE Bearing: Sleeve
• NDE Bearing: Sleeve
• Shaft Diameter: 0.375 inches
• Shaft Length: 10.75 inches
• Agency Approvals: CSA & UL
• Country of Origin: Mexico
• Warranty: 1 Year
• Rated Motor Output Power (kW): 0.07 kW
