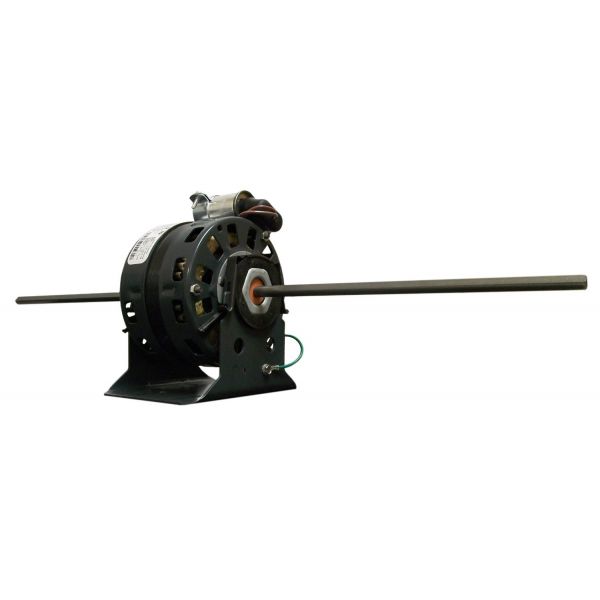

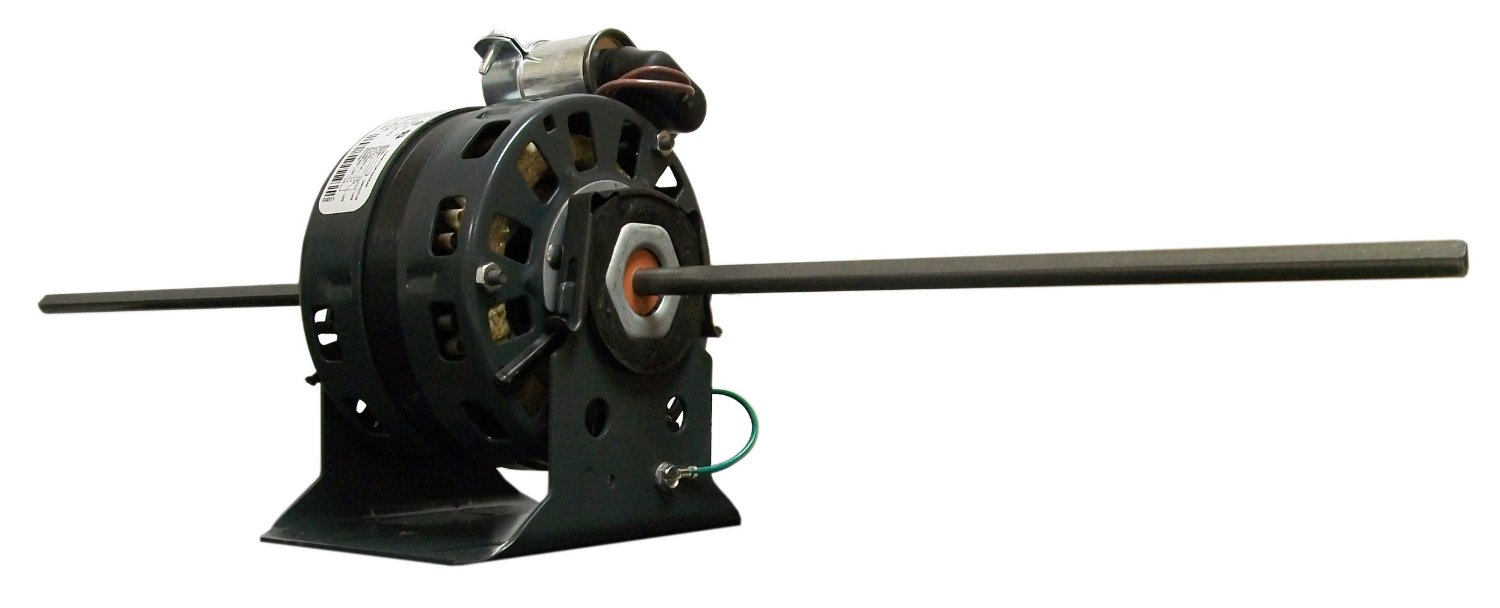

Regal Rexnord D291 Motor - 1/10 HP, 4-Speed, 115V, Double Shaft

Product Description

The Regal Rexnord D291 is a reliable motor suitable for HVAC/R applications, specifically designed for fan coil and room air conditioning systems. This motor operates on 115V single-phase power at a frequency of sixty hertz. The D291 features a permanent split capacitor design, enabling four distinct speed settings. It ranges in horsepower from one-tenth to one-fortieth, with various amperage ratings from 2.2 to 0.7 A. The motor is housed in a 42 Frame and has an open air over enclosure for effective cooling. It also features a resilient base for sturdy mounting. This unit uses a sleeve bearing and supports CWLE rotation. The shaft has a diameter of one-half inch and a length of ten and three-quarters inches.

• Designed for HVAC/R applications.
• Operates at four speeds.
• Features a double shaft measuring one-half inch in diameter and ten and three-quarters inches long.

Product Highlights

Product Information

Standard Information

• Motor Application: Fan Coil/Room Air Conditioner Motor
• Features: Permanent Split Capacitor Motor

Technical Specifications

• Horsepower: 1/10 to 1/40
• Voltage: 115 V
• Amperage: 2.2/1.4/1/0.7 A
• Frequency: 60 Hz
• Phase: 1 ph
• Speed: 4 Speed
• Enclosure: Open Air Over
• Frame: 42 Frame
• Shaft: 1/2 in Dia x 10-3/4 in L
• Rotation: CWLE
• Service Factor: 1
• Bearing: Sleeve Bearing
• Mounting: Resilient Base
• Temperature: 40 deg Celsius
• Insulation Class: Class B
• Dimensions: 5 in Dia x 24.68 in L x 6 in W
• Manufacturer Name: Regal Rexnord - Fasco
• Product Number: D291
• OEM Part Number: D291
• Weight: 10.67 lbs
