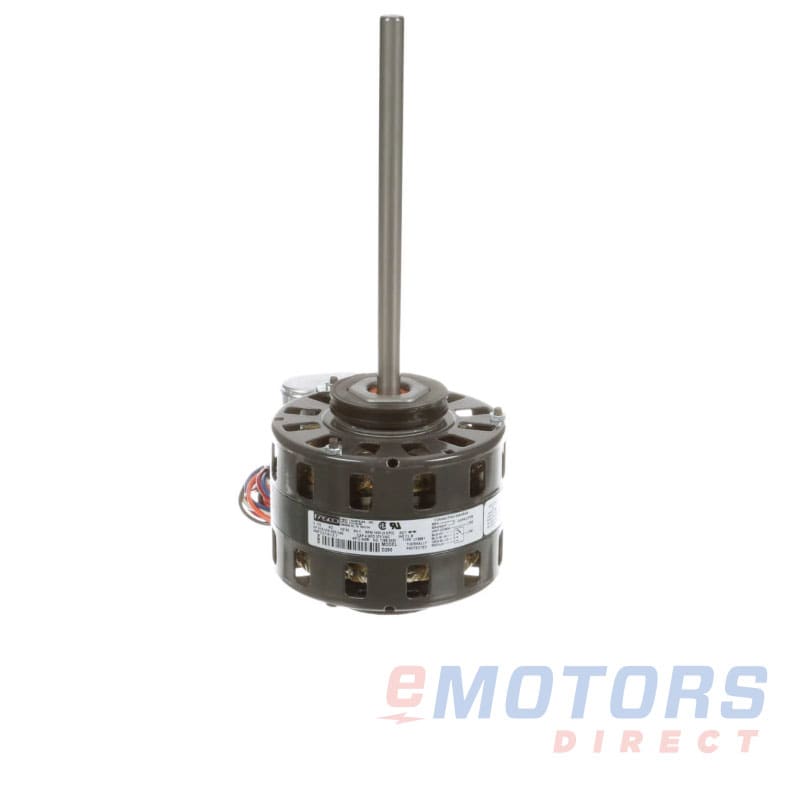

REGAL REXNORD D290 Furnace Motor 1/10 HP 115V

Product Description

The REGAL REXNORD D290 is a furnace motor with a power rating of 1/10 HP, designed to operate at 115V and 60 Hz. This motor can spin at a speed of 1050 RPM and features reversible rotation, making it suitable for multiple applications. Built for continuous duty, it operates effectively within a maximum ambient temperature of 40°C. The motor includes a run capacitor rated at 4 Mfd-370 Volts to support its functionality.

• Operates at 115V and 60 Hz, delivering 1/10 HP at 1050 RPM.
• Reversible rotation allows flexibility for various setups.
• Engineered for continuous operation with sleeve bearings.

Product Highlights

This motor is ideal for constant duty applications requiring reliable performance. Its versatile design and specifications make it an essential component for heating systems.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D290

Technical Specifications

• Rated Motor Output Power: 1/10 HP
• Rated Motor Speed: 1050 RPM
• Rated Motor Voltage: 115V
• Rated Motor Current: 2.2/1.4/1.0/0.7 AMP
• Phase: 1
• Poles: 6
• Service Factor: 1
• Frame: 42
• Enclosure: OAO
• Mounting: Resilient
• Approximate Weight: 8.6 lb
• C-Dimension: 12.59
• Insulation Class: B
• Rotation: Reversible
• Duty: Continuous
• Ambient Temperature: 40°C
• Shaft Diameter: 0.5 inches
• Shaft Length: 8.5 inches
